Description

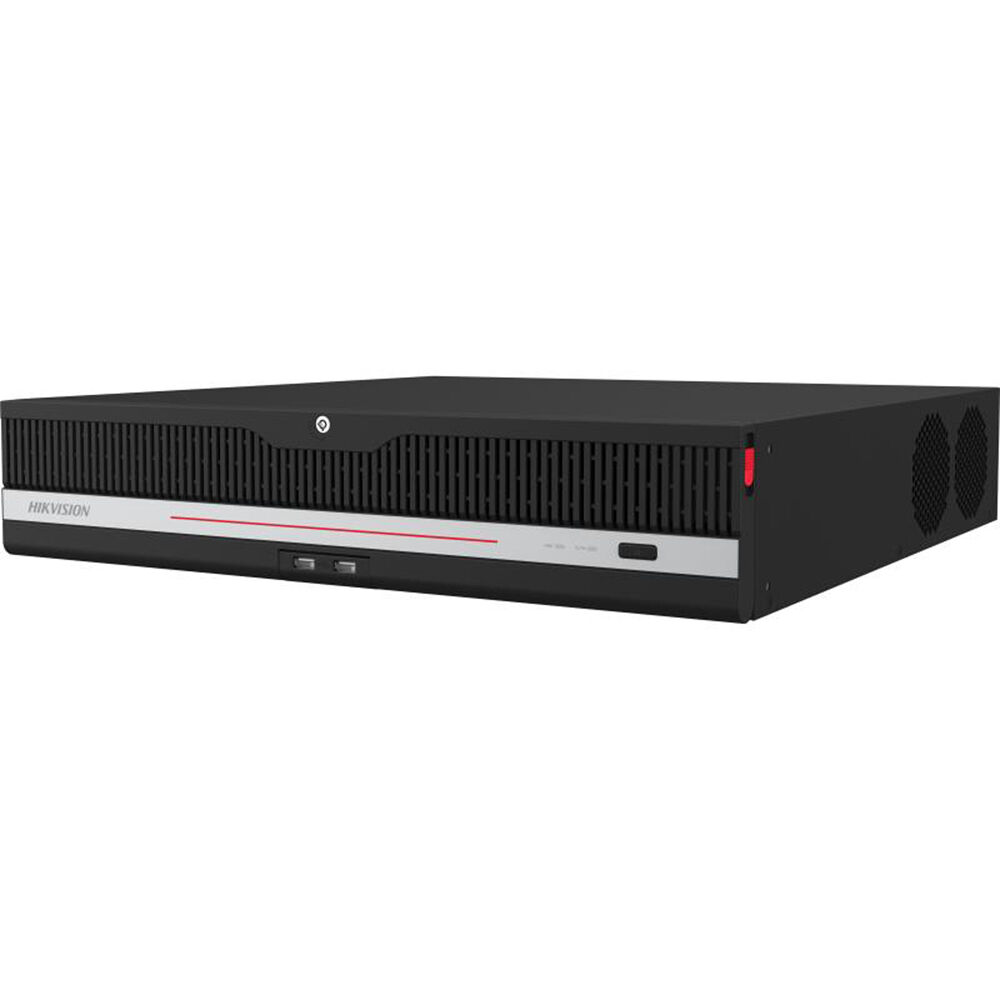

Hikvision IDS-9632NXI-M8 Overview
Record from and manage up to 32 cameras with the DeepinMind iDS-9632NXI-M8/X 32-Channel 8K NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with eight SATA ports that each support an HDD up to 14TB for a maximum capacity of 112TB (HDDs available separately). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. Compliance with ONVIF profiles G and S enables interoperability with a wide range of IP cameras. Two HDMI and two VGA ports enable video output to an external monitor at up to 8K resolution (HDMI output 1 only).
Recording resolution up to 32MP
Dual-stream recording saves bandwidth
TLS encryption for secure transmission stream
16-channel synchronous playback
Smooth streaming technology
Hik-Connect and DDNS enables seamless network management
Supports web access without plug-in
Supports facial recognition, face picture comparisons, video structuralization, and throwing objects from building analytics
Face Detection & Analysis
Database of up to 32 libraries and 100,000 faces
Up to 10,000 face pictures in stranger library
32-channel face pictures comparison alarm
48 face picture comparisons per second
Smart & POS Functions
Supports multiple VCA (Video Content Analytics) events
Configurable camera smart functions include VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (automatic number-plate recognition), and people counting
POS information overlay on live view and playback
POS-triggered recording and alarm
UPC: 842571150414
Items Included
- Hikvision DeepinMind iDS-9632NXI-M8/X 32-Channel 8K NVR (No HDD)
- Limited 60-Month Manufacturer Warranty
Additional Resources
Hikvision IDS-9632NXI-M8 Specs
Key Specs
| Number of Channels |
32
|
| Playback Resolution |
HDMI (Output 1):
7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA (Output 1): 1920 x 1080 at 60 Hz VGA (Output 2): 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 24 MP, 32 MP
|
| PTZ Support |
Yes
|
| Throughput |
320 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| A/V I/O |
2x HDMI Output
2x VGA Output 1x BNC CVBS Output (1 V p-p, 75 Ohm) 1x RCA Audio Output (1 Kilohm, Linear) 1x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication I/O |
2x RJ45 Gigabit Ethernet
1x RS-485 (Full-Duplex) 1x RS-232 1x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Hik-Connect |
General
| Number of Channels |
32
|
| Playback Resolution |
HDMI (Output 1):
7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA (Output 1): 1920 x 1080 at 60 Hz VGA (Output 2): 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 24 MP, 32 MP
|
| PTZ Support |
Yes
|
| Throughput |
320 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| IP Camera Support |
32
|
| Decoding Resolution |
2 Channels:
24 MP, 32 MP at 30 fps 4 Channels: 12 MP at 20 fps 8 Channels: 8 MP at 25 fps 16 Channels: 4 MP at 30 fps 32 Channels: 1080p at 30 fps |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
2x HDMI Output
2x VGA Output 1x BNC CVBS Output (1 V p-p, 75 Ohm) 1x RCA Audio Output (1 Kilohm, Linear) 1x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication I/O |
2x RJ45 Gigabit Ethernet
1x RS-485 (Full-Duplex) 1x RS-232 1x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
8x SATA
1x eSATA |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Remote Connections |
128
|
| Network Protocols |
DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, ONVIF, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP, iSCSI
|
Compatibility
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+
|
Computing
| Optical Drive |
No
|
System
| Installed Drive |
No
|
| Max Capacity Supported |
14 TB (Each Drive)
112 TB (Total) |
| Number of Bays |
8x 3.5" Internal
|
| RAID Support |
Yes, RAID 0/1/5/6/10
|
Software System Requirements
| Mobile App Compatible |
Yes: Android & iOS
App Name: Hik-Connect |
| Web Browser Support |
Chrome, Edge, Firefox, Internet Explorer, Safari
|
Notifications
| Alarm I/O |
16x Input
9x Output |
| Event Trigger |
Analytics
|
System Functions
| Search Modes |
Face
|
| Recording Modes |
Alarm, Analytics
|
| Dual Streaming |
Yes
|
| Multi-Screen Configuration |
2 (Primary Display, Secondary Display)
|
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
50 W (Without HDD)
|
| Power Supply Type |
External
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 90% Humidity
|
| Certifications |
CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, BIS
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
17.5 x 18.3 x 3.7" / 445.0 x 465.0 x 93.0 mm
|
| Weight |
22 lb / 10 kg (Without HDD)
|
Packaging Info
| Package Weight |
23.49 lb
|
| Box Dimensions (LxWxH) |
22.8 x 22.4 x 8.5"
|
