Description

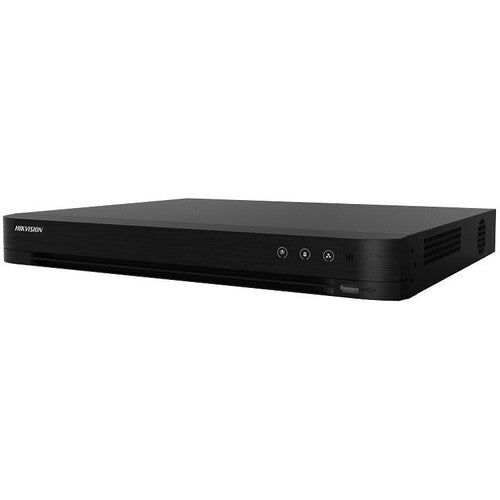

Hikvision IDS-7204HQHI-M1/S Overview
Record from and manage up to four local analog cameras at resolutions up to 2MP with the AcuSense IDS-7204HQHI-M1/S TurboHD 4-Channel 6MP Analog HD DVR (No HDD) from Hikvision. This DVR instead supports up to two IP cameras if Enhanced IP Mode is enabled and no analog cameras are used. It is equipped with a SATA port that supports HDD storage up to 10TB (available separately). H.265+, H.264+, H.265, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This DVR features motion detection and perimeter protection with human/vehicle analysis. It has VGA and HDMI video outputs to connect to external monitors.
Hikvision IDS-7204HQHI-M1/S Specs
| Signal | AHD, Analog, HD-CVI, HD-TVI, IP |
| Number of Channels | 4 |
| Playback Resolution | HDMI, VGA: 1080p at 60 Hz CVBS: 704 x 576 (PAL) 704 x 480 (NTSC) |
| Recording Resolution | 1080p |
| PTZ Support | Yes |
| Bit Rate | 32 kb/s to 6 Mb/s |
| IP Camera Support | 2 |
| Dual Streaming | Yes |
| Encoding Resolution | Main: 1080p, 960p, 720p, 4CIF, CIF, VGA, WD1, 3 MP, 4 MP Sub Stream: 4CIF, CIF, WD1 |
| 2-Way Audio | Yes |
| A/V Inputs/Outputs | AHD, Analog, CVBS, Coaxitron, HD-CVI, HD-TVI: 4 x BNC (1 V p-p, 75 Ohm) 1 x HDMI 1 x VGA 1 x RCA Audio Input (2 V p-p, 1 Kilohm) 1 x RCA Audio Output (1 V p-p, 1 Kilohm, Linear) |
| Communication Inputs/Outputs | 1 x RJ45 10/100 Mb/s Ethernet 1 x RS-485 (Half-Duplex) 1 x USB-A 2.0 (Front) 1 x USB-A 2.0 (Rear) |
| Audio Inputs/Outputs | 1 Input 1 Output |
| System Connection | 1 x SATA |
| Wi-Fi | Yes |
| Remote Connections | 32 |
| Network Protocols | DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI |
| Max Frame Rate | 30 fps (4 MP) |
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | G.711U |
| Installed Drive | None |
| Max Capacity Supported | 10 TB (Total) 10 TB (Each Drive) |
| Recording Modes | Analytics, Motion |
| Search Modes | Smart Search |
| Event Trigger | Analytics, Motion |
| Power Consumption | Without HDD: 12 VDC at 1.5 A (18 W) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Built-In Display | None |
| Dimensions (W x D x H) | 12.4 x 9.5 x 1.8" / 315.0 x 242.0 x 45.0 mm |
| Weight | 2.56 lb / 1.16 kg (Without HDD) |
| Package Weight | 3.73 lb |
| Box Dimensions (LxWxH) | 16.8 x 12 x 3.4" |
