Description

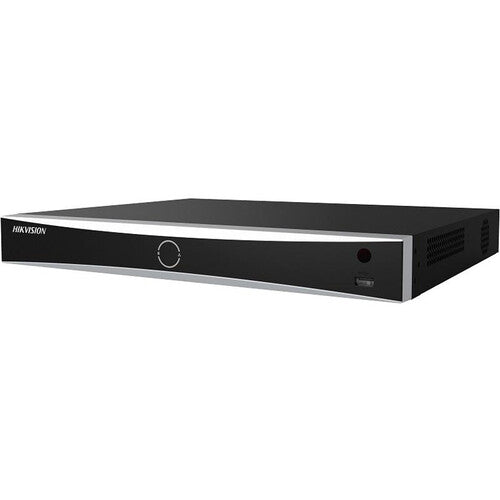

Hikvision DS-7616NXI-K2/16P Overview
Record from and manage up to 16 cameras with the AcuSense DS-7616NXI-K2/16P 16-Channel 12MP NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 12MP. It is equipped with two SATA ports that each support an HDD up to 10TB, for a maximum capacity of 20TB (HDDs available separately). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. AcuSense technology provides vehicle and human detection while filtering out false video content analysis alarms.
This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution.
Recording resolution up to 12MP
H.265+, H.265, H.264+, and H.264 video compressions
TLS encryption for secure transmission stream
1 x VGA and 1 x HDMI outputs
HDD storage expandable to 20TB
16-channel synchronous playback
1000M RJ45 self-adaptive Ethernet port
2 x USB 2.0
4 x alarm inputs and 1 x alarm output
CE and FCC certified
Smart Functions
Motion Detection 2.0 for accurate human and vehicle analysis (16 channels)
Smart search for selected video area
Smart playback improves playback efficiency
Face detection and analytics include: face picture comparison, human face capture, and face picture search
Up to 16 face picture libraries, along with up to 20,000 face pictures in total
1-channel human face capture
4-channel face picture comparison alarm
UPC: 842571145052
Hikvision DS-7616NXI-K2/16P Specs
General
| Number of Channels | 16 |
| Playback Resolution | HDMI: 3840 x 2160 at 30 Hz 2560 x 1440 at 60 Hz VGA: 1920 x 1080 at 60 Hz |
| Recording Resolution | 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP |
| Throughput | 160 Mb/s (Incoming) 160 Mb/s (Outgoing) |
| IP Camera Support | 16 |
| Decoding Resolution | 1 Channel: 12 MP at 30 fps 2 Channels: 8 MP, 12 MP at 30 fps 3 Channels: 8 MP at 30 fps 4 Channels: 4 MP at 30 fps 6 Channels: 4 MP at 30 fps 8 Channels: 1080p at 30 fps 12 Channels: 1080p at 30 fps |
| 2-Way Audio | Yes |
Connectivity
| A/V I/O | 1 x HDMI 1 x VGA 1 x RCA Audio Output (2 V p-p, 1 Kilohm) 1 x RCA Audio Input (1 Kilohm, Linear) |
| Communication Inputs/Outputs | 1 x RJ45 Gigabit Ethernet 16 x RJ45 10/100 Mb/s Ethernet PoE 2 x USB-A 2.0 |
| Audio Inputs/Outputs | 1 Input 1 Output |
| System Connection | 2 x SATA |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, TLS, UPnP, iSCSI |
Compatibility
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | AAC, G.711A, G.711U, G.722, G.726 |
| Supported IEEE Standards | 802.3af, 802.3at |
Computing
| Optical Drive | None |
System
| Installed Drive | None |
| Max Capacity Supported | 10 TB (Each Drive) 20 TB (Total) |
| Number of Bays | 2 x Internal |
Notifications
| Alarm Inputs/Outputs | 4 Inputs 1 Output |
| Event Trigger | Analytics, Motion |
System Functions
| Search Modes | Smart Search |
| Recording Modes | Analytics |
| Fisheye Dewarping | None |
Electrical
| Power Consumption | 15 W (Without HDD) |
| Power Supply Type | External |
| PoE Power Budget | 200 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
Physical
| Built-In Display | None |
| Certifications | CE, FCC *as per Manufacturer |
| LED Indicators | Yes |
| Dimensions (W x D x H) | 15.2 x 12.4 x 2.0" / 385.0 x 315.0 x 52.0 mm |
| Weight | 6.6 lb / 3 kg (Without HDD) |
Packaging Info
| Package Weight | 7.79 lb |
| Box Dimensions (LxWxH) | 17.5 x 15.9 x 5.4" |
Hikvision DS-7616NXI-K2/16P Reviews
