Description

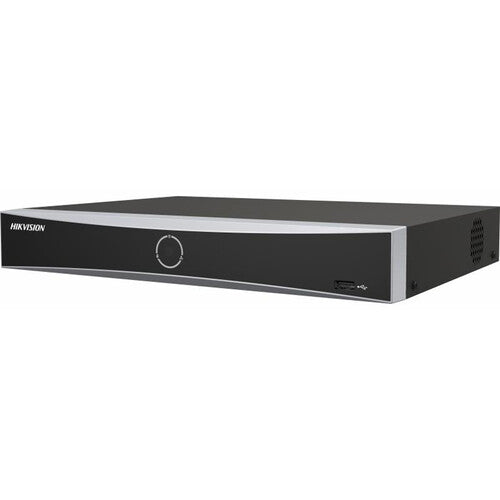

Hikvision DS-7604NXI-K1/4P Overview
Record from and manage up to 4 cameras with the AcuSense DS-7604NXI-K1/4P 4-Channel 12MP NVR with 1TB HDD from Hikvision. This NVR supports IP cameras up to 12MP. It is equipped with a SATA port that supports an HDD up to 10TB (1TB preinstalled). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. AcuSense technology provides vehicle and human detection while filtering out false video content analysis alarms.
This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution.
Recording resolution up to 12MP
H.265+, H.265, H.264+, and H.264 video compressions
TLS encryption for secure transmission stream
1 x VGA and 1 x HDMI outputs
HDD storage expandable to 10TB
4-channel synchronous playback
1000M RJ45 self-adaptive Ethernet port
2 x USB 2.0
Smart Functions
Motion Detection 2.0 for accurate human and vehicle analysis (4 channels)
Smart search for selected video area
Smart playback improves playback efficiency
Face detection and analytics include: face picture comparison, human face capture, and face picture search
Up to 16 face picture libraries, along with up to 20,000 face pictures in total
1-channel human face capture
2-channel face picture comparison alarm
UPC: 842571145458
In the Box
- Hikvision AcuSense DS-7604NXI-K1/4P 4-Channel 12MP NVR with 1TB HDD
- Limited 3-Year Manufacturer Warranty
Hikvision DS-7604NXI-K1/4P Specs
General
| Number of Channels | 4 |
| Playback Resolution | HDMI: 3840 x 2160 at 30 Hz 2560 x 1440 at 60 Hz VGA: 1920 x 1080 at 60 Hz |
| Recording Resolution | 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP |
| Throughput | 40 Mb/s (Incoming) 80 Mb/s (Outgoing) |
| IP Camera Support | 4 |
| Decoding Resolution | 1 Channel: 8 MP, 12 MP at 30 fps 2 Channels: 8 MP at 30 fps 3 Channels: 4 MP at 30 fps 4 Channels: 4 MP at 30 fps |
| 2-Way Audio | Yes |
Connectivity
| A/V I/O | 1 x HDMI 1 x VGA 1 x RCA Audio Output (2 V p-p, 1 Kilohm) 1 x RCA Audio Input (1 Kilohm, Linear) |
| Communication Inputs/Outputs | 1 x RJ45 Gigabit Ethernet 4 x RJ45 10/100 Mb/s Ethernet PoE 2 x USB-A 2.0 |
| Audio Inputs/Outputs | 1 Input 1 Output |
| System Connection | 1 x SATA |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, TLS, UPnP, iSCSI |
Compatibility
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | AAC, G.711A, G.711U, G.722, G.726 |
| Supported IEEE Standards | 802.3af, 802.3at |
Computing
| Optical Drive | None |
System
| Installed Drive | 1 TB Hard Drive |
| Max Capacity Supported | 10 TB (Total) |
| Number of Bays | 1 x Internal |
Software System Requirements
| Mobile App Compatible | Yes: Android & iOS App Name: Hik-Connect *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Notifications
| Alarm Connections | None |
| Event Trigger | Analytics, Motion |
System Functions
| Search Modes | Smart Search |
| Recording Modes | Analytics |
| Fisheye Dewarping | None |
Electrical
| Power Consumption | 10 W (Without HDD) |
| Power Supply Type | External |
| PoE Power Budget | 50 W |
| DC Input Power | 48 VDC at 1.35 A |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
Physical
| Built-In Display | None |
| Certifications | CE, FCC *as per Manufacturer |
| LED Indicators | Yes |
| Dimensions (W x D x H) | 12.6 x 9.4 x 1.9" / 320.0 x 240.0 x 48.0 mm |
| Weight | 2.2 lb / 1 kg (Without HDD) |
Packaging Info
| Package Weight | 5.415 lb |
| Box Dimensions (LxWxH) | 17.3 x 11.7 x 3.3" |
