Description
HighPoint 3720C Overview
- 1Description
- 2Key Benefits
- 3Suggested Applications
- 4Feature Highlights

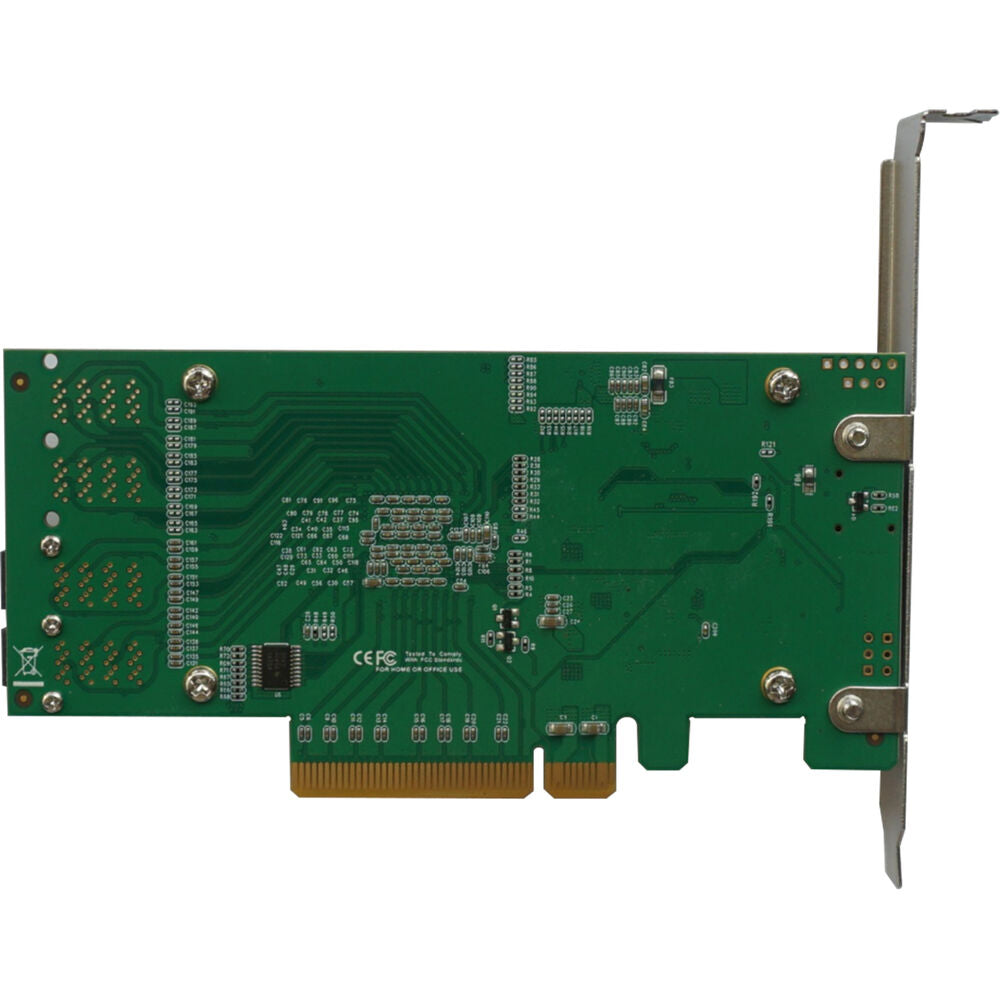

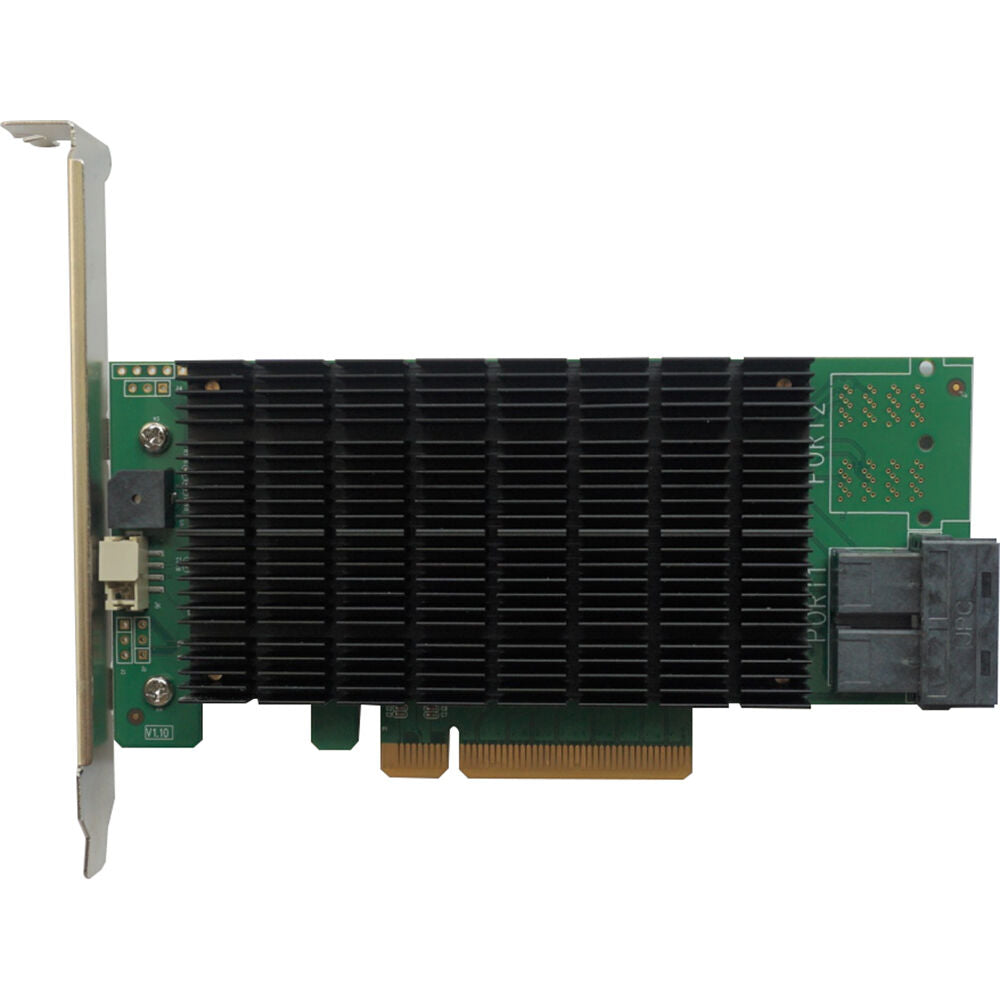

Designed to maximize the uptime and accessibility of RAID storage, the RocketRAID 3720C PCIe Host Bus Adapter from HighPoint fits into a PCIe 3.0 x8 slot on your host Windows, Mac, Linux, or FreeBSD system using an included low-profile bracket. It is equipped with two internal SFF-8643 mini-SAS ports that support up to eight SAS-3 12 Gb/s or SATA III 6 Gb/s channels, which may be used for Enterprise and NAS drives. The RocketRAID 3720C also supports RAID 0, 1, 5, 6, 10, and 50, each of which provides performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is available. To better monitor the health of your RAID configuration, HighPoint's RocketRAID WebGUI interface provides a wide range of preemptive monitoring and maintenance features.
It is also possible to expand or convert RAID storage configurations as needed with Online Capacity Expansion (OCE), which allows admins to add new drives to existing arrays. Online RAID Level Migration (ORLM) allows admins to convert one RAID level to another in order to tune storage configurations for improved performance or data security.
Please note that bootable RAID 6 arrays are not supported and RAID 6 is not supported on Mac. This controller may be used with the RS6418S and RS6414S JBOD tower enclosures via 8644-8088-1M1 SFF8644 to SFF-8088 cables.
Key Benefits
Suggested Applications
Feature Highlights
In the Box
- HighPoint RocketRAID 3720C PCIe Host Bus Adapter
- Low-Profile Bracket
- Limited 2-Year Warranty
- Description
- Key Benefits
- Suggested Applications
- Feature Highlights
HighPoint 3720C Specs
| Host Interface | PCI Express 3.0 x8 |
| Internal Connections | 2 x Mini SAS (SFF 8643) SAS-3 12 Gb/s |
| RAID Modes | RAID 0, 1, 10, 5, 50, 6, JBOD |
| OS Compatibility | Windows Server 2008 or Later Windows 7 or Later macOS 10.9 or Later Linux FreeBSD |
| Power Consumption | 14 W |
| Operating Temperature | 41 to 131°F / 5 to 55°C |
| Storage Temperature | -4 to 176°F / -20 to 80°C |
| Form Factor | Low-Profile |
| Certifications | CE, FCC, REACH, RoHS, WEEE, as per Manufacturer |
| Mean Time Between Failures (MTBF) | 0.92 Million Hours |
| Dimensions | 5.63 x 2.71 x 0.72" / 14.3 x 6.88 x 1.83 cm |
| Package Weight | 0.615 lb |
| Box Dimensions (LxWxH) | 7.8 x 6.7 x 1.9" |
