Description
HighPoint SSD7749E Overview

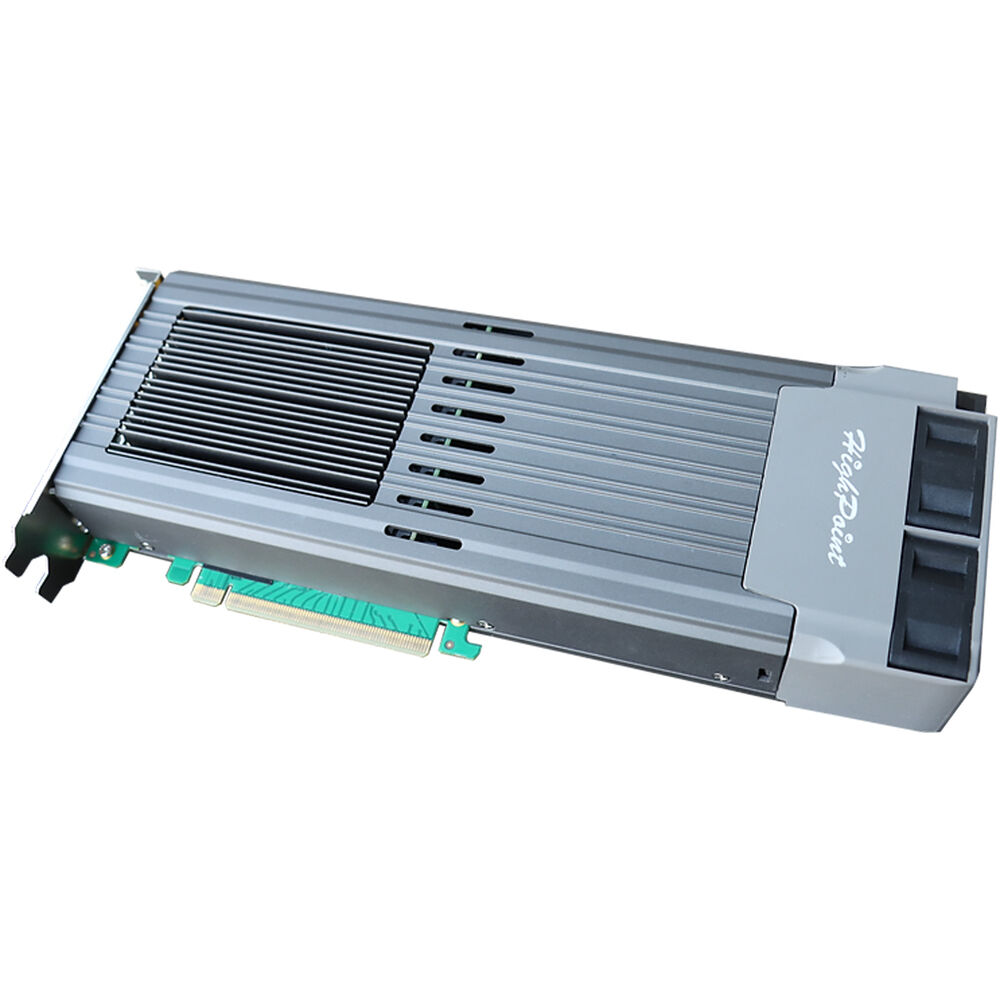

Designed primarily for industrial and edge server applications, the HighPoint SSD7749E PCIe 4.0 x16 8-Channel E1.S NVMe RAID Controller delivers fast, high-density storage with support for up to eight 9.5mm or four 15mm E1.S NVMe SSDs. Configurable for RAID 0, 1, 10, and Single modes, installing this RAID controller into an available PCIe 4.0 x16 slot in your Intel and AMD x86 based servers allows you to transfer up to 28,000 MB/s.
Over 60TB of storage may be installed across eight E1.S NVMe PCIe 4.0 x4 slots. The aluminum cover and cooling fan efficiently dissipate heat to help avoid speed throttling with intensive workloads. This RAID controller is designed to work with Windows, macOS, and Linux operating systems.
In the Box
- HighPoint PCIe 4.0 x16 8-Channel M.2 NVMe RAID Controller
- Limited 2-Year Manufacturer Warranty
HighPoint SSD7749E Specs
| System Connection |
PCI Express 4.0 x16
|
| Internal I/O |
1x PCIe
|
| RAID |
RAID 0/1
|
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
Windows Server 2016 or Later (64-Bit Only) Linux 3.10 or Later Ubuntu macOS 10.13 to 13 |
| System Connection |
PCI Express 4.0 x16
|
| Internal I/O |
1x PCIe
|
| E1/E3 |
8x E1.S NVMe (9.5 mm) or
4x E1.S NVMe (15 mm) |
| RAID |
RAID 0/1
|
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
Windows Server 2016 or Later (64-Bit Only) Linux 3.10 or Later Ubuntu macOS 10.13 to 13 |
| Operating Temperature |
37 to 87°F / 5 to 55°C
|
| Storage Temperature |
-4 to 176°F / -20 to 80°C
|
| Form Factor |
Full Height
|
| Cooling |
1x Fan
|
| Audible Alarm |
Yes
|
| Certifications |
CE, FCC, RoHS, WEEE
|
| Material of Construction |
Aluminum
|
| Mean Time Between Failures (MTBF) |
0.92 Million Hours
|
| Dimensions |
11.18 x 4.92 x 1.53" / 28.4 x 12.5 x 3.89 cm (With Full-Height Bracket)
|
| Weight |
2.67 lb / 1.21 kg
|
