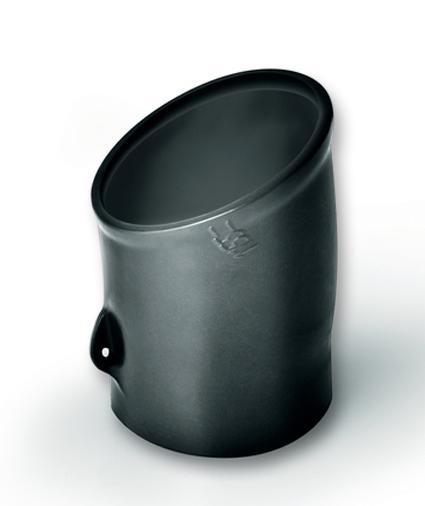

The 1157-4-G-PEX-BK is a right-angle Heat Shrink Boot made of cross linked polyethylene with rib. This style provides connector cable strain relief and can be installed directly onto connector rear thread.
- Semi rigid flexibility
- VG 95343 Flammability
- 14kV/mm According to ASTM D2671 dielectric strength
Applications
Industrial, Thermal Management
Product details
| Boot Configuration |
Right Angle |
| I.D. Supplied - Imperial |
1.692" |
| I.D. Supplied - Metric |
43mm |
| Shrink Tubing / Boot Colour |
Black |
| Total Length - Imperial |
2.16" |
| Total Length - Metric |
55mm |
| I.D. Recovered Max - Imperial |
1.122" |
| I.D. Recovered Max - Metric |
28.5mm |
| Shrink Tubing / Boot Material |
PE (Polyethylene) |
| Shrink Ratio |
1.5:1 |
| Product Range |
- |
Other details
| Brand |
HELLERMANNTYTON |
| Part Number |
411-57480 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
