Description

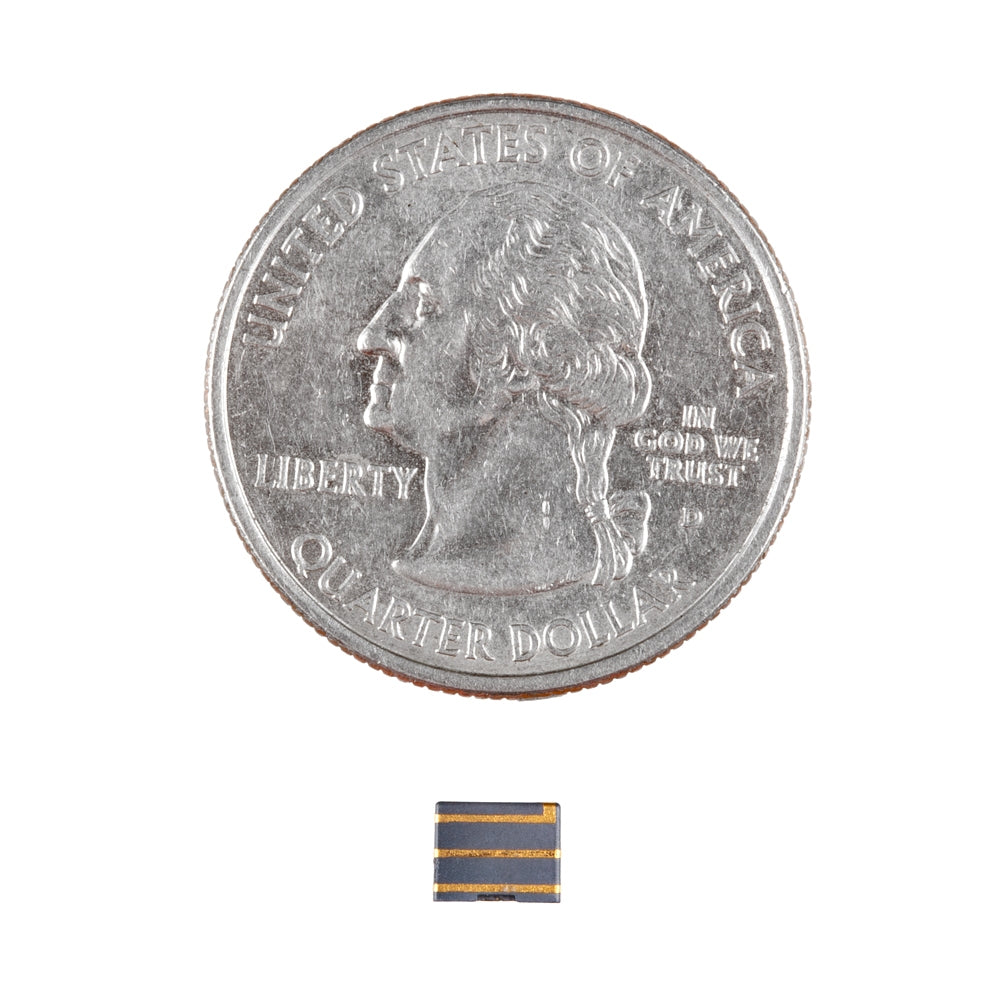

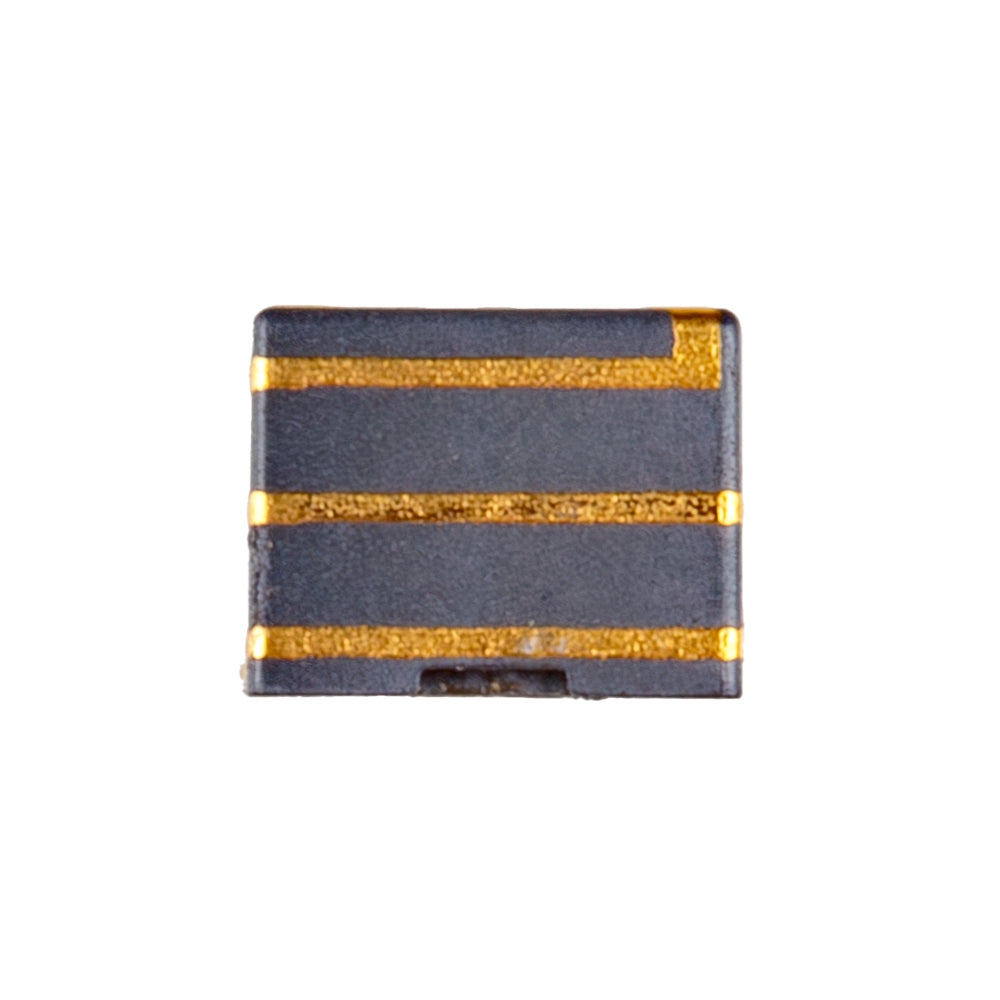

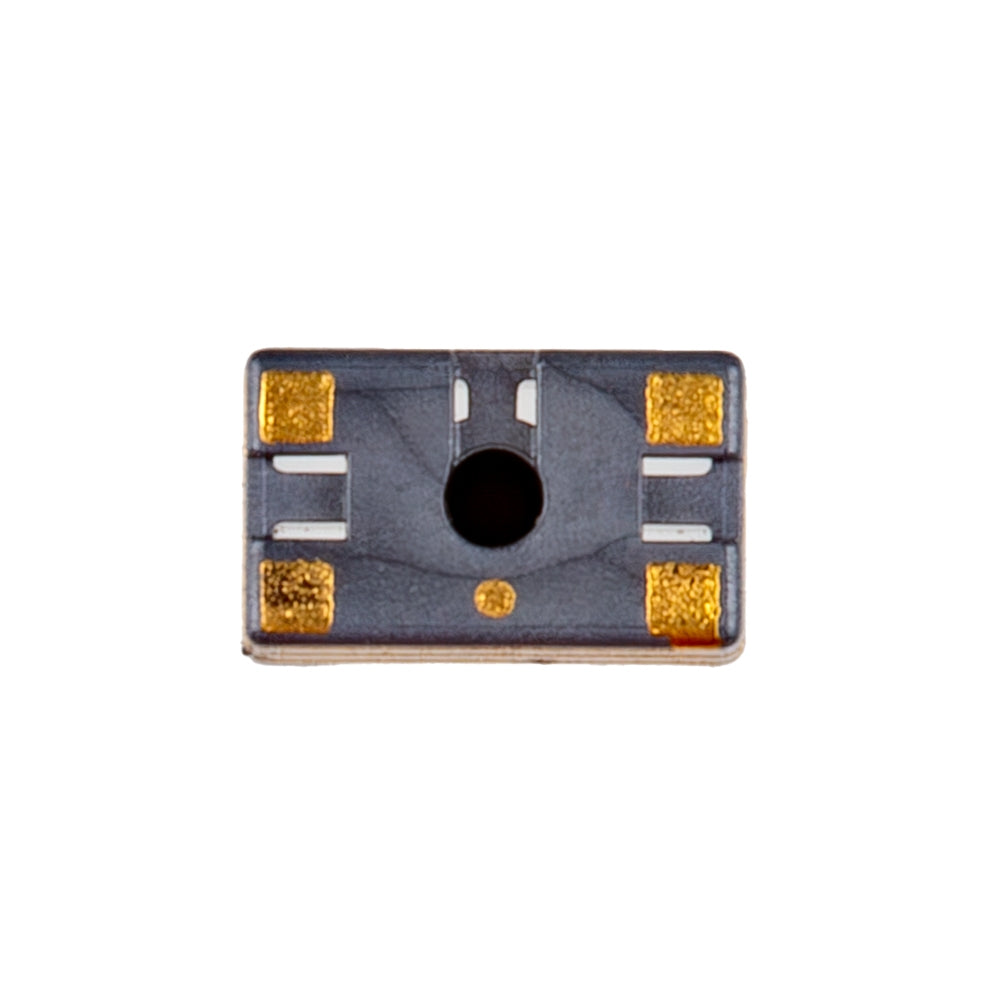

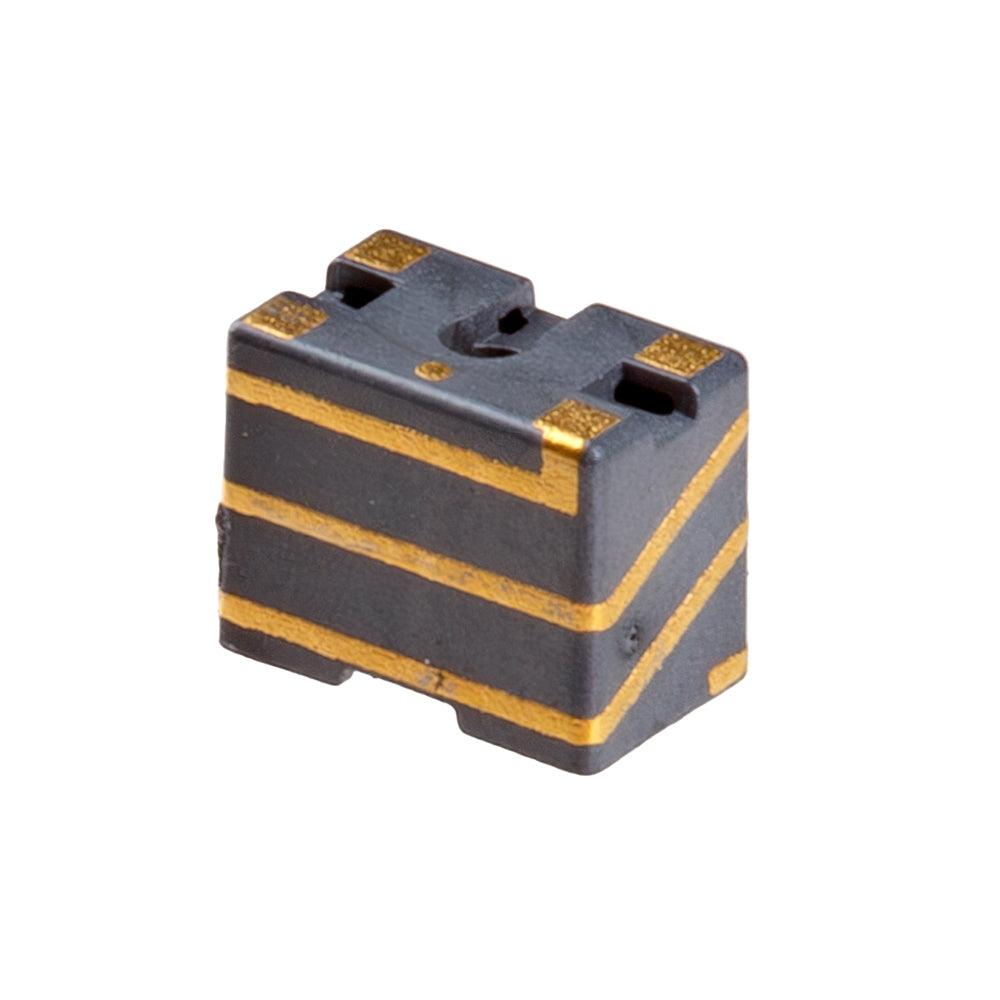

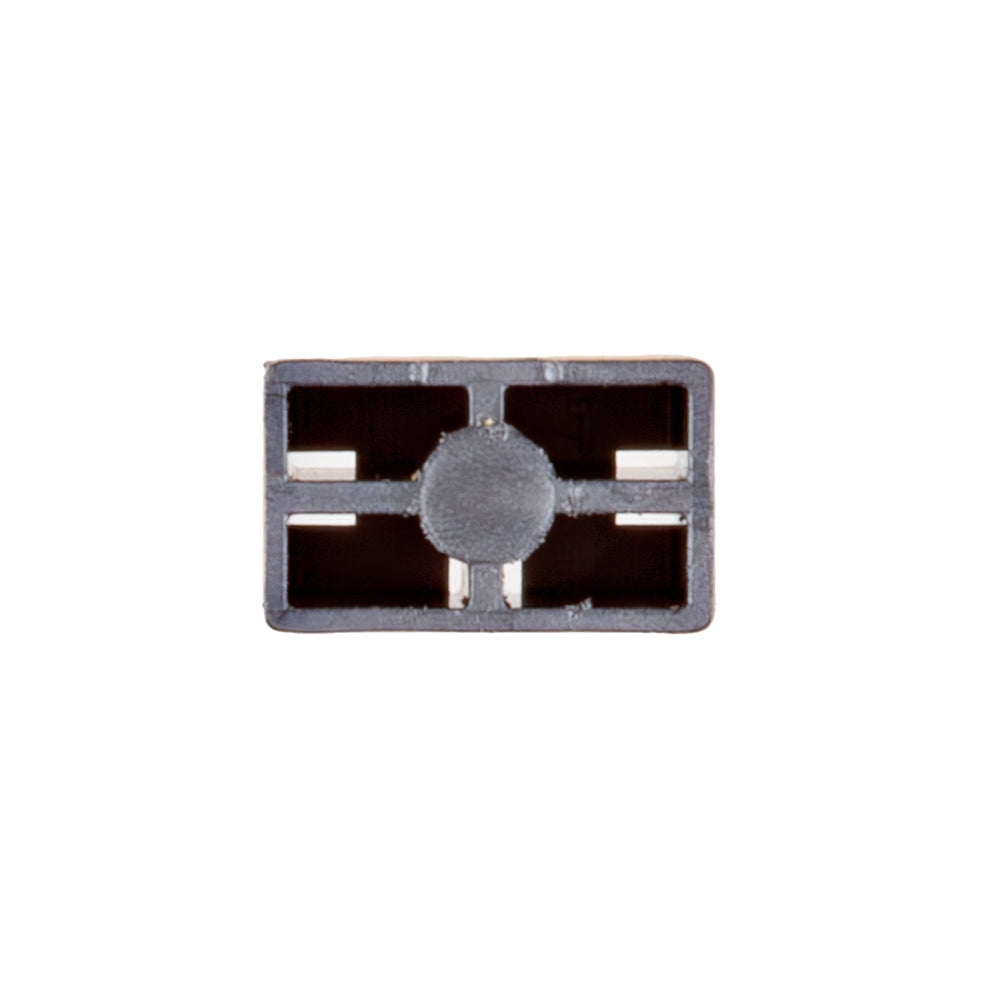

This is a small 3x5x4mm surface mount molded GPS antenna from Molex. It has a frequency range of 1561 - 1602 MHz.
Features & Specs
- Dimensions: 3 x 5 x 4mm
- PCB Clearance: 4x6mm
- Material: LDS
- Antenna Type: Monopole
- Frequency Range: 1561 - 1602 MHz
- Return Loss: <-8dB
- Peak Gain: 1.1dBi
- Total Efficiency: >50%
- Polarization: Elliptic
- Axial Ratio: <6.0
Features & Specs
- Dimensions: 3 x 5 x 4mm
- PCB Clearance: 4x6mm
- Material: LDS
- Antenna Type: Monopole
- Frequency Range: 1561 - 1602 MHz
- Return Loss: <-8dB
- Peak Gain: 1.1dBi
- Total Efficiency: >50%
- Polarization: Elliptic
- Axial Ratio: <6.0
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 274.4 |
| 3-5 | ₹ 271.6 |
| 5-10 | ₹ 266.0 |
| 10+ | ₹ 260.4 |
Bulk discount will be automatically applied during checkout based on quantity.
