Description
Brain blood flow biofeedback meets affordable IoT technology
Features & Specs

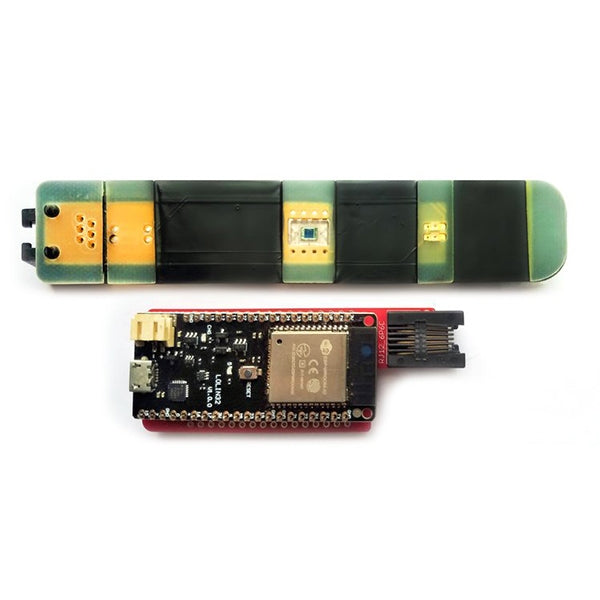

- Controller Board:
- WeMos Lolin32 V1.0.0 (4MB flash but more I/O)
- Texas Instruments ADS1115 16-bit 860sps Analog to Digital Converter (ADC)
- I/O breakouts for a maximum of:
- 32 Inputs / Outputs
- 26x digital pins (3.3V) - all PWM capable (two occupied by LEDs)
- 18x analog pin
- 3x UART
- 3x SPI

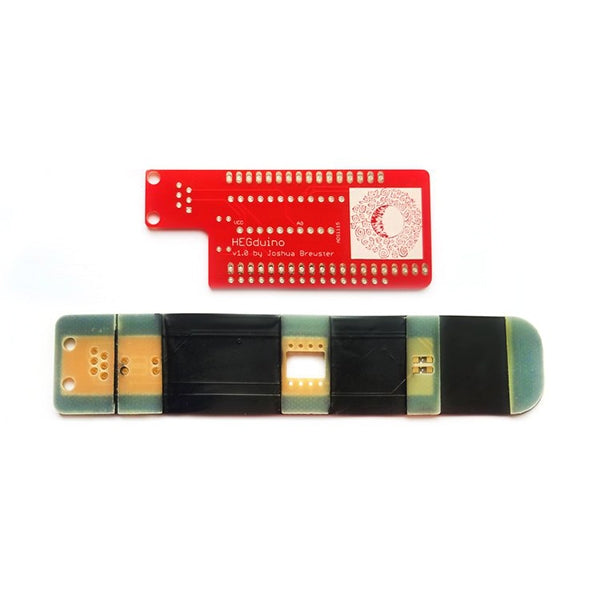

- Sensor Board:
- Flexible circuit board to conform to the shape of your head and headgear
- 650nm 50mA red LED
- 950nm 50mA IR LED
- Texas Instruments OPT101 Monolithic Photodiode
- Connected to receiver by CAT3 connectors/wire
Features & Specs
- Controller Board:
- WeMos Lolin32 V1.0.0 (4MB flash but more I/O)
- Texas Instruments ADS1115 16-bit 860sps Analog to Digital Converter (ADC)
- I/O breakouts for a maximum of:
- 32 Inputs / Outputs
- 26x digital pins (3.3V) - all PWM capable (two occupied by LEDs)
- 18x analog pin
- 3x UART
- 3x SPI
- Sensor Board:
- Flexible circuit board to conform to the shape of your head and headgear
- 650nm 50mA red LED
- 950nm 50mA IR LED
- Texas Instruments OPT101 Monolithic Photodiode
- Connected to receiver by CAT3 connectors/wire
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6022.1 |
| 3-5 | ₹ 5960.65 |
| 5-10 | ₹ 5837.75 |
| 10+ | ₹ 5714.85 |
Bulk discount will be automatically applied during checkout based on quantity.
