Description
Brain blood flow biofeedback meets affordable IoT technology
Features & Specs

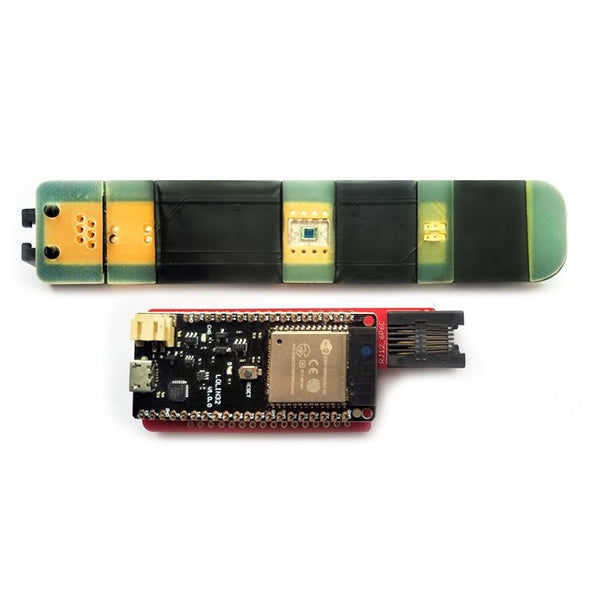

Controller Board:
- ESP32-based control with
- WeMos Lolin32 V1.0.0 (4 MB flash but more I/O)
- ADS1115 16-bit 860 sps ADC
- I/O breakouts for a maximum of:
- 32 Inputs / Outputs
- 26x digital pins (3.3 V) - all PWM capable (two occupied by LEDs)
- 18x analog pin
- 3x UART
- 3x SPI

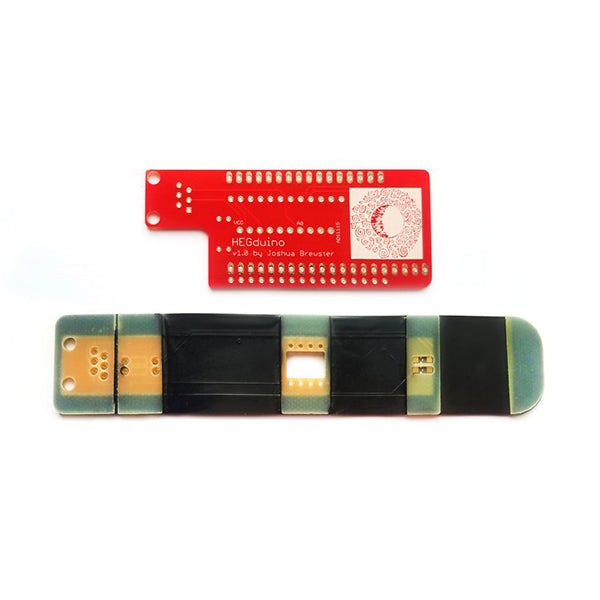

Sensor Board:
- Flexible circuit board to conform to the shape of your head and headgear
- 650 nm 50 mA red LED
- 950 nm 50 mA IR LED
- OPT101 monolithic photodiode
- Connected to receiver by CAT3 connectors/wire
Features & Specs
Controller Board:
- ESP32-based control with
- WeMos Lolin32 V1.0.0 (4 MB flash but more I/O)
- ADS1115 16-bit 860 sps ADC
- I/O breakouts for a maximum of:
- 32 Inputs / Outputs
- 26x digital pins (3.3 V) - all PWM capable (two occupied by LEDs)
- 18x analog pin
- 3x UART
- 3x SPI
Sensor Board:
- Flexible circuit board to conform to the shape of your head and headgear
- 650 nm 50 mA red LED
- 950 nm 50 mA IR LED
- OPT101 monolithic photodiode
- Connected to receiver by CAT3 connectors/wire
Documentation
