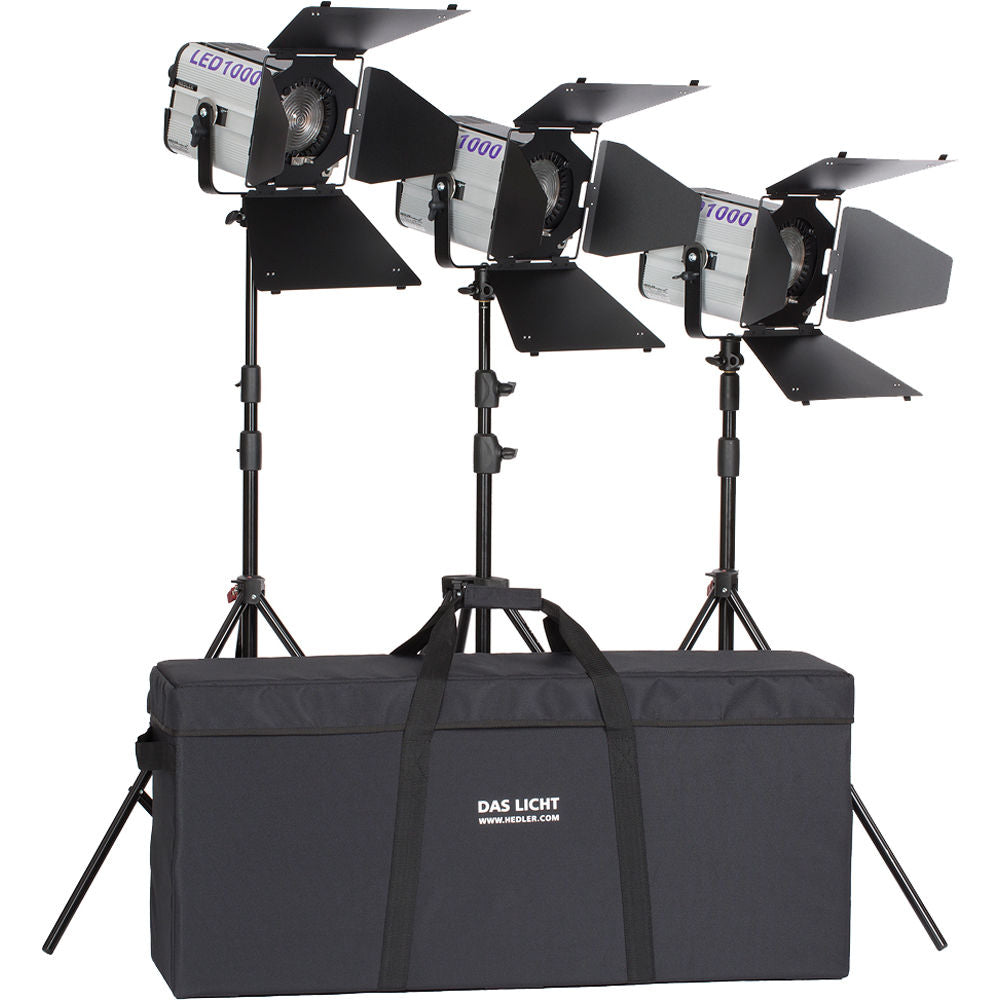

Hedler has put together the Profilux LED1000/LED1000x 3-Light Portrait Kit for image makers who need to take studio-quality lighting on the road. The kit contains two 5600K daylight-balanced Profilux LED1000x flood fixtures and an LED1000 Fresnel with barndoors with 110-240 VAC power supplies and a high CRI rating of 95. Each light comes with an air-cushioned 7.75' light stand, and two MaxiSoft 20 x 20" softboxes are provided for a pleasing quality of light. A Backlight Stand is also included to separate your subject from the background. It all fits in the included 35.8 x 8.7 x 15.7" Light Case XL.
Hedler Profilux LED1000x Daylight Flood
The Profilux LED1000x Daylight Flood from Hedler is a compact daylight-balanced fixture with a built-in electronic ballast that's suitable for video or still photography. The LED1000x's efficient LED lamp consumes 185W of power yet outputs many times that number in equivalent tungsten light and with a high CRI of 95. The fixture is fully dimmable too. The housing has a QuickFit adapter that allows easy use of all reflectors, softboxes plus a 4-way barndoor set to modify the light. A number of safety measures have been incorporated such as integrated overheating protection and an LED safety switch-off. The Profilux LED1000x has a 5/8" receiver for stand mounting and a 110-240 VAC power supply for worldwide use.
Benefits
- LED soft starting
- Display with light output power indicator
- Fully dimmable light output with high light output power repeatability
- Service indicator and status LEDs
- Completely integrated electronic ballast
- Cooling control automatically and manually
- Recalibration option
- Automatic mains voltage recognition
- Multi-voltage 110 - 240 VAC, 50/60Hz
- Integrated overheating protection
- Integrated LED safety switch-off
- Integrated operation hour counter
Hedler Profilux LED1000 Daylight Fresnel
The Profilux LED1000 Daylight Fresnel from Hedler is a compact daylight-balanced fixture with a built-in electronic ballast that's suitable for video or still photography. The LED1000's efficient LED lamp consumes 185W of power yet outputs many times that number in equivalent tungsten light and with a high CRI of 95. The fixture is fully dimmable too. The housing has a QuickFit adapter that allows easy use of all reflectors, softboxes plus a 4-way barndoor set to modify the light, while the fixture's extensive 20 to 60° spot-to-flood range gives the user a variety of light quality choices. A number of safety measures have been incorporated such as integrated overheating protection and an LED safety switch-off. The Profilux LED1000 has a 5/8" receiver for stand mounting and a 110-240 VAC power supply for worldwide use.
Benefits
- LED soft starting
- Display with light output power indicator
- Fully dimmable light output with high light output power repeatability
- Service indicator and status LEDs
- Completely integrated electronic ballast
- Cooling control automatically and manually
- Recalibration option
- Automatic mains voltage recognition
- Multi-voltage 110 - 240 VAC, 50/60Hz
- Integrated overheating protection
- Integrated LED safety switch-off
- Integrated operation hour counter
Hedler 4-Leaf Barndoor 360
The 4-Leaf Barndoor 360° from Hedler is a light modifier that allows you to illuminate areas of your choosing, or keep light from areas that you don't want illuminated. One or more of the four leaves can swing into the beam spread to add directional control and shape the output. The reflector is compatible with all Hedler lights except the C-Lights; which need a Speedring C for use.
Hedler MaxiSoft Softbox (20 x 20")
The 20 x 20" MaxiSoft Softbox from Hedler is an ideal choice for small products, hairlight, fill light or portraiture. The softbox rotates 360 degrees, accepts optional grids and is useable on Hedler lights up to 1250W. C-Lights require Speedring C for use.
In the Box
- 2 x Hedler Profilux LED1000x Daylight Flood
- Hedler Profilux LED1000 Daylight Fresnel
- Hedler 4-Leaf Barndoor 360
- 2 x Hedler MaxiSoft Softbox (20 x 20")
- Storage Bag
- Limited 3-Year Warranty
- Backlight Stand B
- 2 x Air-Cushioned Light Stands (7.75')
- Light Case XL
- Limited 3-Year Warranty
Table of Contents
- Description
- Hedler Profilux LED1000x Daylight Flood
- Hedler Profilux LED1000 Daylight Fresnel
- Hedler 4-Leaf Barndoor 360
- Hedler MaxiSoft Softbox (20 x 20")
Hedler Profilux LED1000x Daylight Flood Specs
Light Fixture
| Beam Angle |
75° |
| Color Temperature |
5600K |
| Color Accuracy Standard |
CRI 95 |
| Cooling System |
Fan/Passive Combo |
| Dimming |
Yes, 5 to 100% |
| Housing Material |
Aluminum |
| Expected Lamp Life |
50,000 Hours |
| Fixture Dimensions |
9.8 x 6.5 x 7.0" / 250.0 x 165.0 x 180.0 mm |
| Fixture Weight |
7.0 lb / 3.18 kg |
Mounting
| Yoke Mount |
TVMP/ Hex Bolt |
| Fixture Mount |
5/8" Receiver |
| Accessory Mount |
None |
Power
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter |
| Max Power Consumption |
185 W |
Physical
| IP Rating |
IP20 |
| Operating Temperature |
5 to 104°F / -15 to 40°C |
Packaging Info
| Package Weight |
9 lb |
| Box Dimensions (LxWxH) |
13.9 x 10.4 x 8.4" |
Hedler Profilux LED1000 Daylight Fresnel Specs
Light Fixture
| Beam Angle |
20 to 60° |
| Color Temperature |
5600K |
| Color Accuracy Standard |
CRI 95 |
| Cooling System |
Fan/Passive Combo |
| Dimming |
Yes, 5 to 100% |
| Housing Material |
Aluminum |
| Expected Lamp Life |
50,000 Hours |
| Fixture Dimensions |
9.8 x 6.5 x 7.0" / 250.0 x 165.0 x 180.0 mm |
| Fixture Weight |
7.3 lb / 3.31 kg |
Mounting
| Yoke Mount |
TVMP/ Hex Bolt |
| Fixture Mount |
5/8" Receiver |
| Accessory Mount |
None |
Power
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter |
| Max Power Consumption |
185 W |
Physical
| IP Rating |
IP20 |
| Operating Temperature |
5 to 104°F / -15 to 40°C |
Packaging Info
| Package Weight |
9.075 lb |
| Box Dimensions (LxWxH) |
13.9 x 10.3 x 8.2" |
Hedler 4-Leaf Barndoor 360 Specs
Physical
| Design |
4-Leaf |
| Material |
Metal |
| Dimensions |
7.87 x 7.87" / 200 x 200 mm |
| Weight |
1.54 lb / 700 g |
Hedler MaxiSoft Softbox (20 x 20") Specs
Physical
| Shape |
Square |
| Interior Color |
Silver |
| Requires Speed Ring |
No |
| Accepts Grids |
Yes |
| Maximum Wattage |
1250 W (Hot Lights)
No Maximum (Cool Lights) |
| Rectangular Dimensions |
W: 19.7 x H: 19.7 x D: 16.6" / W: 50.0 x H: 50.0 x D: 42.0 cm |
| Weight |
2.6 lb / 1.2 kg |
