Description
- 1 x Hear Back PRO Hub
- 4 x Hear Back PRO Mixers
- 4 x Cat6 Cables
- 16 Channels of SoundGrid Digital I/O
- Up to 96 kHz Sampling Rate
- Low System Latency
- Built-In Intercom
- Per-Channel Signal Metering
- Modular, Expandable Design
- Aux Input & Two Headphone Outs Per Mixer

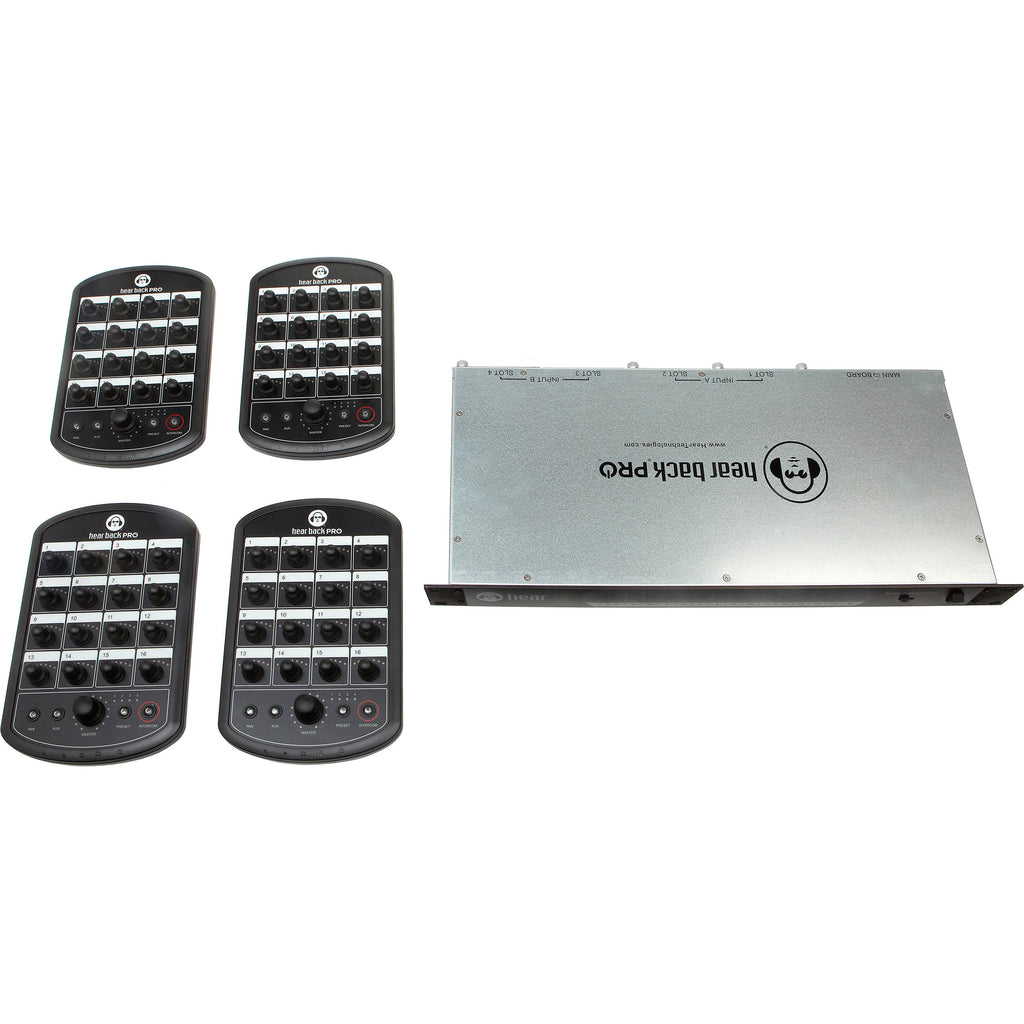

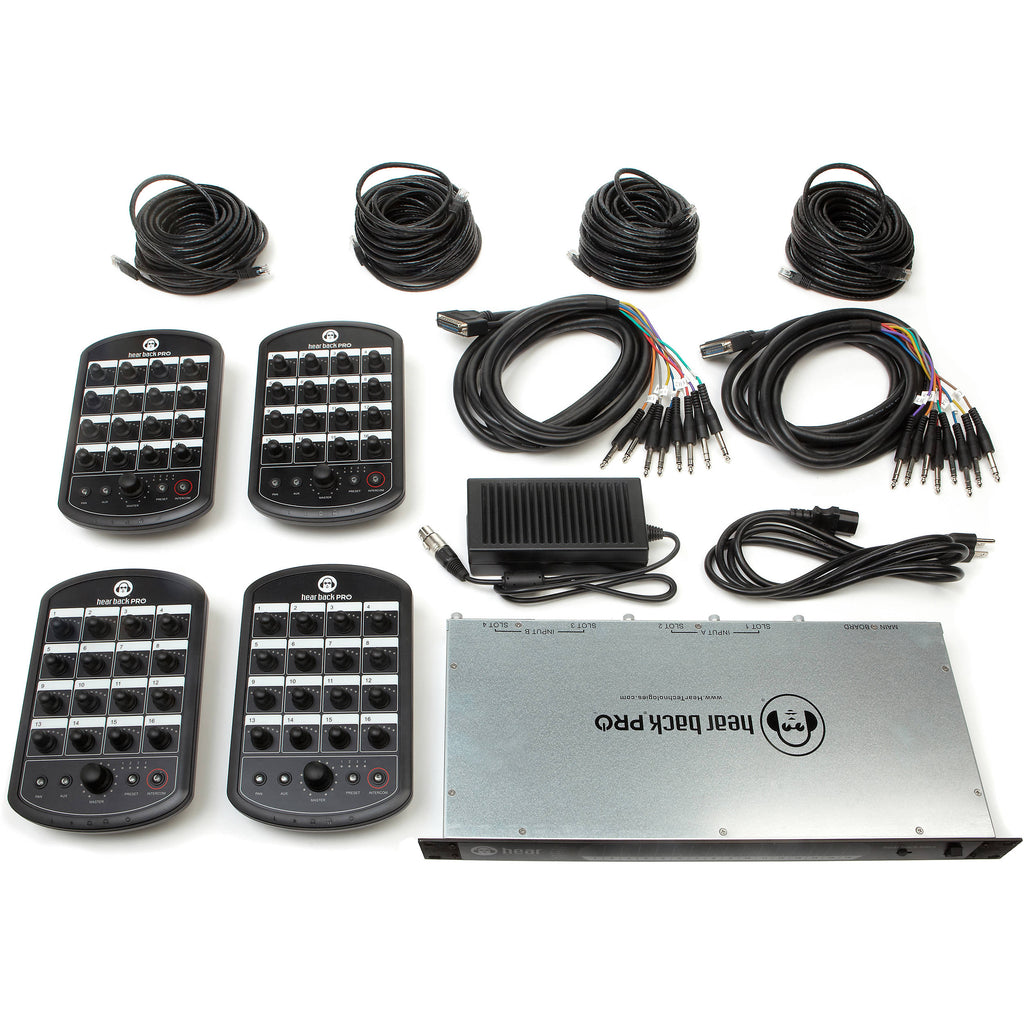

The Hear Technologies Hear Back PRO 4-Pack is a personal mixing system offering independent multi-channel mixing for up to four performers in the studio or on stage. It includes one Hear Back PRO Hub, four Hear Back PRO Mixers, four 50� Cat6 cables, an eight-port network card, and a Waves SoundGrid I/O card. 24-bit A/D and D/A converters deliver detailed audio with extended dynamic range and resolution up to 96 kHz. The low system latency of less than 0.25 milliseconds ensures there will be no monitoring delay.
Artists can make their own headphone mixes comprised of up to 16 digital inputs via the RJ45 port on the Waves SoundGrid I/O card and a mono mic or stereo aux input, blending levels and pans as they please. Each mixer offers an 1/8" and 1/4" TRS headphone output to accommodate different headphones. Per-channel input metering on the Hear Back PRO Hub provides clear indication of signal presence and peaking status. The built-in intercom grants easy communication to other Hear Back PRO Mixers. If mixing stations are needed for more than four artists, the system is easily expandable via additional Hear Back PRO Mixers (available separately) and other interface cards.
- Hear Back PRO Personal Monitor Mixer for Hear Back PRO Hub

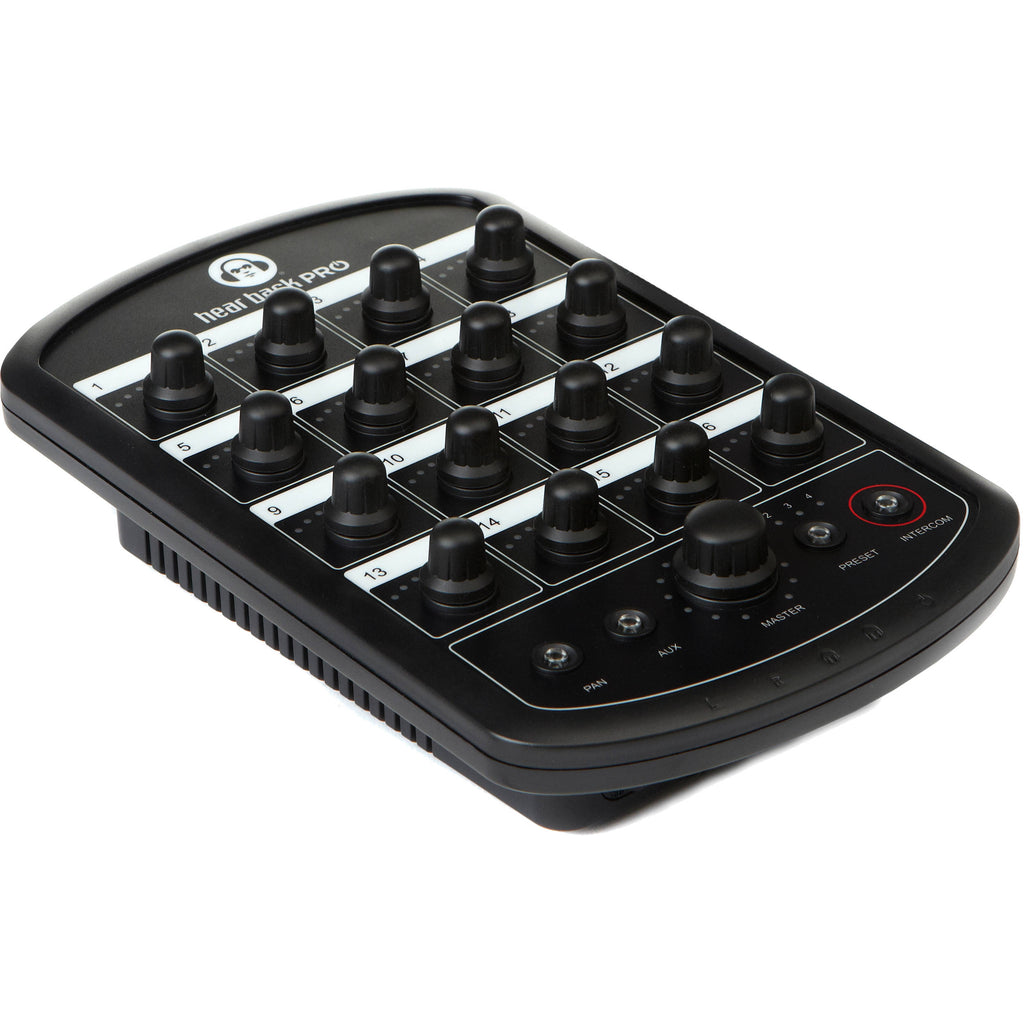

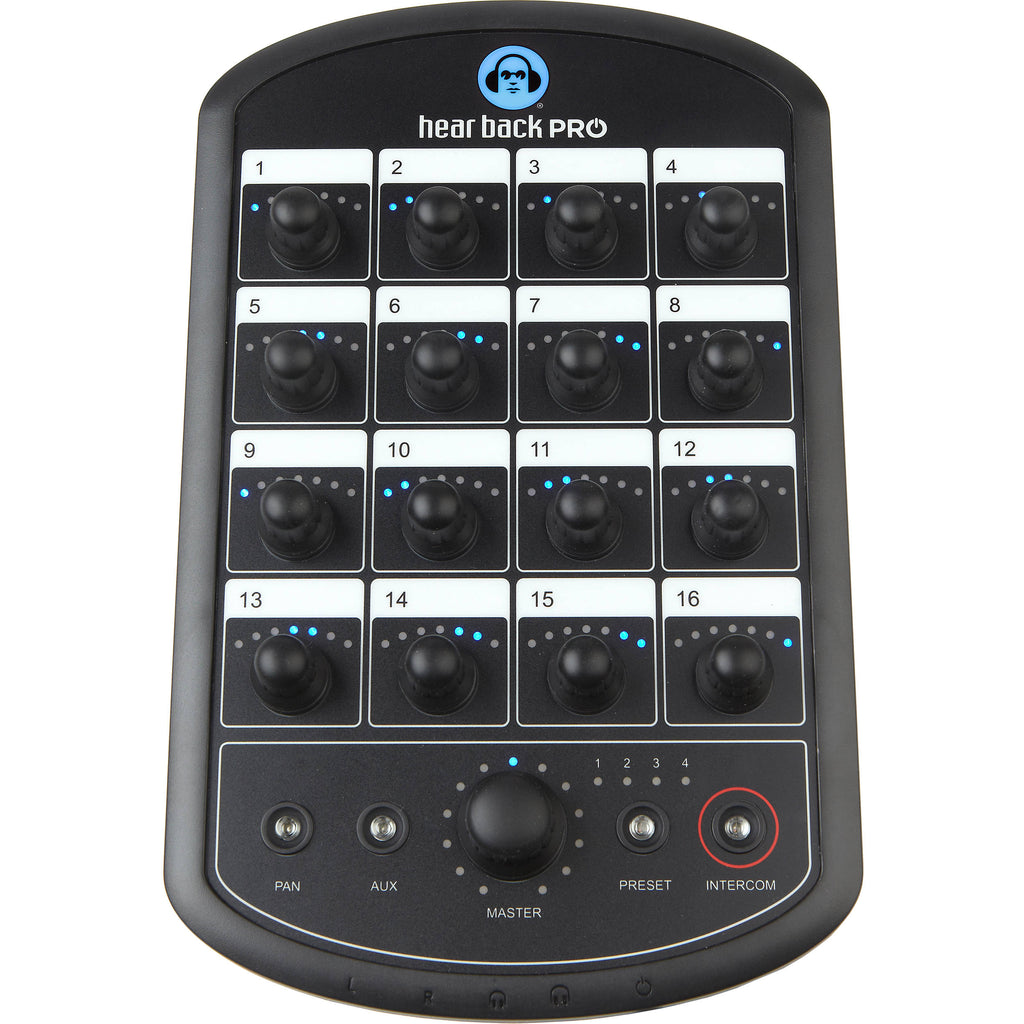

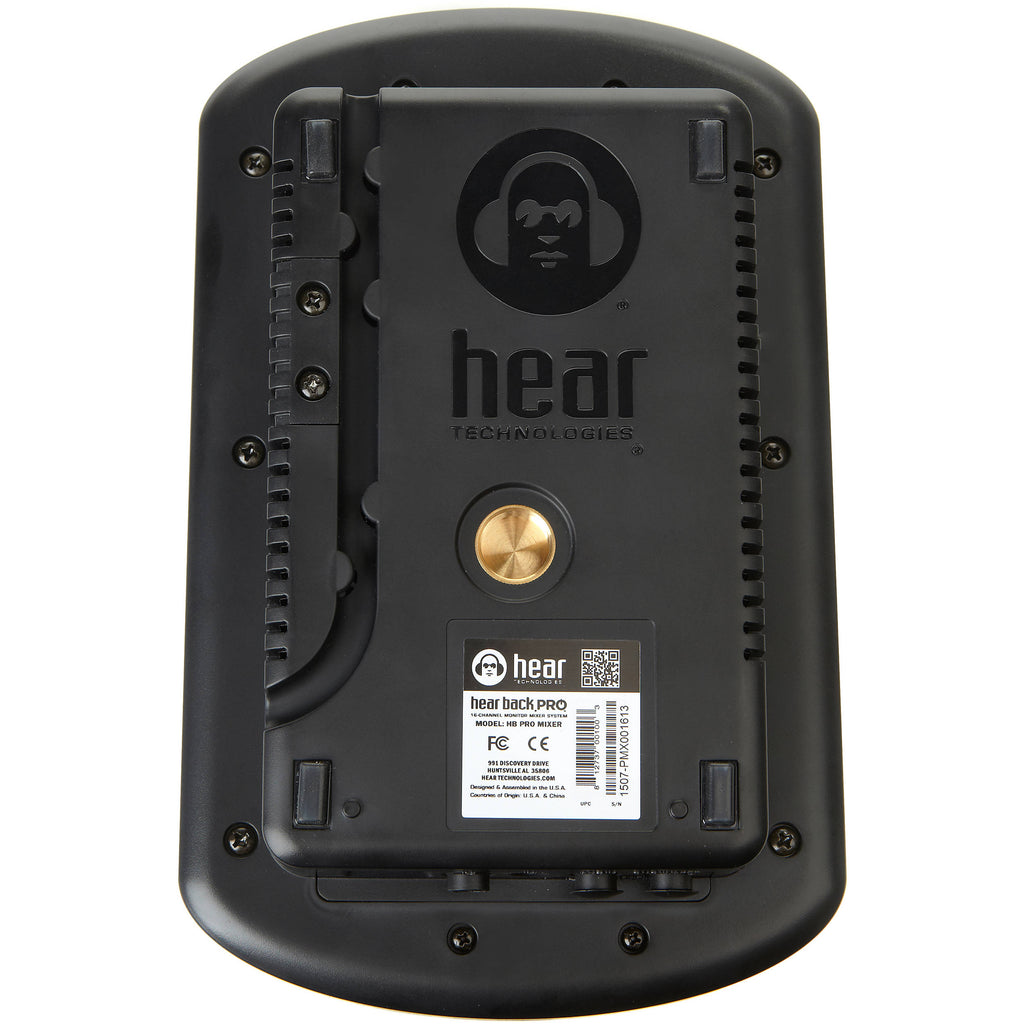

The Hear Technologies Hear Back PRO Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat6e connection to a Hear Back PRO Hub (available separately) and features an integrated 5/8�-27 threaded socket for easy mounting to a mic stand. Store and recall up to four presets to instantly reconfigure mixer settings for different monitoring scenarios.
The 18-channel mixer accepts 16 channels via Cat6e and two channels via the 3.5mm stereo aux input jack. Adjacent mono channels can be linked for true stereo operation. Connect an external mic to the XLR 3-pin jack, then use the built-in intercom function to communicate to other connected Hear Back PRO Mixers. Volume and pan is adjustable for each channel and a dedicated master output knob allows for quick control of the headphone level. 24-bit A/D and D/A conversion delivers high-quality signal to the 3.5mm and 1/4" stereo headphone jacks and the two 1/4" balanced line outs.
- Mix up to 16 channels via Cat6e input and two channels via stereo aux input
- 3.5mm stereo aux input for click track or mix from other modules
- XLR 3-pin mic input with 15 VDC phantom power
- System latency less than 0.25 ms
- Mono inputs can be linked for stereo operation
- Two 1/4" balanced line outputs for connection external monitors or other personal mixers
- Integrated intercom allows communication to anyone with a Hear Back PRO Mixer
- Store and recall up to four presets for quick mixer configuration
- Connects to Hear Back PRO Hub (available separately) via Cat6e
UPC: 812737001003

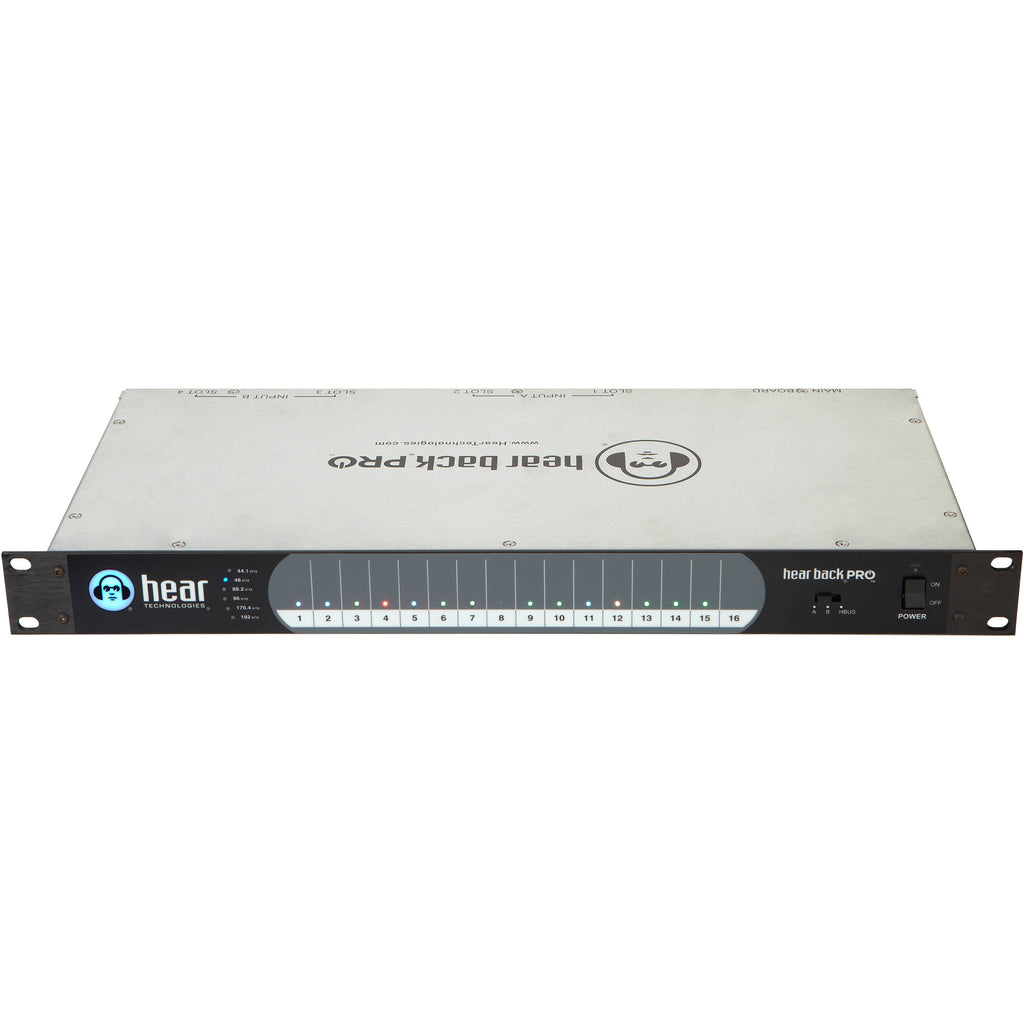

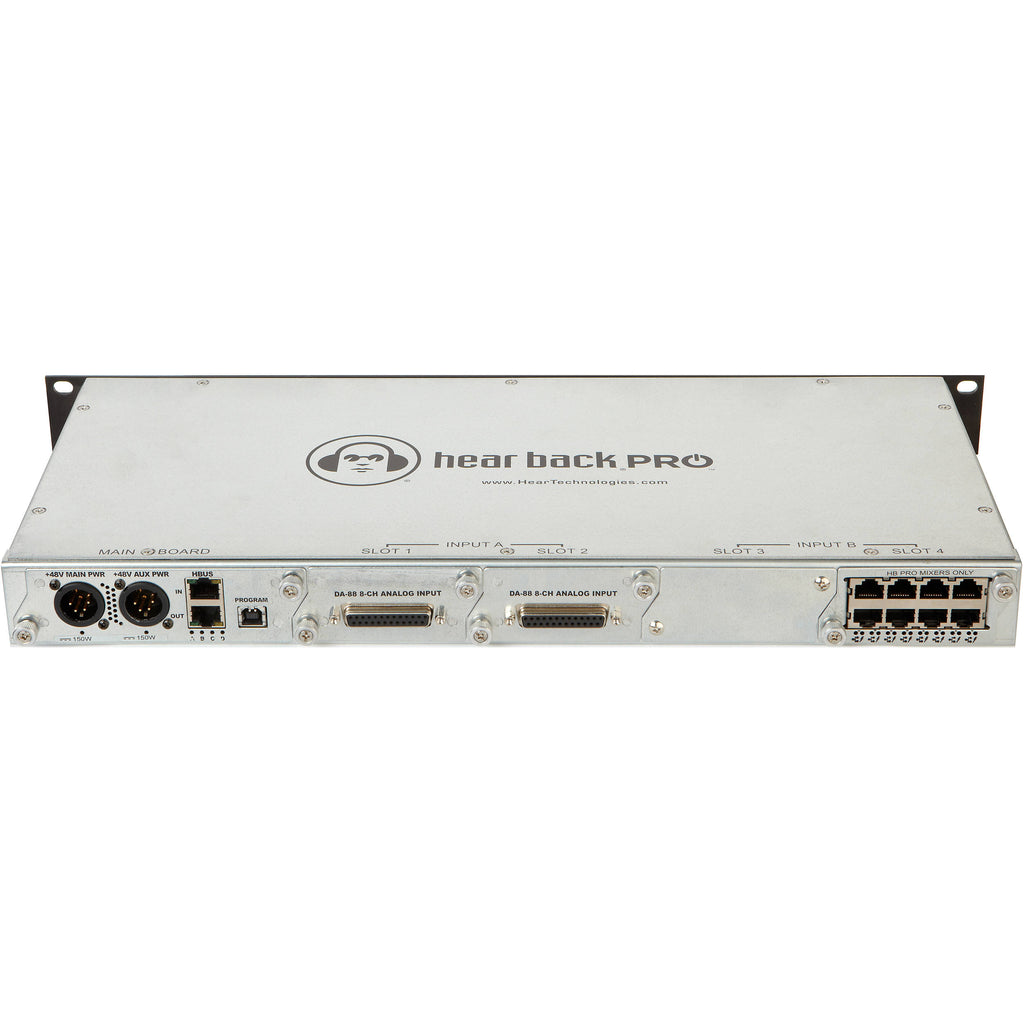

- Hear Back PRO Hub Mainframe
- Network Card 8-Port RJ45 Card for Hear Back PRO Hub

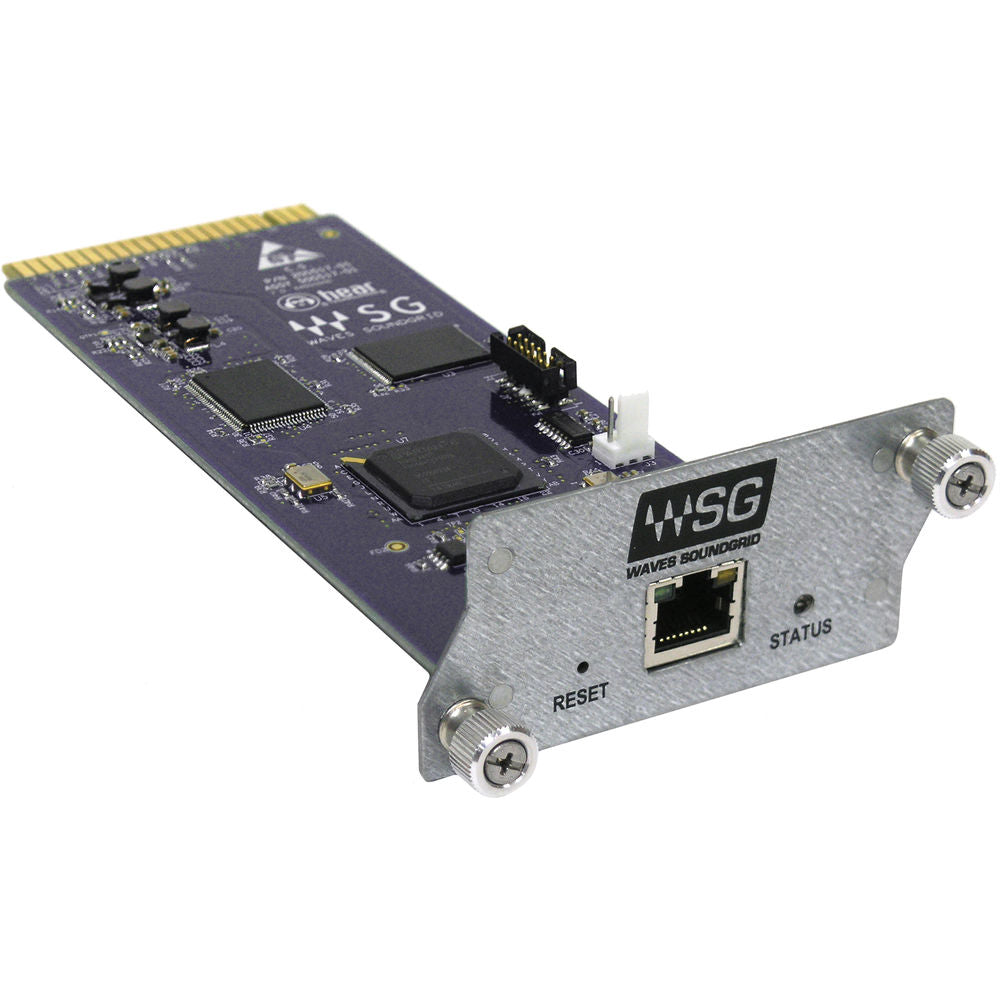

- Waves Card 16-Channel SoundGrid I/O Card for Hear Back PRO Hub
- Cat6 Patch Cable (50')
- Hear Back PRO Personal Monitor Mixer for Hear Back PRO Hub

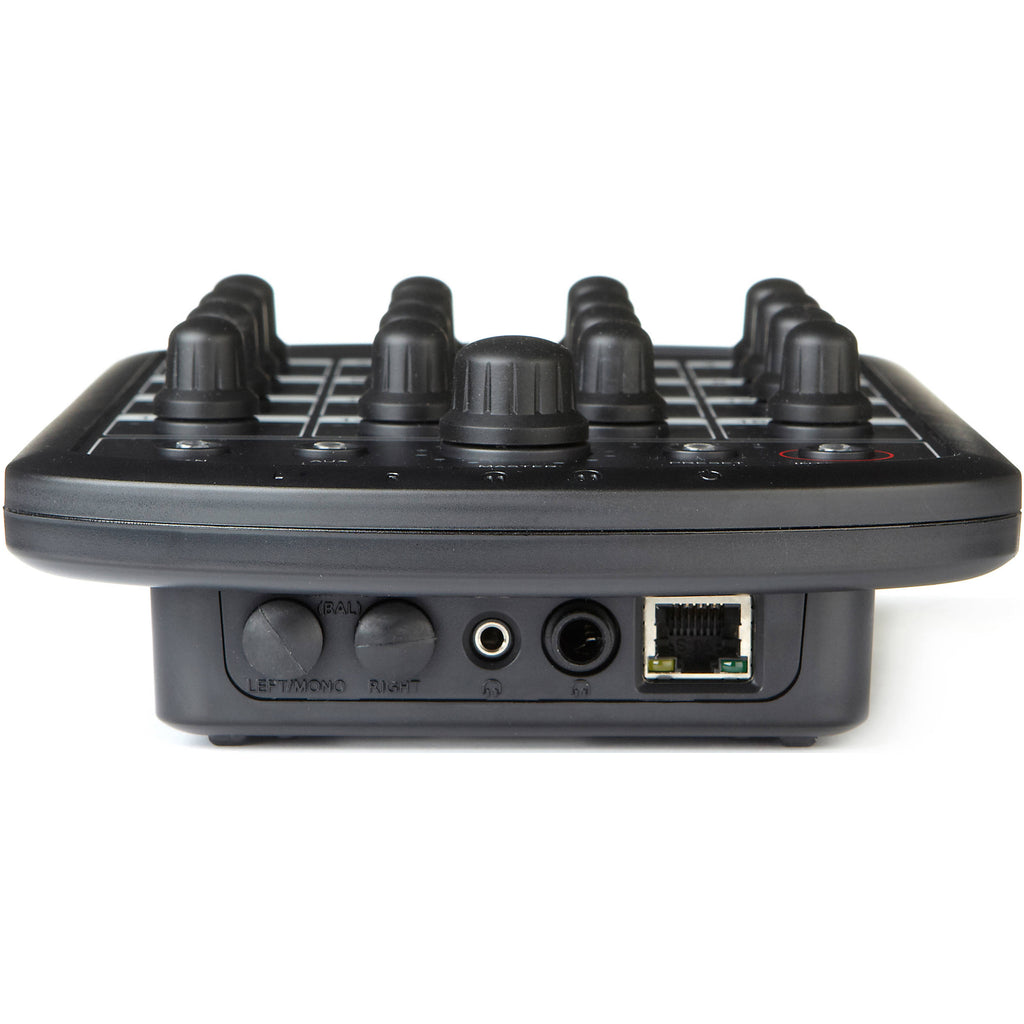

Inputs 1 x 1/8" (3.5 mm) TRS stereo mini-jack

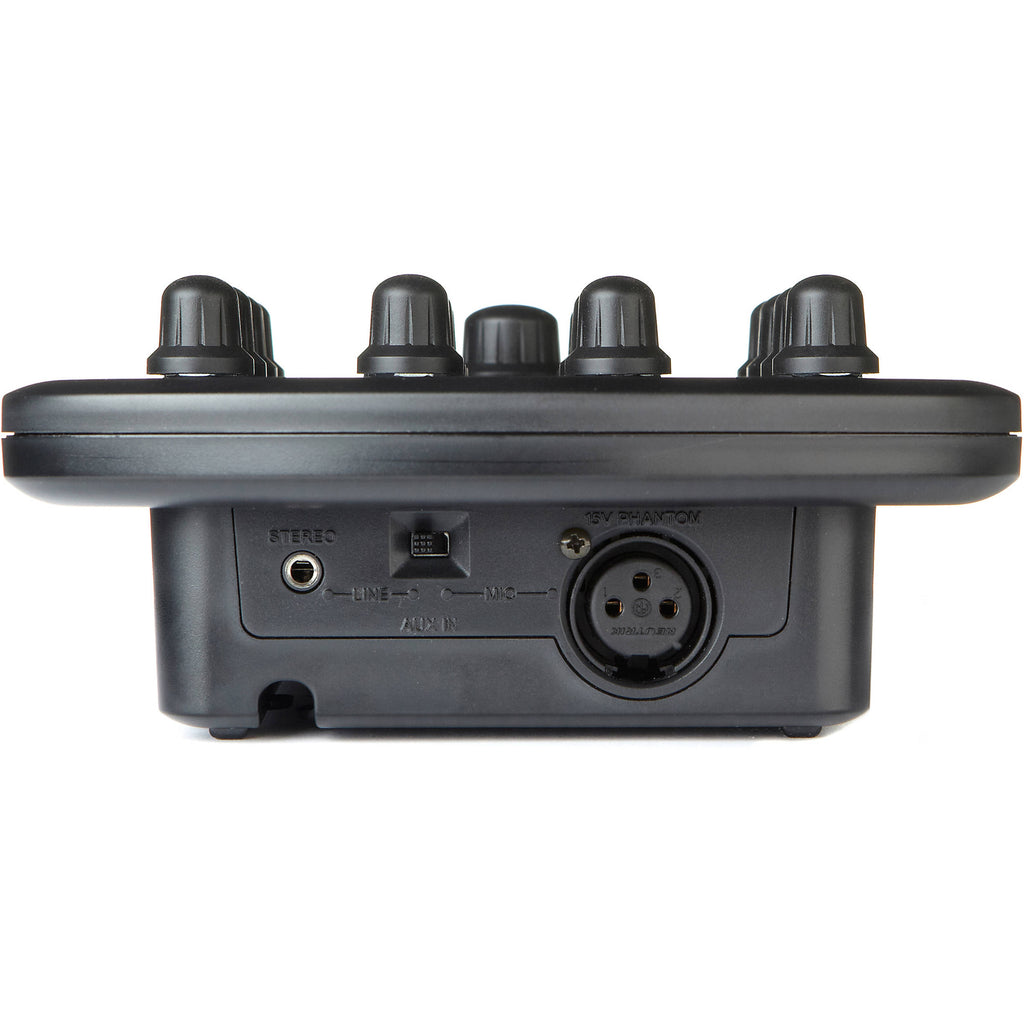

1 x XLR 3-pin microphone input
1 x RJ45Outputs 2 x 1/4" TRS balanced line outputs
1 x 1/4" TRS unbalanced stereo headphone jack
1 x 1/8" (3.5 mm) unbalanced stereo headphone mini-jackPhantom Power 15 V for XLR input A/D and D/A Conversion 24-bit Delta-Sigma Maximum Input Level Aux Input: +18 dBu (0 dBu optimal)
Mic Input: -30 dBu (-42 dBu optimal)Maximum Output Level +24 dBu Dynamic Range 117 dB typical Noise -93 dBu at 192 kHz sample rate (A-weighted) Impedance Aux Input: 10 kOhms typical
Mic Input: 1 kOhm, 150 Hz high-pass filterFrequency Response Line Outputs: 20 Hz to 20 kHz (±0.15 dB) THD + N Line Outputs: 0.004% typical (at 1 kHz, +15 dBu), 0.008% typical (at 20 Hz to 20 kHz, +4 dBu) IMD Line Outputs: 0.02% typical (at +4 dBu, 60 Hz/7 kHz)
Headphone Outputs: <0.03%Crosstalk Line Outputs: Less than -93 dB at 1 kHz Propagation Delay Line Outputs: <0.25 ms at 192 kHz sample rate Headphone Output Power @ 8 Ohms: 1.2 W (THD <0.015%), 1.5 W (THD <0.1%)
@ 16 Ohms: 1.6 W (THD <0.01%), 1.8 W (THD <0.1%)
@ 25 Ohms: 2 W (THD <0.01%), 2.2 W (THD <0.1%)
@ 32 Ohms: 1.8 W (THD <0.01%), 2 W (THD <0.1%)
@ 50 Ohms: 1.5 W (THD <0.01%), 1.6 W (THD <0.1%)
@ 100 Ohms: 1.1 W (THD <0.01%), 1.2 W (THD <0.1%)
@ 200 Ohms: 500 mW (THD <0.01%), 650 mW (THD <0.1%)
@ 600 Ohms: 220 mW (THD <0.01%), 250 mW (THD <0.1%)Maximum Cable Distance Cat6e: 500' / 152.4 m Mounting 5/8"-27 threaded socket Enclosure Material UV-stabilized ABS Dimensions (H x W x D) 9.5 x 6.0 x 2.7" / 241.0 x 152.0 x 68.8 mm Weight 1.6 lb / 0.7 kg Packaging Info Box Dimensions (LxWxH) 10.8 x 7.1 x 4.9"
- Hear Back PRO Hub Mainframe
- Network Card 8-Port RJ45 Card for Hear Back PRO Hub
- Waves Card 16-Channel SoundGrid I/O Card for Hear Back PRO Hub
- Cat6 Patch Cable (50')
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
