Description
- 10-Channel Mixer, Linkable Channels
- 1/8" Stereo Aux Input
- 1/8" and 1/4" Stereo Headphone Outputs
- Stereo 1/4" Line Outputs
- 24-Bit D/A Converters
- Low System Latency
- Master and Per-Channel Volume Adjustment
- Bus Status, Link, and Fault Indicators
- Power and Signal via Cat5e
- Built-In Socket for Mic Stand Mounting

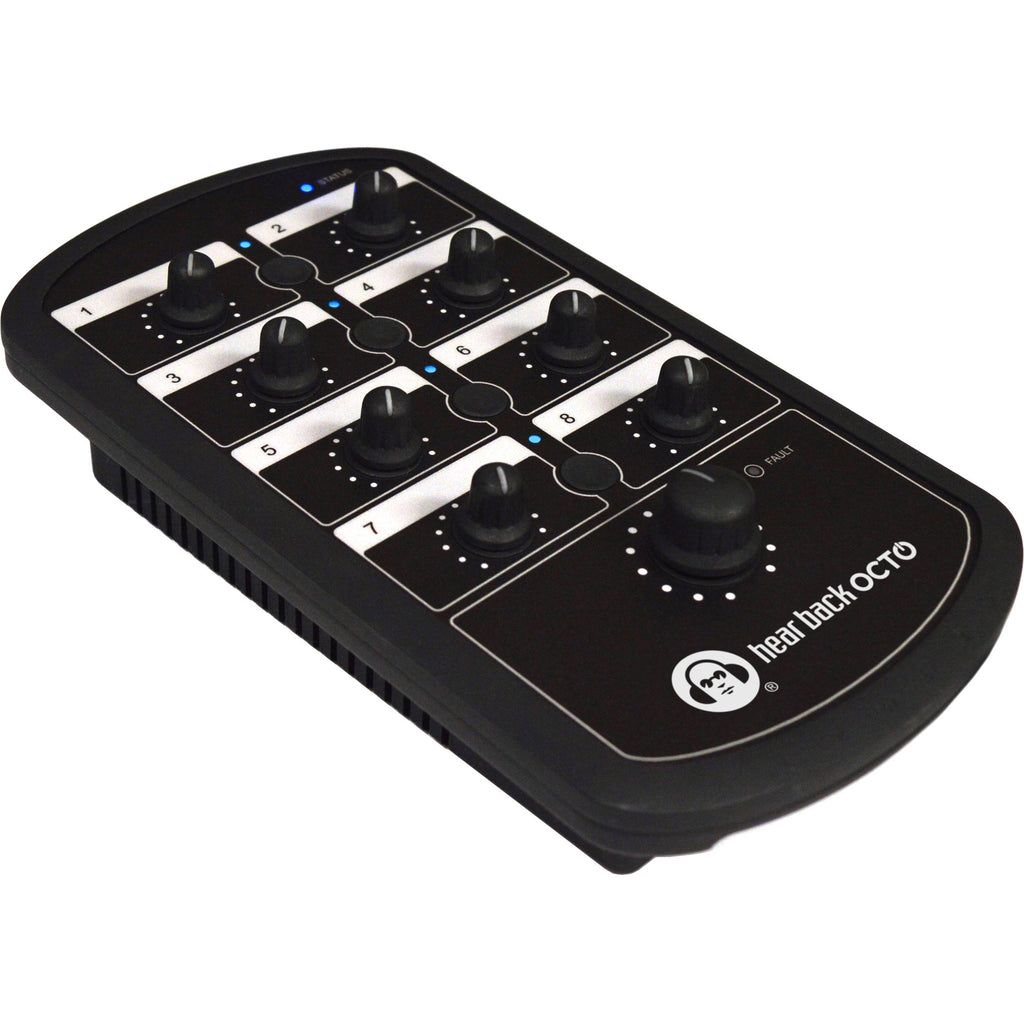

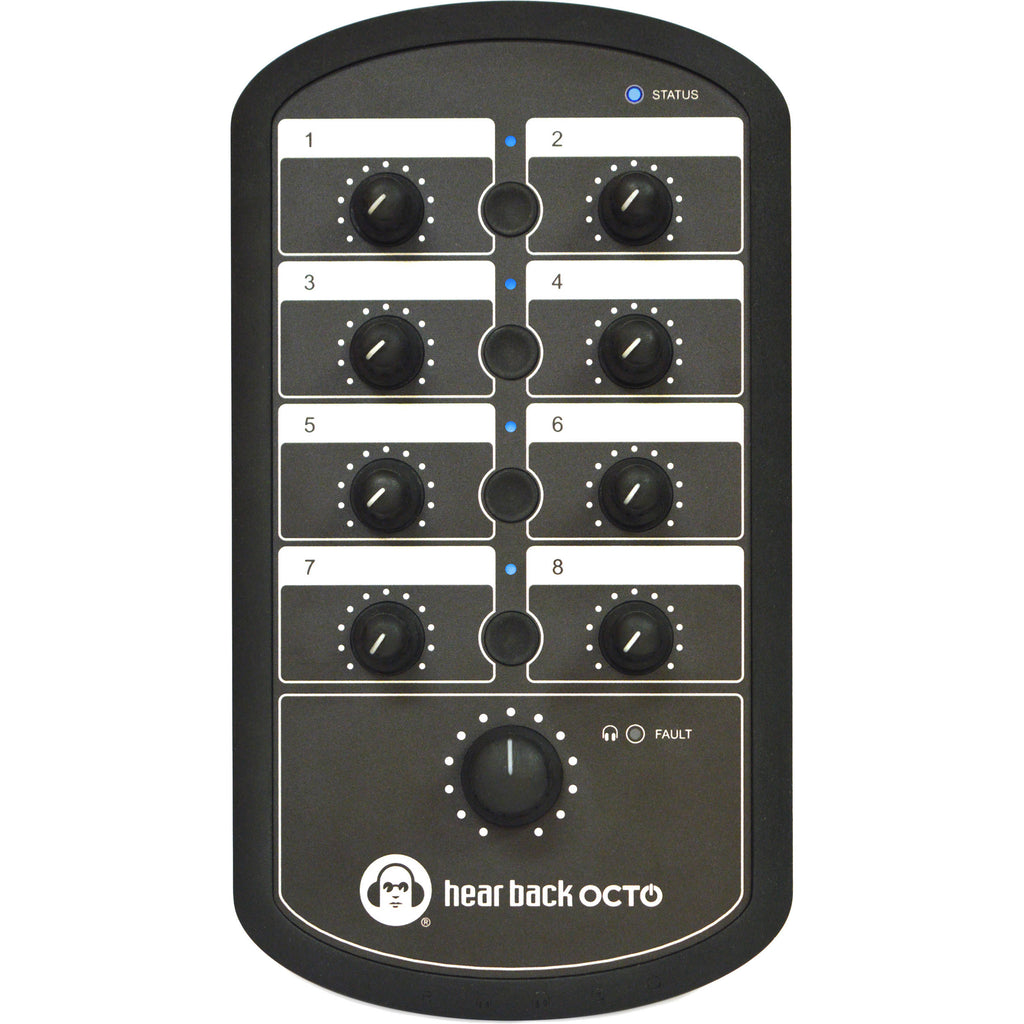

The Hear Technologies Hear Back OCTO Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat5e connection to a Hear Back OCTO Hub (available separately) and features an integrated 5/8"-27 threaded socket for easy mounting to a mic stand.
The ten-channel mixer accepts eight channels via Cat5e and two channels via the 1/8" stereo aux input jack. Adjacent mono channels can be linked for stereo operation using the capacitive touch link buttons. Volume is adjustable for each channel and a dedicated master output knob allows for quick control of the headphone level. 24-bit D/A conversion delivers high-quality signal to the 1/8" and 1/4" stereo headphone jacks and the two 1/4" balanced line outs. LEDs are provided for indication of headphone amplifier fault, channel link, and bus status.
- Mix up to eight channels via Cat5e input and two channels via stereo aux input
- 1/8" stereo aux input for click track or mix from other modules
- System latency less than 1.5 ms
- Mono inputs can be linked for stereo operation

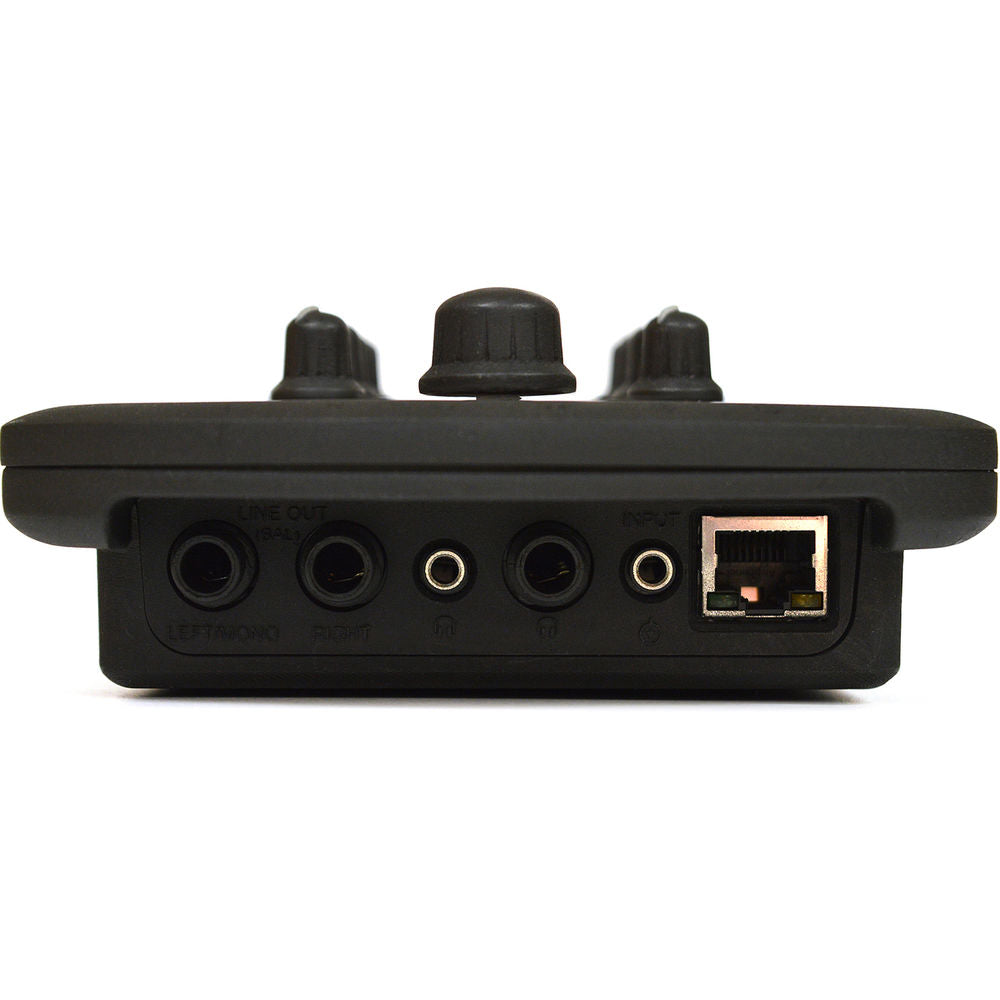

- Two 1/4" balanced line outputs for connection to external monitors or other personal mixers
- Per-channel level controls and master volume
- LED indicators for headphone amplifier fault, link, and bus status

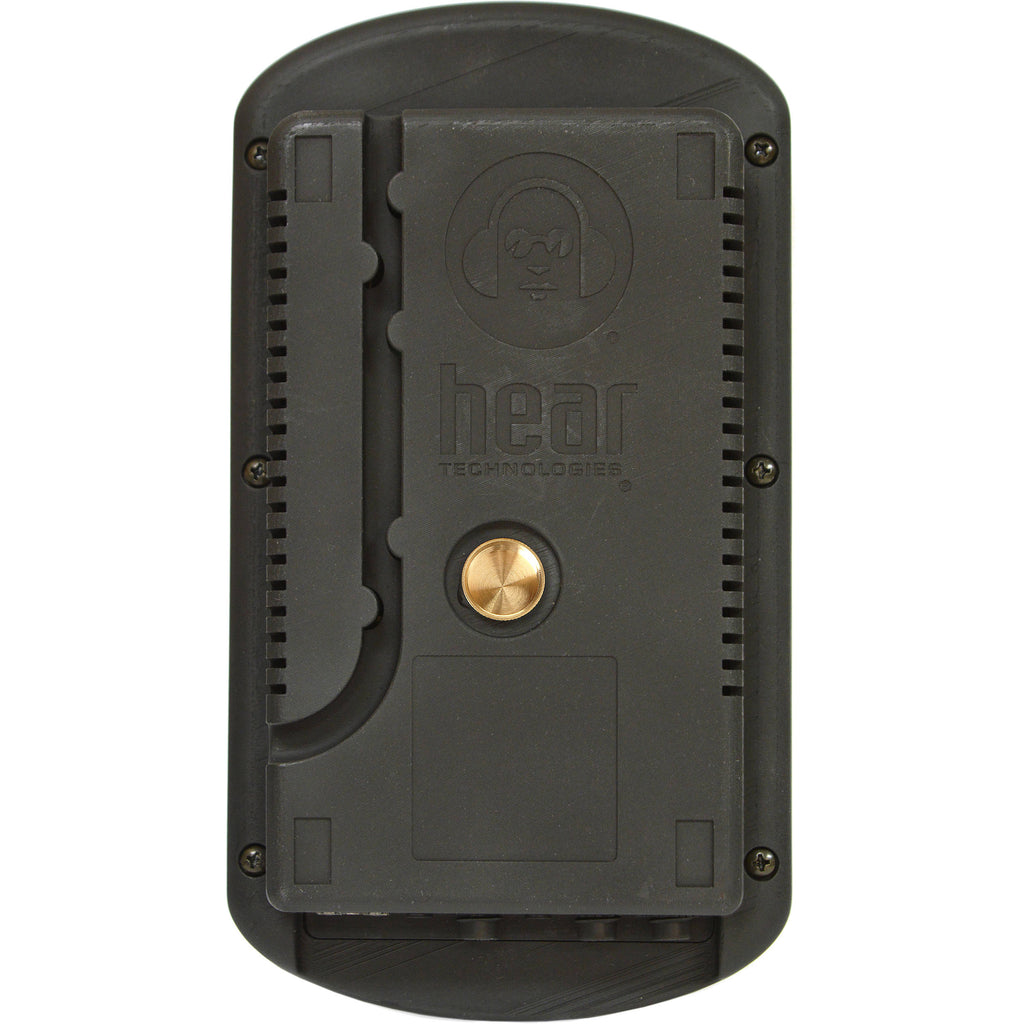

- Built-in 5/8"-27 thread for easy mounting to a mic stand
- Connects to Hear Back OCTO Hub (available separately) via Cat5e
Hear Technologies Hear Back OCTO specs
| Total # Of Inputs | 10 channels |
| Inputs | 1 x RJ45 1 x 1/8" stereo |
| Outputs | 2 x 1/4" balanced line 1 x 1/4" stereo headphone 1 x 1/8" stereo headphone |
| Frequency Response | 20 Hz to 20 kHz ±0.16 dB |
| Dynamic Range | 122 dB typical |
| Noise | -94 dBu via analog input from hub -97 dBu via optical input from hub |
| THD + N | 0.004% typical at 1 kHz, +18 dBu 0.008% typical, 20 Hz to 20 kHz, +4 dBu |
| IMD | Line Outputs: 0.02% typical at +4 dBu, 60 Hz / 7 kHz Headphone Outputs: <0.02% typical |
| Crosstalk | <-85 dB at 1 kHz |
| Latency | <1.5 ms |
| Input Level | +4 dBu optimal +22 dBu maximum |
| Input Impedance | 10 kOhms |
| Output Level | +28 dBu maximum |
| Output Power (per channel) | 8 Ohms: 342 mW with THD <0.01%, 412 mW with THD <0.1% 16 Ohms: 731 mW with THD <0.01%, 783 mW with THD <0.1% 25 Ohms: 1.07 W with THD <0.01%, 1.25 W with THD <0.1% 32 Ohms: 1.37 W with THD <0.01%, 1.6 W with THD <0.1% 50 Ohms: 1.26 W with THD <0.01%, 1.88 W with THD <0.1% 100 Ohms: 971 mW with THD <0.01%, 1.03 W with THD <0.1% 200 Ohms: 512 mW with THD <0.01%, 537 mW with THD <0.1% 600 Ohms: 185 mW with THD <0.01%, 190 mW with THD <0.1% |
| DA Conversion | 24-bit |
| Mounting Hole | 5/8"-27 threaded socket |
| Power | Power supplied from hub (available separately) via Cat5e connection |
| Dimensions (H x W x D) | 5.1 x 9.3 x 2.5" / 13.0 x 23.6 x 6.4 cm |
| Weight | 15.8 oz / 448 g |
- Limited 1-Year Warranty
