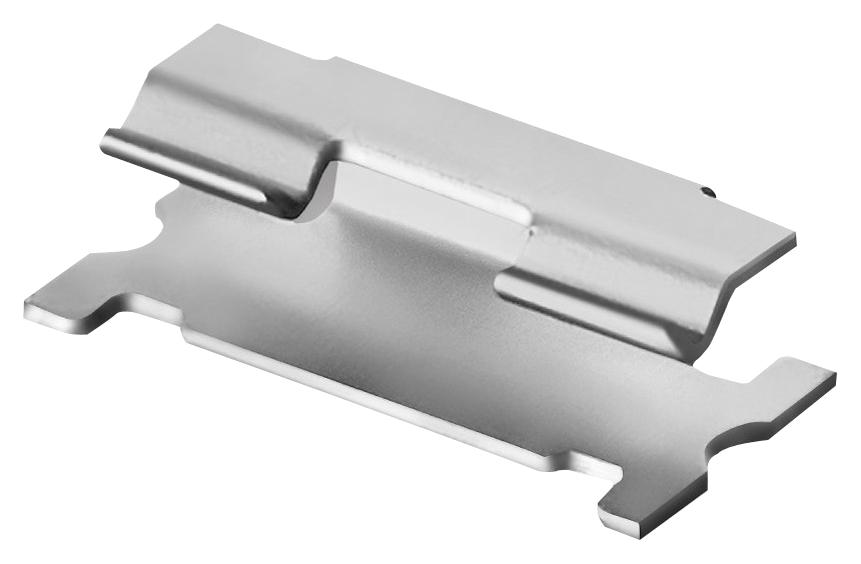

- SMT removable jumper link clip
- Horizontal surface mount clip for removable jumper link applications
- Tin finish
- Use with S07-46 23mm long removable bar or S08-46 15mm long removable bar
- Accepts �0.7mm cross-section
- Operating temperature range from -40°C to 85°C
- Side entry style, one signal contact
- Mating pin size is �0.7mm
- Stainless Steel base material of contact
- 3mm x 1.4mm x 0.84mm overall dimension (L x W x D)
Product details
| Clip Type |
- |
| Clip Diameter |
- |
| Mounting Hole Dia |
- |
| Product Range |
- |
Other details
| Brand |
HARWIN |
| Part Number |
S8081-46R |
| Quantity |
Each |
| Drawing EN |
 |
