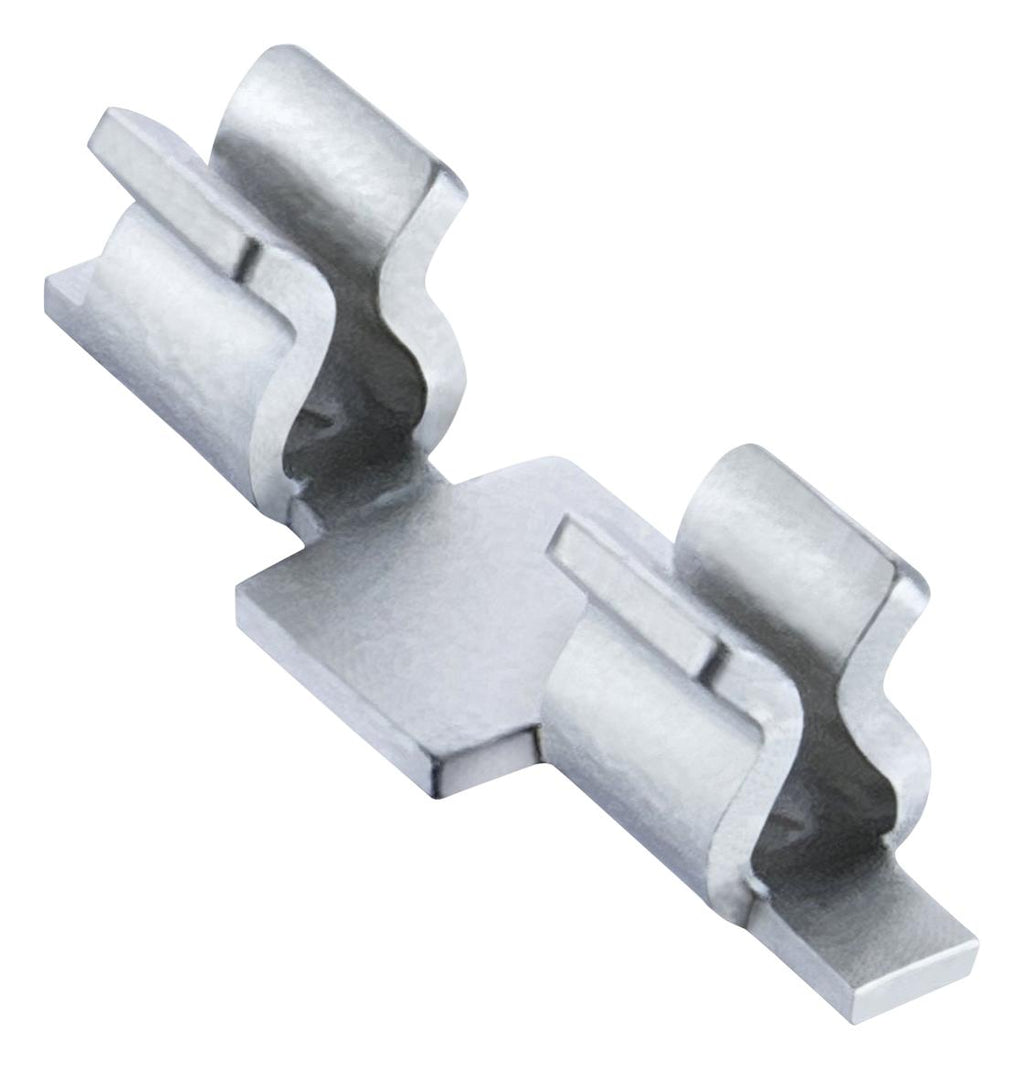

- SMT RFI shield clip for EMI/RFI shields, micro
- Micro size (3.6mm long, 1mm high), for shield thickness 0.135-0.16mm
- Tin finish on contact area and termination
- Recommended for use with S03-10100300, S03-15100300 or S03-30100300 shield cans
- Top entry
- Operating temperature range from -40°C to +85°C
- Vertical connector orientation
- Stainless steel base material of contact
- 3.9mm x 1.1mm x 1mm overall dimension (L x W x D)
Product details
| Clip Type |
RFI Shield Clip |
| Clip Diameter |
- |
| Mounting Hole Dia |
- |
| Product Range |
- |
Other details
| Brand |
HARWIN |
| Part Number |
S0941-46R |
| Quantity |
Each |
| Drawing EN |
 |
