| ₹ 1185.89 includes GST and import duties. | |
| B2B customers can avail ₹ 180.85 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

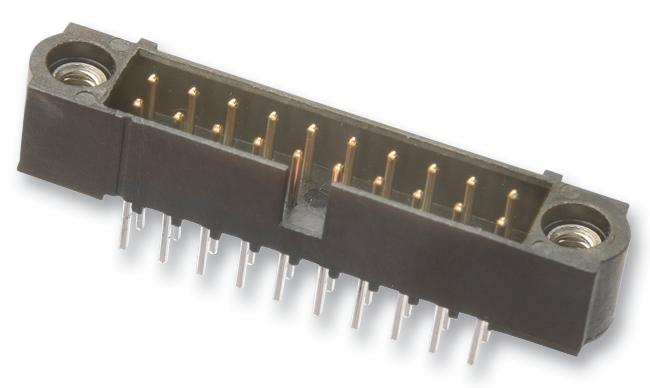

The M80-5001042 is a 10-contact male Datamate J-Tek DIL PCB Plug with black UL94V-0 PPS housing, gold plated phosphor bronze contacts and 100% tin over nickel plated termination. The M80 series connector has jackscrews (without board mount), 3mm PC tail, vertical connector orientation, PC tail/through board connection type and M2 thread size. The connector is intended for use as a low voltage connector in high packing density electronic equipment. The connector is polarised to prevent mismatching and can be produced with a latching feature jackscrew (J-Tek) format.
- 3A (at 25°C), 2.2A (at 85°C) Current rating
- 800VAC/DC Working voltage
- 25mR Maximum contact resistance
- 100MR Minimum insulation resistance
- 500 operations Durability
Industrial
Other details
| Brand | HARWIN |
| Part Number | M80-5001042 |
| Quantity | Each |
| Drawing EN |  |
| 3D Product Image EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1162.17 |
| 3-5 | ₹ 1150.31 |
| 5-10 | ₹ 1126.6 |
| 10+ | ₹ 1102.88 |
Bulk discount will be automatically applied during checkout based on quantity.
