| ₹ 256.34 includes GST and import duties. | |
| B2B customers can avail ₹ 39.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

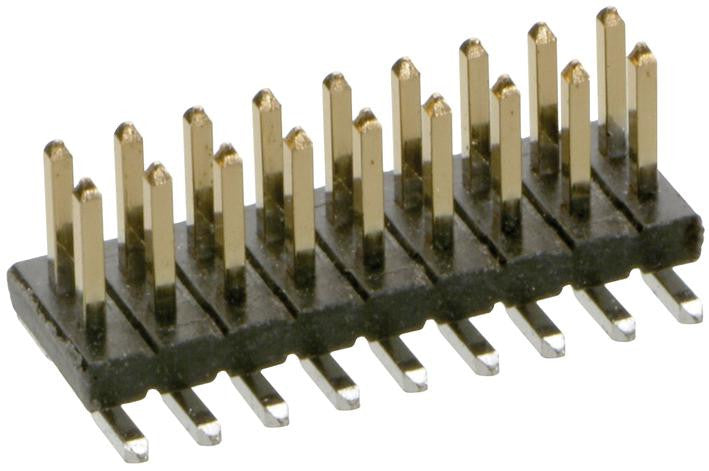

The M50-3600642 is a 12-contact 2-row 1.27mm male Board-to-board Pin Header with gold plated brass contacts, 100% tin over nickel plated termination and black UL94V-0 polyamide (nylon) 6T housing. The M50 series plug has 3mm mating pin height, vertical connector orientation and surface mount (SMT) connection type. It is suitable for use with 0.4mm square mating pin size.
- 1A Current rating
- 20mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 1000VAC for one minute Dielectric withstanding voltage
- 300 cycles minimum Durability
Applications
Commercial, Industrial
Product details
| No. of Contacts | 12Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | Archer M50 Series |
| Contact Material | Copper Alloy |
| Contact Termination Type | Surface Mount |
| Pitch Spacing | 1.27mm |
| No. of Rows | 2Rows |
Other details
| Brand | HARWIN |
| Part Number | M50-3600642 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 251.21 |
| 3-5 | ₹ 248.65 |
| 5-10 | ₹ 243.52 |
| 10+ | ₹ 238.4 |
Bulk discount will be automatically applied during checkout based on quantity.
