Description

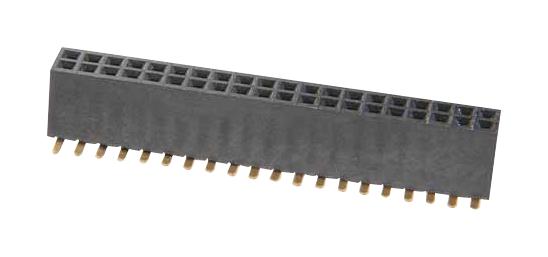

The M50-3102045 is a 40-contact 1.27mm female DIL Board-to-board Socket with gold plated phosphor bronze contacts, gold plated termination and black UL94V-0 LCP housing. The M50 series receptacle has vertical connector orientation, surface mount (SMT) connection type and top entry style. It is suitable for use with 0.4mm square mating pin size.
- 1A Current rating
- 250VAC/DC Working voltage
- 20mR (initial), 30mR (after conditioning) Maximum contact resistance
- 1000MR Minimum insulation resistance
- 300VAC, 500VDC for one minute Voltage proof
- 100 cycles Durability
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M50-3102045 |
| Quantity | Each |
| Product Change Notice EN |  |
| 3D Product Image EN | |
| Drawing EN | |
| Manufacturer Catalogue EN | |
