Description

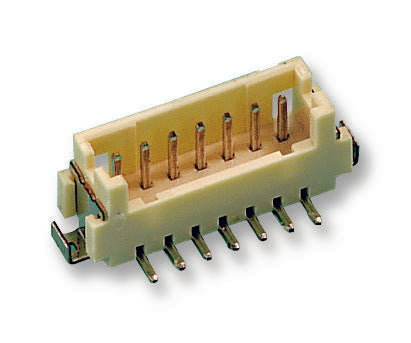

The M30-6000646 is a 6-contact 1.25mm male SIL Wire-to-board Pin Header with 100% tin over nickel plated brass contacts, 100% tin over nickel plated termination and natural UL94V-0 polyamide (nylon) 6T housing. The M22 series receptacle has vertical connector orientation, surface mount (SMT) connection type and windows for bump latches on mating product. It is suitable for use with 0.35mm square mating pin size.
- 1A AC/DC Current rating
- 150VAC/DC Voltage rating
- 30mR Maximum contact resistance
- 500MR Minimum insulation resistance
- 500VAC for one minute Dielectric withstanding voltage
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M30-6000646 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Manufacturer Catalogue EN | |
| 3D Product Image EN | |
