| ₹ 301.2 includes GST and import duties. | |
| B2B customers can avail ₹ 45.93 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

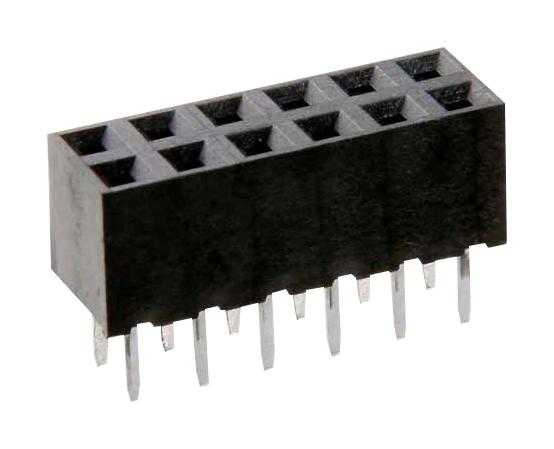

The M22-7140642 is a 12-contact 2mm female DIL Board-to-board Socket with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 LCP housing. The M22 series receptacle has solder tails, vertical connector orientation, PC tail/through board connection type and top entry style. It is suitable for use with 0.5mm square mating pin size. Suitable for interconnecting board to board.
- 2A AC/DC Current rating
- 20mR Maximum contact resistance
- 5000MR Minimum insulation resistance
- 500V AC for one minute Dielectric withstand
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-7140642 |
| Quantity | Each |
| Drawing EN |  |
| Product Change Notice EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 295.18 |
| 3-5 | ₹ 292.16 |
| 5-10 | ₹ 286.14 |
| 10+ | ₹ 280.12 |
Bulk discount will be automatically applied during checkout based on quantity.
