| ₹ 179.48 includes GST and import duties. | |
| B2B customers can avail ₹ 27.37 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

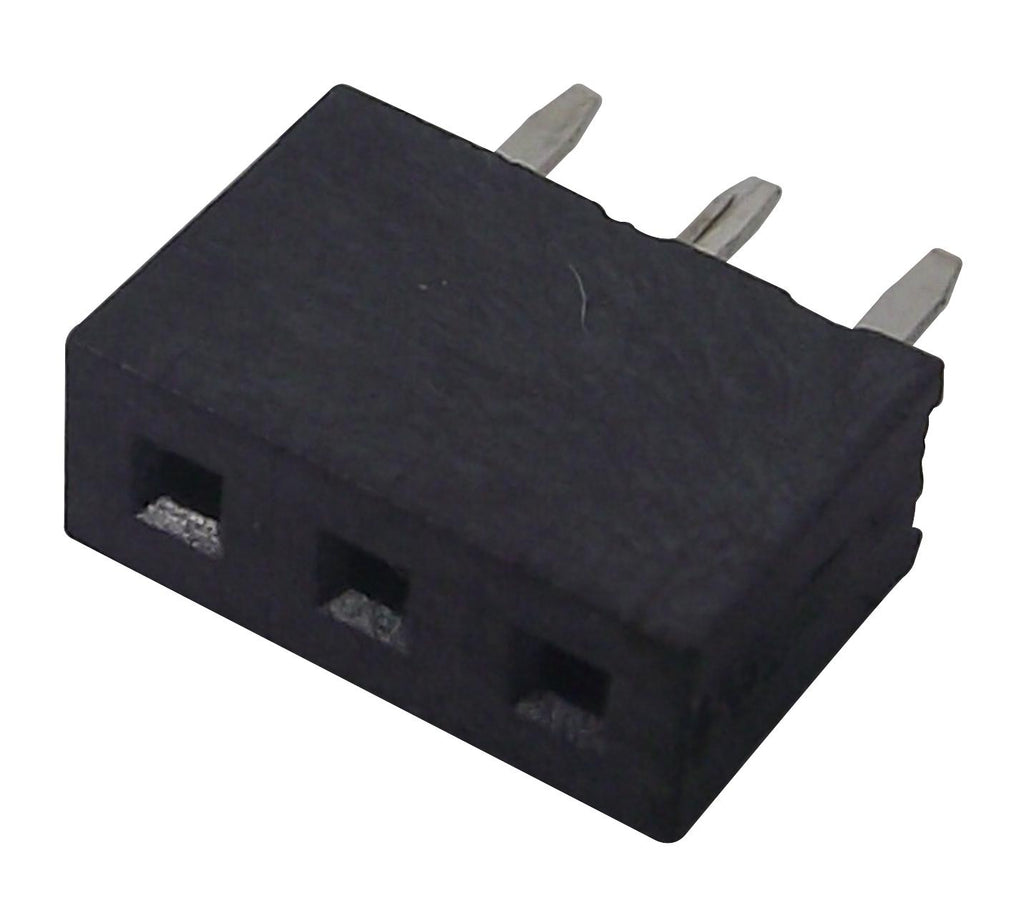

The M22-713 series from Harwin are single row, 2mm pitch SIL vertical sockets.
- Number of contacts varies from 3 to 20 and 25 pin contacts are also available
- Ul94 V-0 black colour liquid crystal polymer moulding
- Twin-leaf phosphor bronze contacts
- Available in gold contact plating
- Current rating of 2A
- Contact resistance is 20mohm maximum
- Insulation resistance of 1000Mohm minimum
- Operating temperature range -25°C to 105°C
- Dielectric withstanding voltage of 500VAC
Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-7131042 |
| Quantity | Each |
| Manufacturer Catalogue EN |  |
| Drawing EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 175.89 |
| 3-5 | ₹ 174.1 |
| 5-10 | ₹ 170.51 |
| 10+ | ₹ 166.92 |
Bulk discount will be automatically applied during checkout based on quantity.
