Description

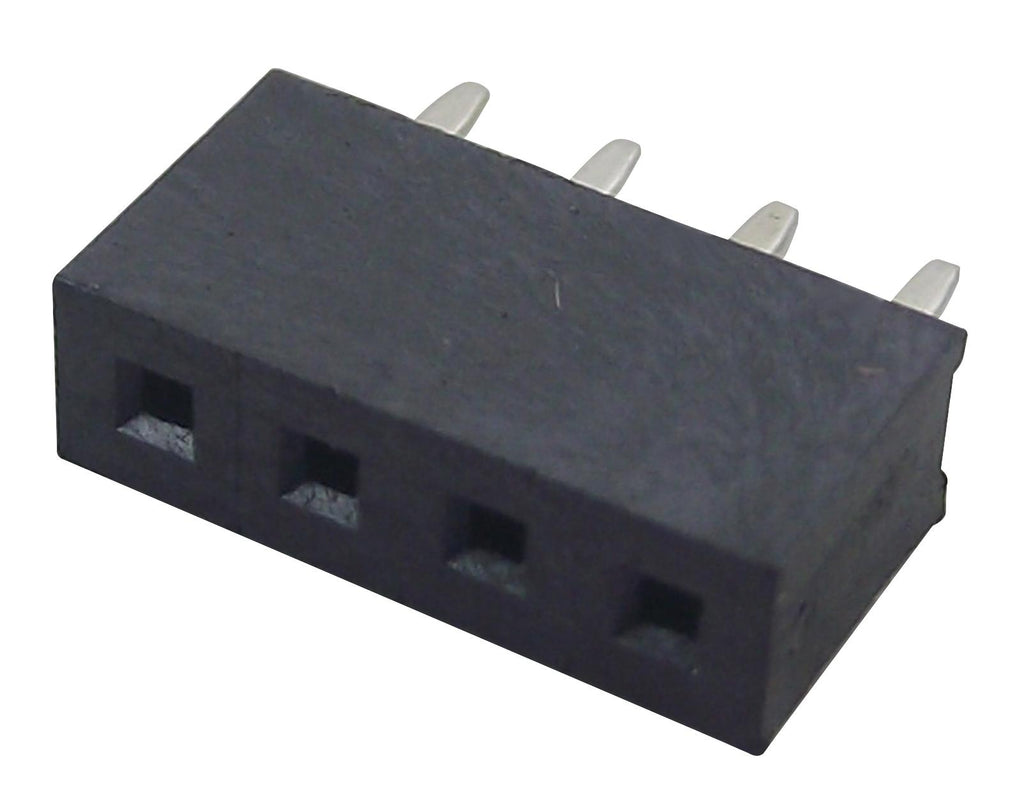

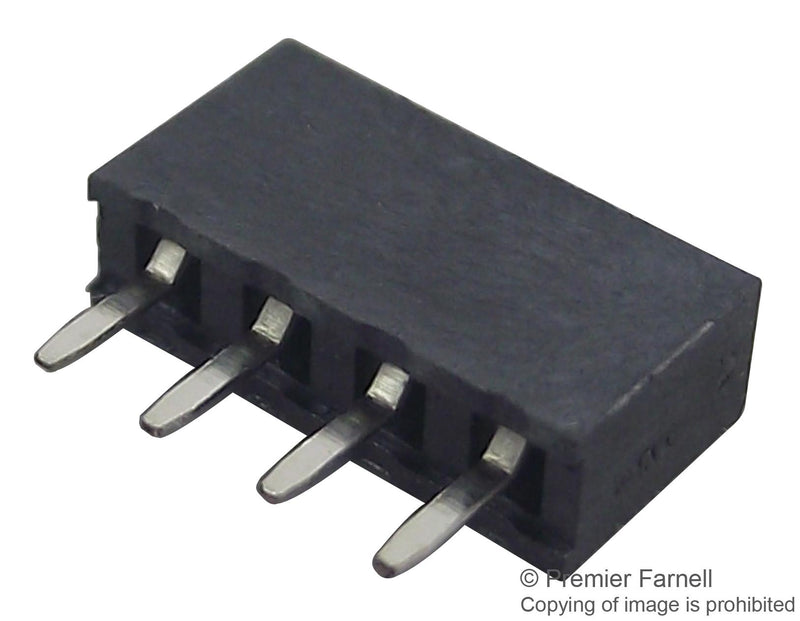

The M22-7130442 is a 4-contact 2mm female SIL Board-to-board Socket with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 LCP housing. The M22 series receptacle has solder tails, vertical connector orientation, PC tail/through board connection type and top entry style. It is suitable for use with 0.5mm square mating pin size. Suitable for interconnecting board to board.
- 2A AC/DC Current rating
- 20mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 500V AC for one minute Dielectric withstand
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-7130442 |
| Quantity | Each |
| 3D Product Image EN |  |
| Product Change Notice EN | |
| Drawing EN | |
| Manufacturer Catalogue EN | |
