₹ 644.45 includes GST and import duties. | |
B2B customers can avail ₹ 98.28 ITC on this product | |
100% Secure Payments | 100% Genuine product |
Description

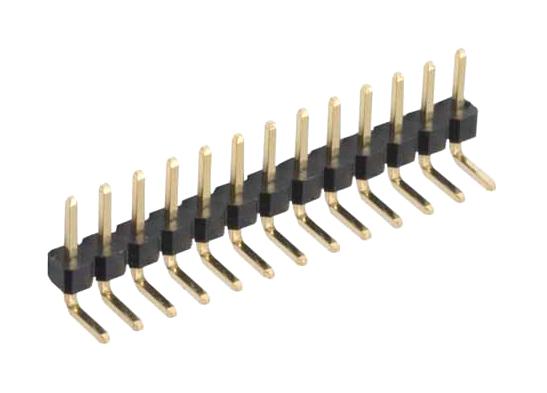

The M22-2035005 is a 50-contact 2mm male SIL Pin Header with gold plated phosphor bronze contacts, gold plated termination and black UL94V-0 polyamide (nylon) 6T housing. The M22 series connector has 3.4mm PC tail, horizontal connector orientation and PC tail/through board connection type. It is suitable for use with 0.5mm square mating pin size.
- 1A Current rating
- 650VAC Voltage proof
- 20mR Maximum contact resistance
- 1000MR (initial) Minimum insulation resistance
- 300 operations Durability
Commercial, Industrial
Other details
Brand | HARWIN |
Part Number | M22-2035005 |
Quantity | Each |
3D Product Image EN | |
Drawing EN | |
Manufacturer Catalogue EN |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 631.56 |
3-5 | ₹ 625.12 |
5-10 | ₹ 612.23 |
10+ | ₹ 599.34 |
Bulk discount will be automatically applied during checkout based on quantity.
