Description

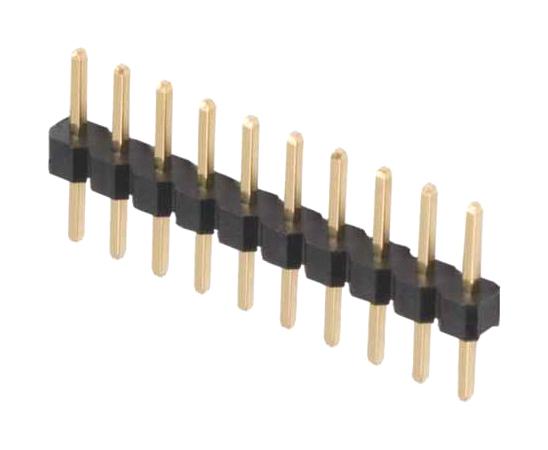

The M22-2015005 is a 50-contact 2mm male SIL Pin Header with gold plated phosphor bronze contacts, gold plated termination and black UL94V-0 polyamide (nylon) 6T housing. The M22 series connector has 3.4mm PC tail, vertical connector orientation, PC tail/through board connection type and side stackable. It is suitable for use with 0.5mm square mating pin size.
- 1A Current rating
- 650VAC/DC Voltage proof
- 15mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 300 operations Durability
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-2015005 |
| Quantity | Each |
| Drawing EN |  |
| 3D Product Image EN | |
| Manufacturer Catalogue EN | |
