Description

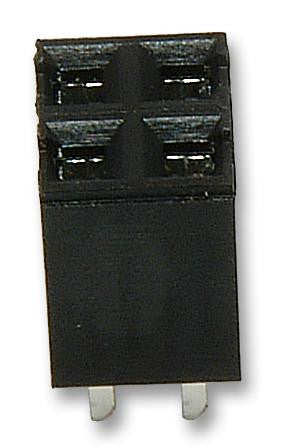

The M20-783 series from Harwin are 2.54mm pitch, double row DIL vertical PC tail sockets.
- Twin-leaf phosphor bronze contacts
- Available in gold and tin contact plating
- Number of contacts varies from 2 to 40 per row
- Ul94 V-0 black colour polyamide (nylon) 6T moulding
- Current rating of 3A
- Contact resistance is 20mohm maximum
- Insulation resistance of 1000Mohm minimum
- Operating temperature range -40�C to 105�C
- Durability of 300 cycles
- Voltage proof of 1000VAC
Applications
Industrial
Product details
| No. of Contacts | 40Contacts |
| Contact Plating | Tin Plated Contacts |
| Gender | Receptacle |
| Product Range | M20 Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | HARWIN |
| Part Number | M20-7832046 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
