| ₹ 2199.55 includes GST and import duties. | |
| B2B customers can avail ₹ 335.43 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

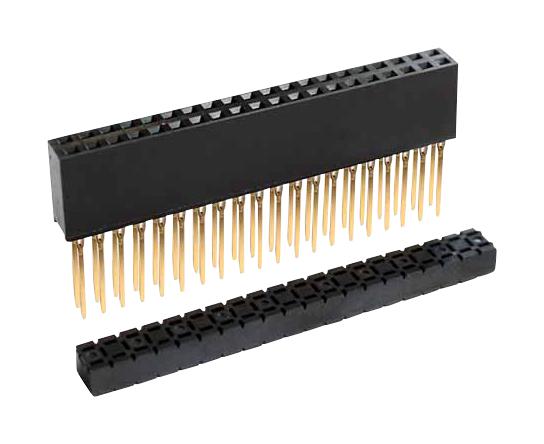

The M20-6152005 is a 64-contact 2-row 2.54mm female PC/104 Non-stackthrough Connector with UL94V-0 high temperature nylon 6T moulding and gold over nickel plated phosphor bronze contact. The M20 series receptacle has solder tails, vertical connector orientation, PC tail/through board connection type, side stackable and top entry style. It is suitable for use with 0.64mm square mating pin size. Industry-standard connector system used in PC/104 Embedded PC module stack applications. The PC/104 module stack is designed to use less space and at a lower cost than an equivalent backplane system, by utilising stackthrough connectors to interconnect PC boards within a stack. Standard height between module boards is 0.6" (15.24mm).
- 3A AC/DC Current rating
- 30mR Contact resistance
- 5000MR Minimum insulation resistance
- 1000VAC for one minute Voltage proof
Industrial, Consumer Electronics
Other details
| Brand | HARWIN |
| Part Number | M20-6152005 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2155.56 |
| 3-5 | ₹ 2133.56 |
| 5-10 | ₹ 2089.57 |
| 10+ | ₹ 2045.58 |
Bulk discount will be automatically applied during checkout based on quantity.
