Product Overview

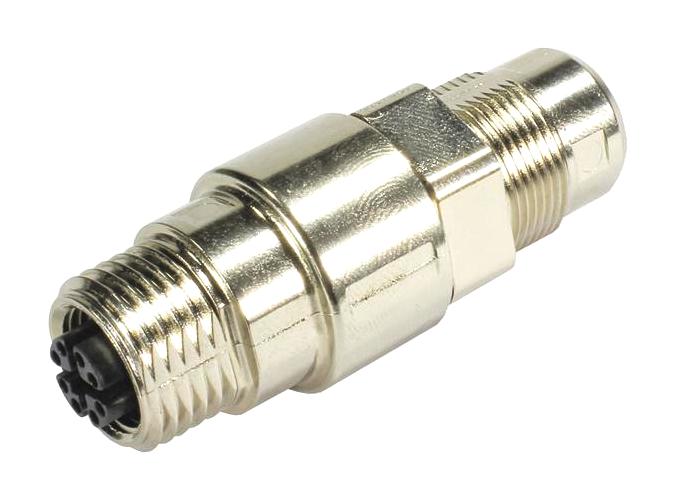

- har-speed M12 gender changer
- Female, 8 poles, X-coding connector 1, screw locking type
- 0.5A rated current, 48VAC/60VDC rated voltage, 10Mbit/s/10Gbit/s data rate
- ?100 mating cycles, IP65 / IP67 mated condition degree of protection acc. to IEC 60529
- Liquid crystal polymer (LCP) material (insert), copper alloy material (contacts)
- Zinc die-cast material (hood/housing), V-0 material flammability class acc. to UL 94
- Limiting temperature range from -40 to +85°C
- IEC 61076-2-109, UL 2238 CYJV2.E302521, CSA-C22.2 No. 182.3 CYJV8.E302521 approvals
Product details
Technical Specifications
For Use With
HARTING har-speed M12 Series Circular Connectors
Accessory Type
Gender Changer
Convert From Gender
Receptacle
Convert To Positions
8Ways
Inter Series Connector A
M12
Convert From Positions
8Ways
Inter Series Connector B
M12
Convert To Gender
Receptacle
SVHC
No SVHC (17-Dec-2015)
Other details
| Brand |
HARTING |
| Part Number |
21033816815 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
