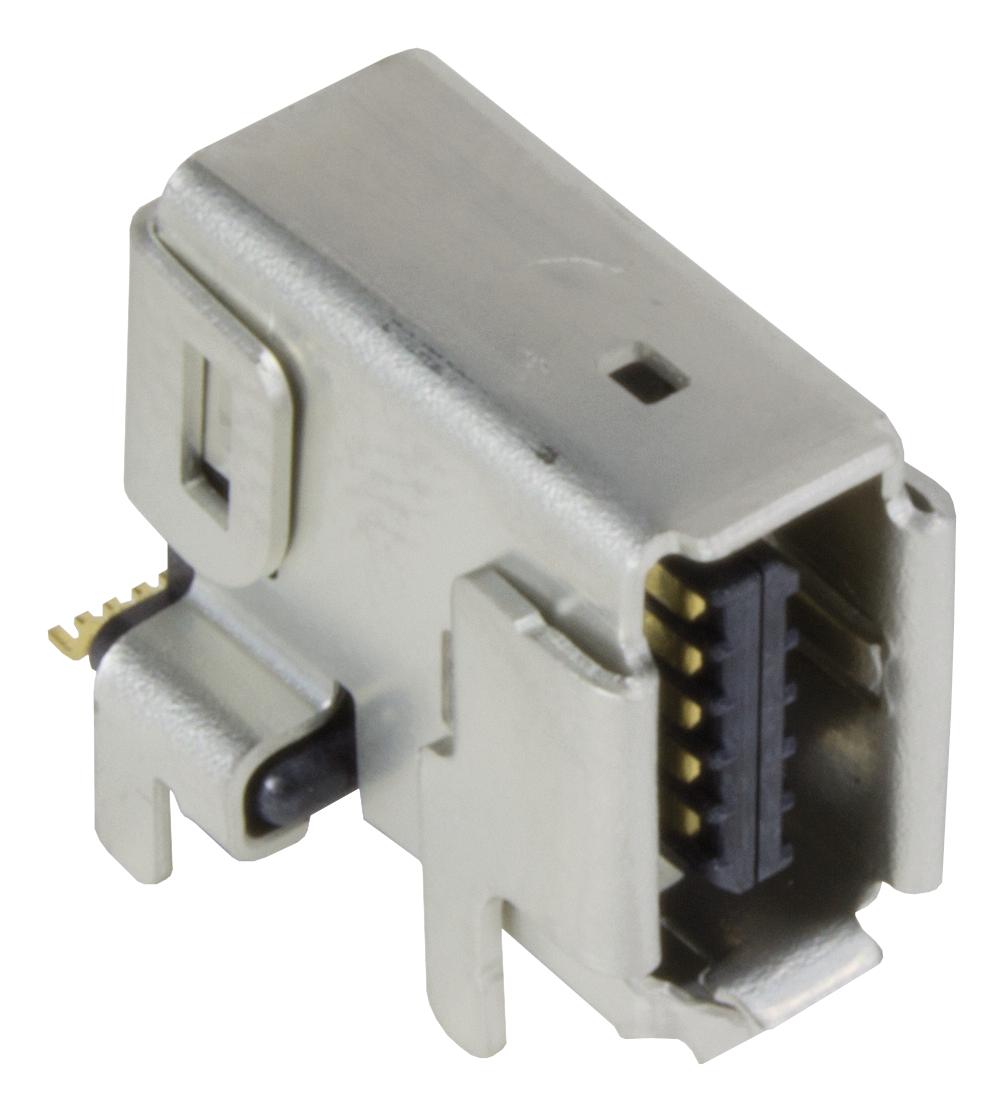

Harting 09452819000 IX Modular Conn Jack 10P10C 1PORT

The HARTING ix Industrial® Series is a robust, miniature Ethernet interface that sets a new standard for IP20 Ethernet connections and has potential to replace the conventional RJ45 connection. Socket sizes have been reduced by 70% compared to the RJ45, enabling manufacturers to use the ix in much smaller devices. Moreover, the ix combines data transmission and power supply into a single interface, further reducing the area required for connectors. The ix connectors are securely locked together by two metal snap-in hooks, ensuring an absolutely secure and vibration-proof connection from the cable to the circuit board for a minimum of 5000 mating cycles. The ix connectors can be used on both ends or mixed, for example, with the ix and the RJ45 connector on opposite ends. This enables a gradual adaptation of individual elements in the control level without the need to directly use totally new components.

• Cat 6A performance for 1/10 Gbit/s Ethernet. 70 % reduced size compared to RJ45
• Safe data transmission - Thanks to its continuous 360° shield design, it guarantees a high immunity to interference, even in EMC-critical applications
• Standardised in accordance with IEC/PAS 61076-3-124
• Conforms to the shock and vibration resistance levels set out in EN 50155 railway specifications

Applications

Communications & Networking, Data / Computing, Industrial, Telecommunications, Transportation

Other details

Brand	HARTING
Part Number	09452819000
Quantity	Each (Supplied on Cut Tape)
Drawing EN
