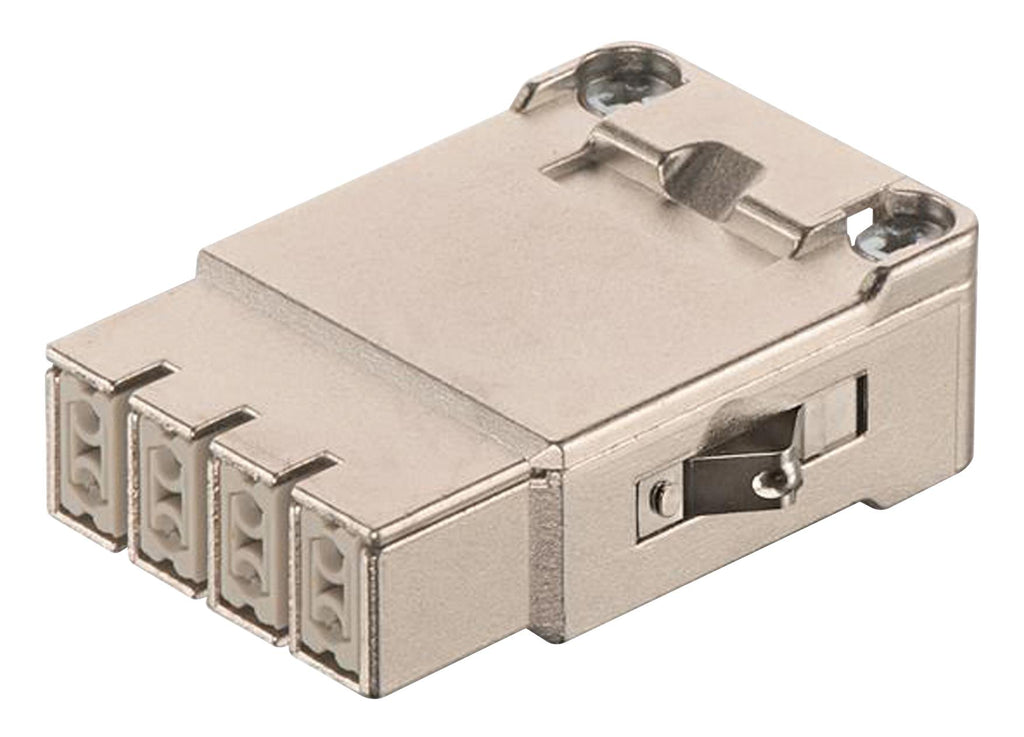

The 09140083111 from Harting is a Han® Gigabit female insert. It is suitable for the transmission of sensitive signals (e.g. bus signals).
- Crimp termination
- 8 contact
- 0.09 to 0.52mm² conductor cross-section
- Voltage rating is 50V, current rating is 5A
- Usable for Gigabit Ethernet cat. 6A
- Limiting temperature range from -40°C to +85°C
- Mating cycles is >= 500
- RAL 7032 (pebble grey) zinc die-cast, nickel plated polycarbonate insert
- Copper alloy contact material
Product details
| Product Range:
Han-Modular
|
| Heavy Duty Connector Type:
Insert
|
| No. of Contacts:
8 Contacts
|
| Rectangular Shell Size:
-
|
| Gender:
Receptacle
(View Associated Connectors)
|
| Heavy Duty Contact Type:
Crimp Socket - Contacts Not Supplied
|
| Current Rating:
5A
|
Other details
| Brand |
HARTING |
| Part Number |
09140083111 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
