Description

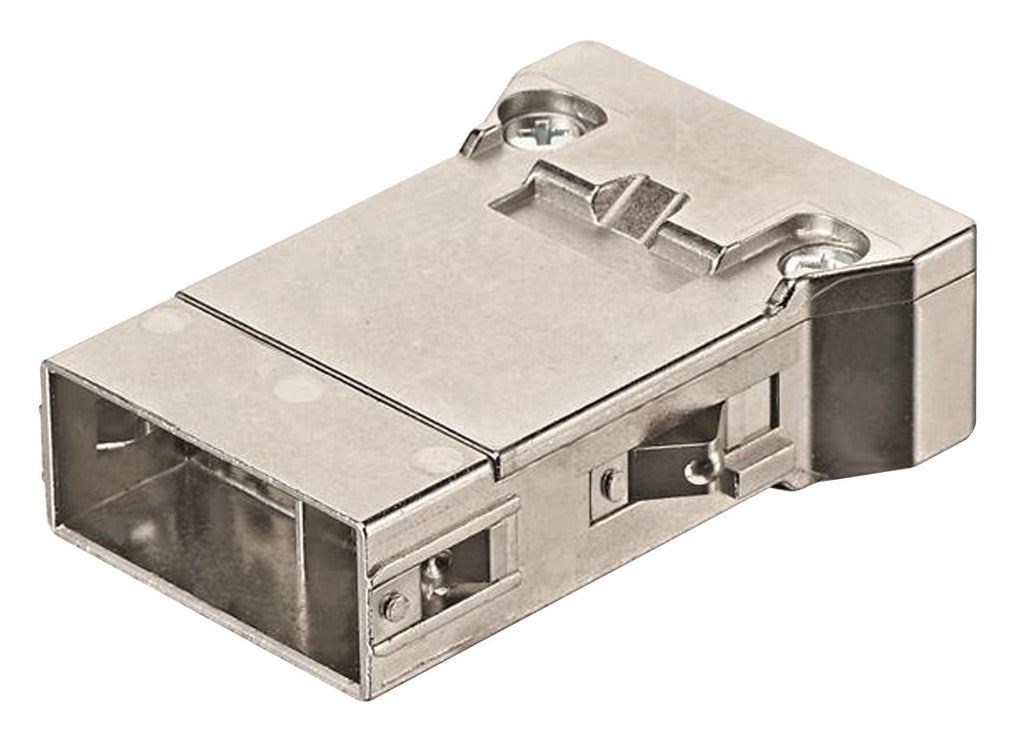

The 09140083017 from Harting is a Han® Megabit male insert.
- Crimp termination
- 2 x 4 contacts, 2 cable entries (with additional shield connection to the hinged frame)
- 0.14 to 2.5mm² conductor cross-section
- Voltage rating is 50V, current rating is 10A
- Limiting temperature range from -40°C to +85°C
- Mating cycles is >=500
- Nickel plated zinc die-cast insert
Other details
| Brand | HARTING |
| Part Number | 09140083017 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
