Description

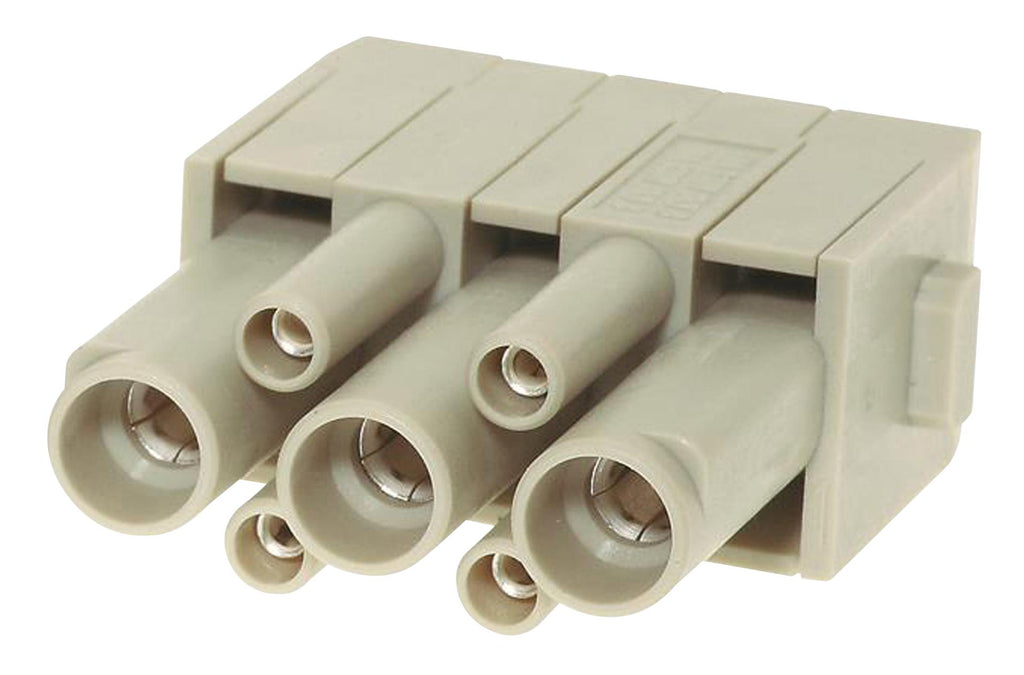

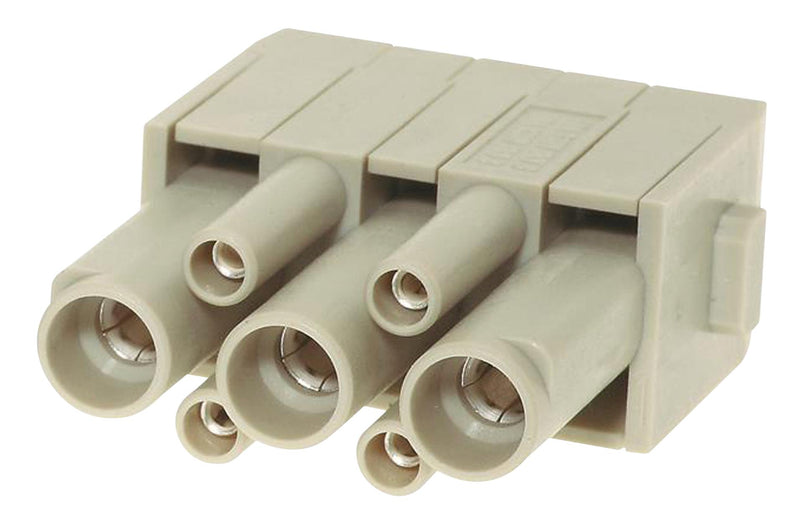

The 09140073101 from Harting is a Han-Modular® female module.
- Han® CD module type
- 3 contacts + 4 additional signal contacts, crimp termination
- 0.14 to 6mm² conductor cross-section
- Voltage rating is 830V, current rating is 40A
- Voltage rating is 830V, current rating is 10A (signal)
- Mating cycles is >=500
- Limiting temperature range from -40°C to +125°C
- RAL 7032 (pebble grey) polycarbonate insert
Other details
| Brand | HARTING |
| Part Number | 09140073101 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Drawing EN | |
