Description

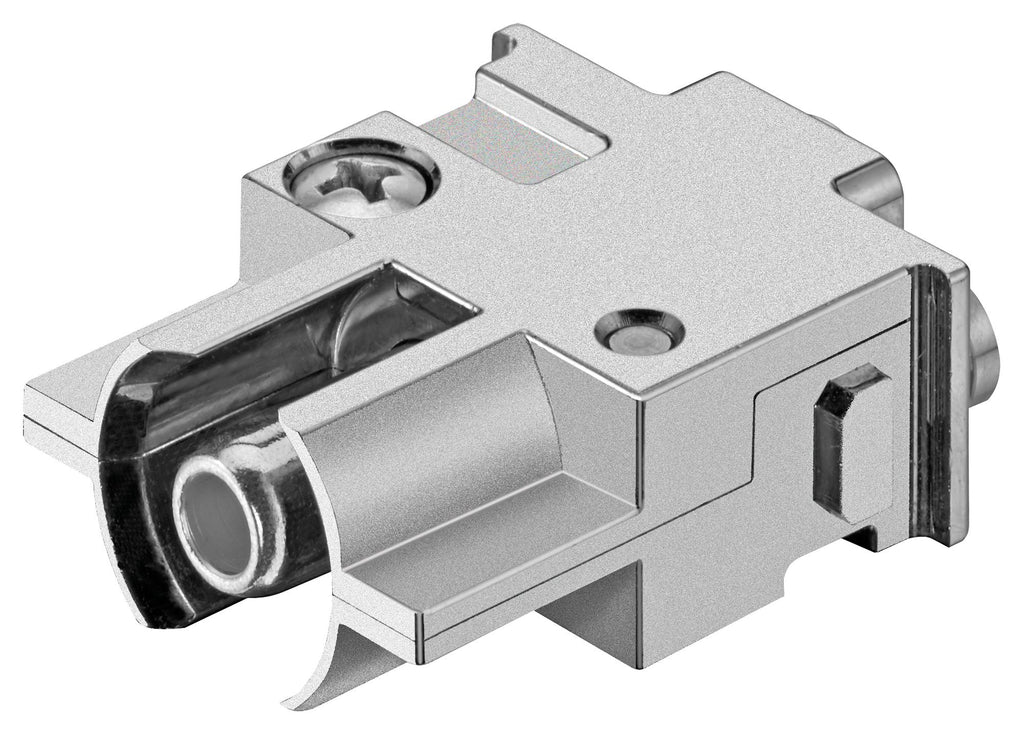

The 09140012632 from Harting is a Han® PE module male contact with axial screw termination.
- PE module with pre-assembled axial screw contact
- Cross-section area 10mm² to 25mm²
- Contact resistance is greater than 0.3mohm
- Limiting temperature range from -40°C to +125°C
- Stripping length is 13mm
- Mating cycles is greater than 500
- Zinc die-cast, nickel-plated insert
- Copper alloy with silver plated contact
Industrial
Other details
| Brand | HARTING |
| Part Number | 09140012632 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Installation Instructions EN | |
| CAD Multiple Formats EN | |
| Drawing EN | |
| Product Change Notice EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3390.71 |
| 3-5 | ₹ 3356.11 |
| 5-10 | ₹ 3286.91 |
| 10+ | ₹ 3217.72 |
Bulk discount will be automatically applied during checkout based on quantity.
