Description

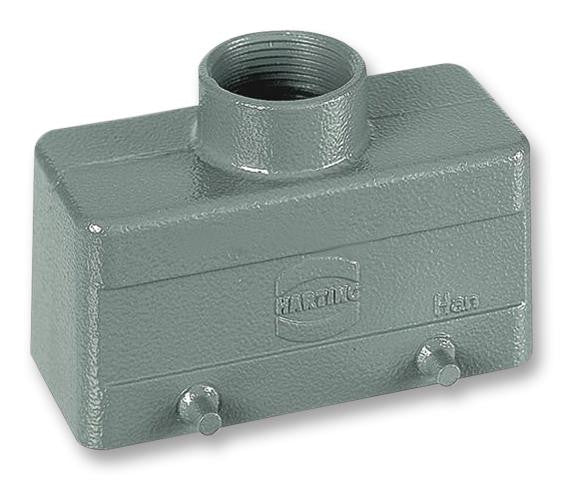

The 09300161420 is a Connector Hood made of gray RAL 7037 aluminum die-cast with powder-coated surface. It comes with a polycarbonate/stainless steel double locking lever and NBR seal. The low construction connector hood is suitable for use with the Han� B series.
- Double locking lever
- Top cable entry (PG 21)
- UL94V-0 Flammability rated locking lever
- NEMA type 4/4X/12 Protection class
- IP65 Protection rating
- -40 to 125�C Temperature range
Applications
Industrial
Product details
| Rectangular Shell Size | 16B |
| Locking Type | 2 Lever |
| Product Range | Han B Series |
| For Use With | Han 16B Inserts & Bases |
| Cable Exit Angle | 180� |
| Connector Body Material | Aluminium Body |
Other details
| Brand | HARTING |
| Part Number | 09 30 016 1420 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
