| ₹ 3246.3 includes GST and import duties. | |
| B2B customers can avail ₹ 495.06 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

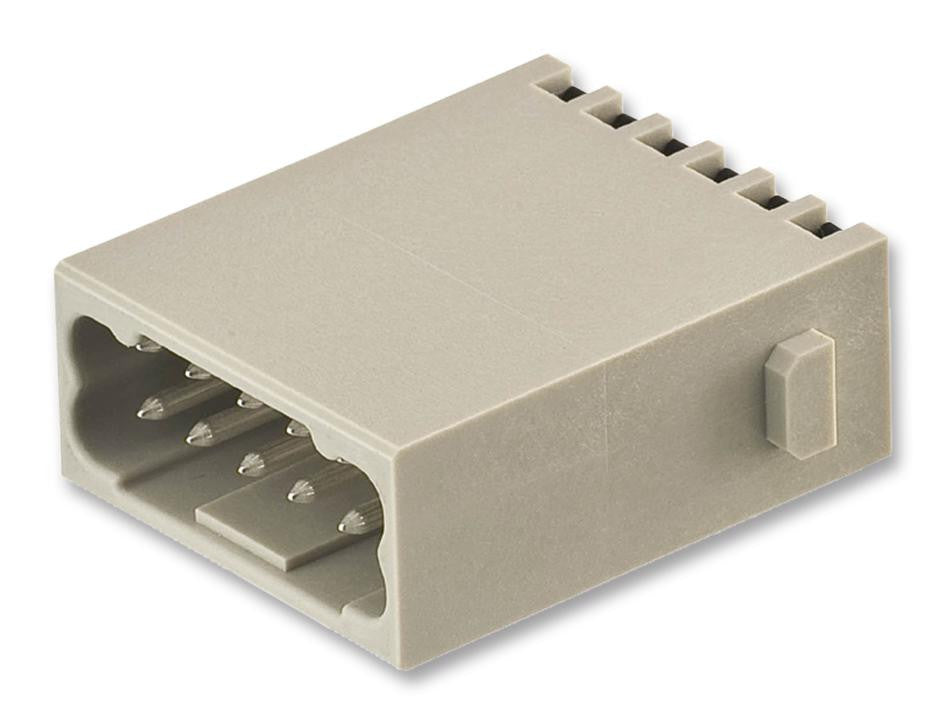

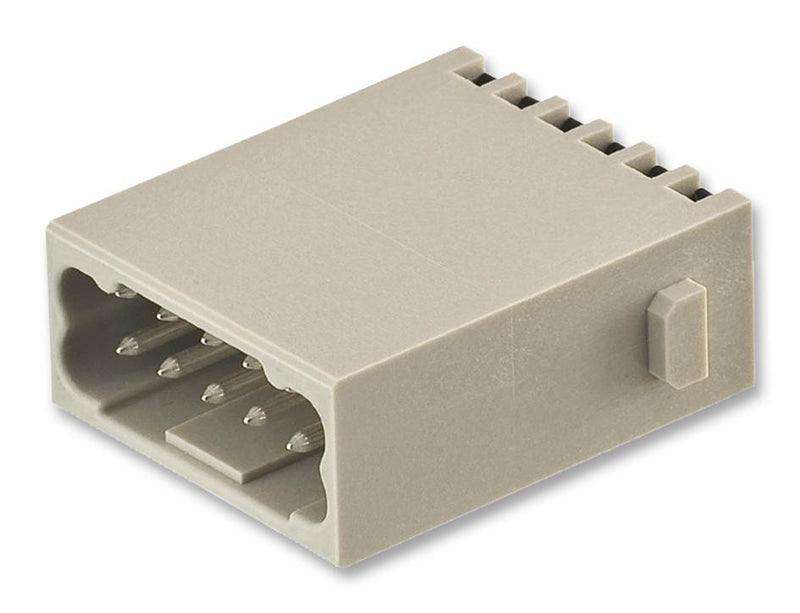

The 09 14 012 2632 is a 12-position 2-row rectangular Han DD Quick-Lock Male Module, Han-Modular® series, black slide, 0.25 to 1.5mm² wire cross section area with Han-Quick Lock® termination. Polycarbonate insert with silver plated copper alloy contacts.
- UL94V-0 Flammability rating
- Reduced wiring times
Applications
Industrial
Product details
| No. of Contacts | 13Contacts |
| Wire Size AWG Max | 16AWG |
| Contact Plating | Silver Plated Contacts |
| Gender | Plug |
| Current Rating | 10A |
| Product Range | Han-Modular DD Series |
| Contact Material | Copper Alloy |
| Wire Size AWG Min | 24AWG |
Other details
| Brand | HARTING |
| Part Number | 09 14 012 2632 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3181.37 |
| 3-5 | ₹ 3148.91 |
| 5-10 | ₹ 3083.99 |
| 10+ | ₹ 3019.06 |
Bulk discount will be automatically applied during checkout based on quantity.
