Description

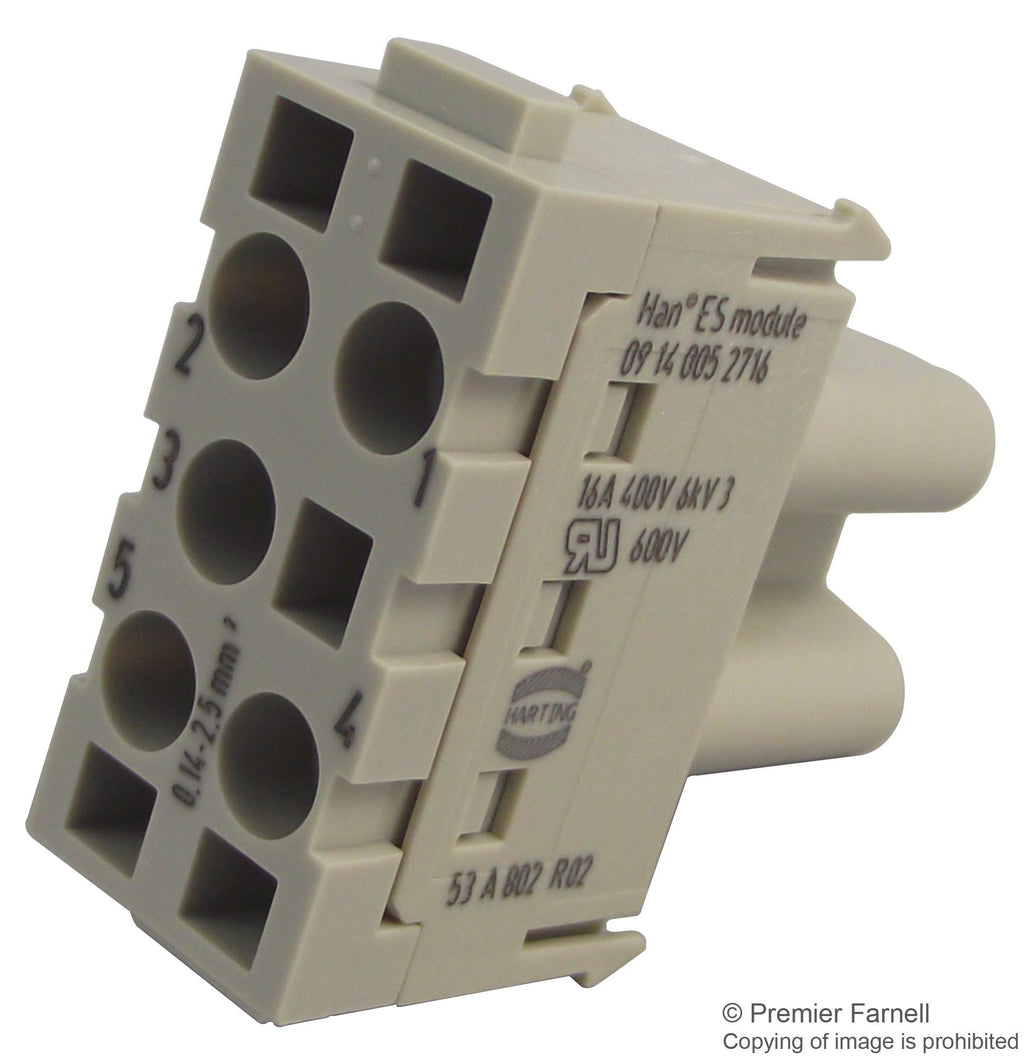

The 09140052716 is a female Han ES Module with cage-clamp terminal. It accepts 26 to 14AWG wire. The module comes with copper alloy contacts and polycarbonate insert.
- 16A Rated current
- 400V Rated voltage
- -40 to 125�C Limiting temperature range
Applications
Industrial, Power Management
Product details
| No. of Contacts | 5Contacts |
| Wire Size AWG Max | 14AWG |
| Contact Plating | Silver Plated Contacts |
| Gender | Receptacle |
| Current Rating | 16A |
| Product Range | Han-Modular ES Series |
| Contact Material | Copper Alloy |
| Wire Size AWG Min | 26AWG |
Other details
| Brand | HARTING |
| Part Number | 09 14 005 2716 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
