| ₹ 1541.35 includes GST and import duties. | |
| B2B customers can avail ₹ 235.06 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

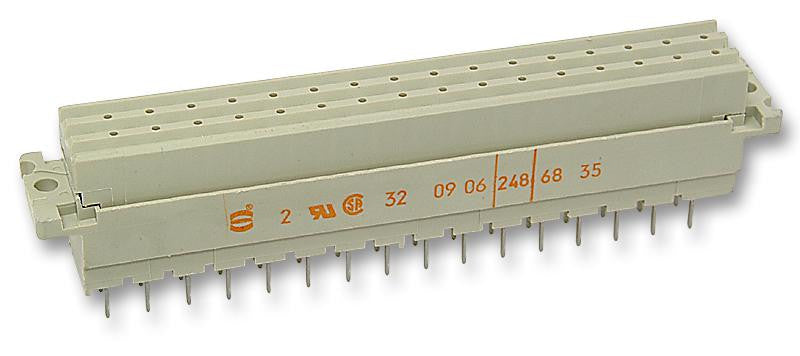

The 09 06 248 683400 is a 48-position 3-row female DIN 41612 Power Connector with snap-in clips, flange, type F, 5.08mm pitch, solder termination and solder length 4.5mm. Gold over nickel plated copper alloy contacts. The DIN 41612 connector is the standard for board-to-board and cable-to-board connections as both data and power connectors. HARTING offers a wide range of standard connectors complying with DIN 41612 and IEC 60 603-2. Depending on the application, the 3 to 160 way connectors are offered with various termination methods, each contact capable of carrying from 2A to 40A. HARTING differentiates between DIN Signal and DIN Power connectors depending on the maximum allowed working current per contact up to 2A for DIN Signal and over 2A for DIN Power connectors. HARTING's range har-bus� 64 features 160 contacts and is an extension of the 3 row 96 way DIN 41612 C type range with 2 additional rows.
- PL 2 according to IEC 60603-2 400 mating cycles
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| No. of Contacts | 48Contacts |
| No. of Rows | 3 Row |
| No. of Mating Cycles | 400 |
| Rows Loaded | z + b + d |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | Type F Series |
| Contact Material | Copper |
| Pitch Spacing | 5.08mm |
Other details
| Brand | HARTING |
| Part Number | 09 06 248 683400 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1510.52 |
| 3-5 | ₹ 1495.11 |
| 5-10 | ₹ 1464.28 |
| 10+ | ₹ 1433.46 |
Bulk discount will be automatically applied during checkout based on quantity.
