| ₹ 583.5 includes GST and import duties. | |
| B2B customers can avail ₹ 88.98 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

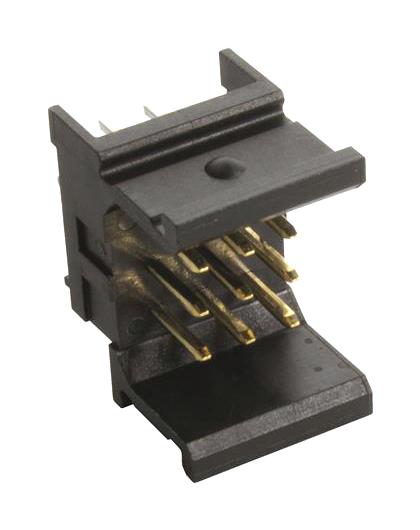

- har-modular® male straight C9-module
- Reflow soldering termination (THR), wave soldering termination
- Mezzanine connection type, F1/I2 acc. to NFF 16-101/102 railway classification
- 9 signal contacts, 4.8mm termination length
- Performance level 1 according to IEC 60603-2
- 2.54mm contact spacing (mating side), straight leading contact position a3
- 2A rated current
- Limiting temperature range from -55 to +125°C (during reflow soldering max +240°C for 15s)
- >=500 mating cycles, I (600 <= CTI) isolation group
- Polyamide (PA) material (insert), black colour (insert), copper alloy material (contacts)
Other details
| Brand | HARTING |
| Part Number | 02539091103 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
| Installation Instructions EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 571.83 |
| 3-5 | ₹ 566.0 |
| 5-10 | ₹ 554.33 |
| 10+ | ₹ 542.66 |
Bulk discount will be automatically applied during checkout based on quantity.
