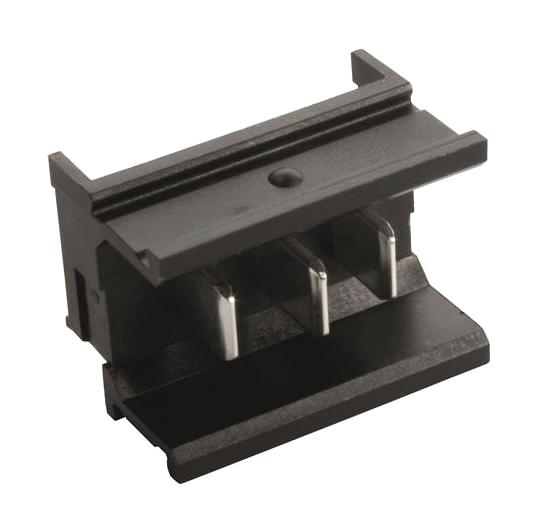

- har-modular® male straight H3-module
- Reflow soldering termination (THR), wave soldering termination
- Mezzanine connection type, F1/I2 acc. to NFF 16-101/102 railway classification
- 3 power contacts, 4.8mm termination length
- Performance level 1 according to IEC 60603-2
- 5.08mm contact spacing (mating side), straight contact (leading contact position 2)
- 15A rated current
- Limiting temperature range from -55 to +125°C (during reflow soldering max +240°C for 15s)
- >=500 mating cycles, I (600 <= CTI) isolation group
- Polyamide (PA) material (insert), black colour (insert), copper alloy material (contacts)
Other details
| Brand |
HARTING |
| Part Number |
02539031301 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
| Installation Instructions EN |
|
