Description

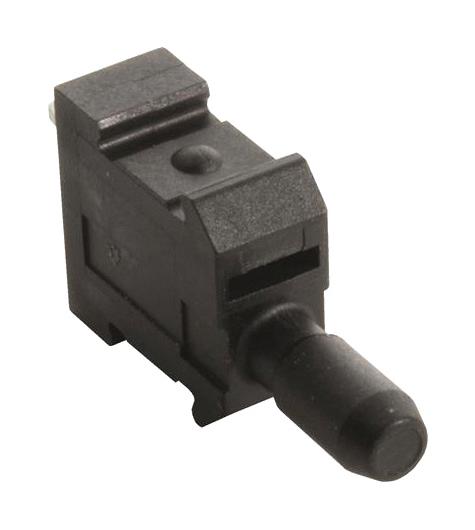

- har-modular® female straight P module with clip
- Connection type is motherboard to daughtercard, mezzanine
- Limiting temperature range from -55 to +125°C
- >=500 mating cycles
- I (600 <= CTI) isolation group
- Black polyamide (PA) material (insert)
- Material flammability class according to UL 94 V-0
- Length is 5.08mm
- Railway classification F1/I2 acc. to NFF 16-101/102
- PCB fixing with board locks
Other details
| Brand | HARTING |
| Part Number | 02529000002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Drawing EN | |
| Installation Instructions EN | |
