Description

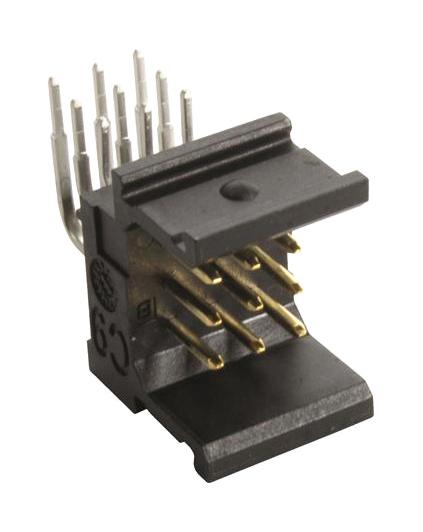

- har-modular® male angled C9-module
- Reflow soldering termination (THR), wave soldering termination
- Motherboard to daughtercard connection type, F1/I2 acc. to NFF 16-101/102 railway classification
- 9 signal contacts, 3mm termination length
- Performance level 1 according to IEC 60603-2
- 2.54mm contact spacing (mating side), angled contact (leading contact position a3)
- 2A rated current
- Limiting temperature range from -55 to +125°C (during reflow soldering max +240°C for 15s)
- >=500 mating cycles, I (600 <= CTI) isolation group
- Polyamide (PA) material (insert), black colour (insert), copper alloy material (contacts)
Other details
| Brand | HARTING |
| Part Number | 02519091103 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
| Installation Instructions EN | |
