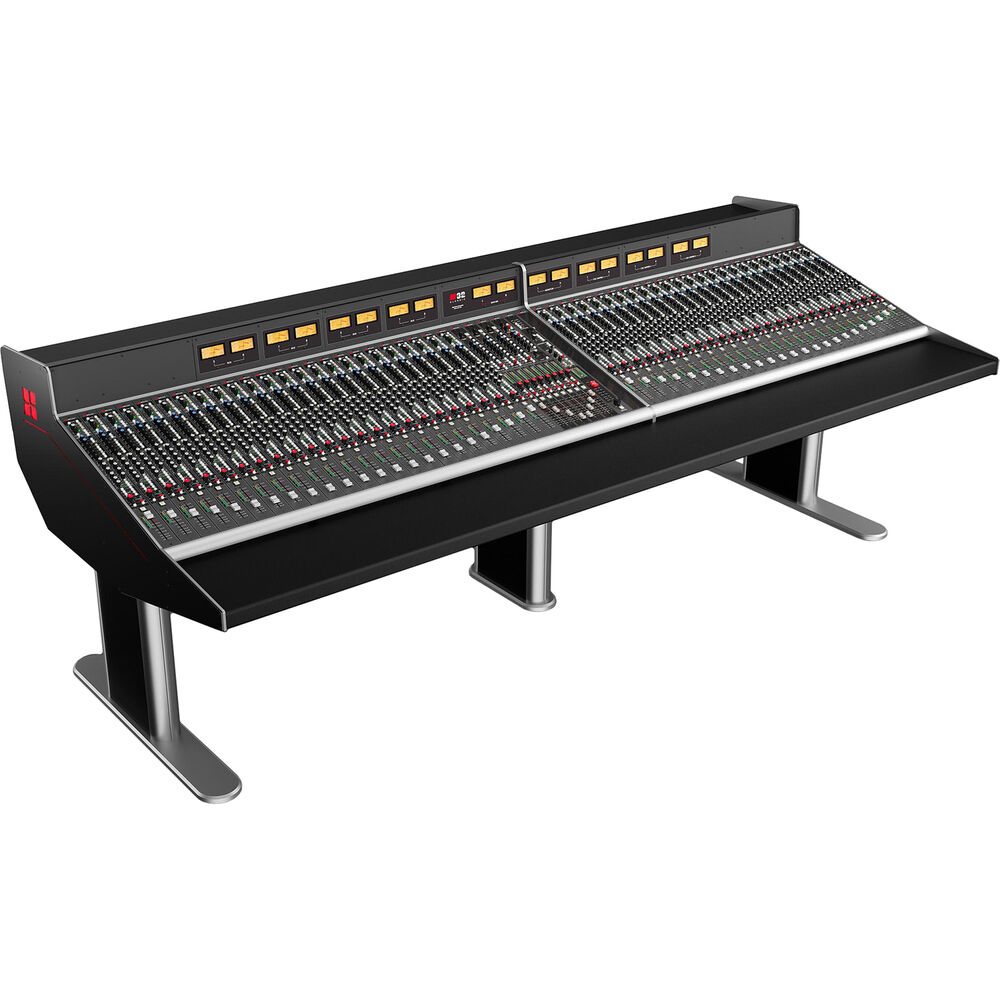

Harrison Audio 32Classic 5448 48-Channel In-Line Recording/Mixing Console with Dante

The Harrison Audio 32Classic 5448 48-Channel In-Line Recording/Mixing Console with Dante delivers a hybrid modular architecture, purpose-built to support both traditional analog workflows and modern hybrid studio configurations. At its core lies the unmistakable Harrison sonic signature?refined, musical, and deeply rooted in decades of console-design legacy. This version has a built-in 96x96 full Dante digital interface.

Each of the 48 mono mic/line input channels features the renowned 32C 4-band parametric EQ, offering precise tonal shaping with a musical touch. Fully sweepable high-pass and low-pass filters provide additional control over spectral content. Premium Jensen JT-MB-CPCA input transformers are deployed throughout the signal path, imparting rich harmonic character and dynamic nuance. Vintage-style VU meters offer classic visual feedback. Whether in a legacy tracking room or a cutting-edge hybrid setup, the 32Classic is engineered to be the sonic centerpiece of any high-performance studio.

The 32Classic frame is designed to facilitate use with DAWs. The full-length front armrest is deep enough to accommodate a keyboard and mouse or trackball with room to spare. The top of the console is flat with ample room for multiple video monitors and nearfield monitor speakers. Clean installation is ensured by having all power, network, and audio wiring hidden in the console legs.

The 32Classic provides a flexible busing and routing architecture. Each channel can route to any of 8 Bus master channels that can be used in mono or stereo configuration, any of 5 Auxiliary buses (4 mono and 1 stereo), or directly to the Main Mix stereo bus with transformers.

The 32Classic incorporates In-Line record status mode, which allows the input source signal to feed directly to a DAW with a separate Playback path for monitoring and for feeding headphones and/or studio monitors via a flexible alternate output matrix.

The 32Classic 5448 with Dante offers fully integrated DAW support featuring onboard professional-grade A/D and D/A converters along with 96x96 I/O Audinate Dante network interfacing. Dante networking replaces the traditional tape recorder interface of classic analog consoles with a single Ethernet cable, to connect a computer running your favorite DAW software.

Connection flexibility is provided with analog interfacing to external recorders or other equipment, and even a mixed analog/Dante installation is easily accommodated.

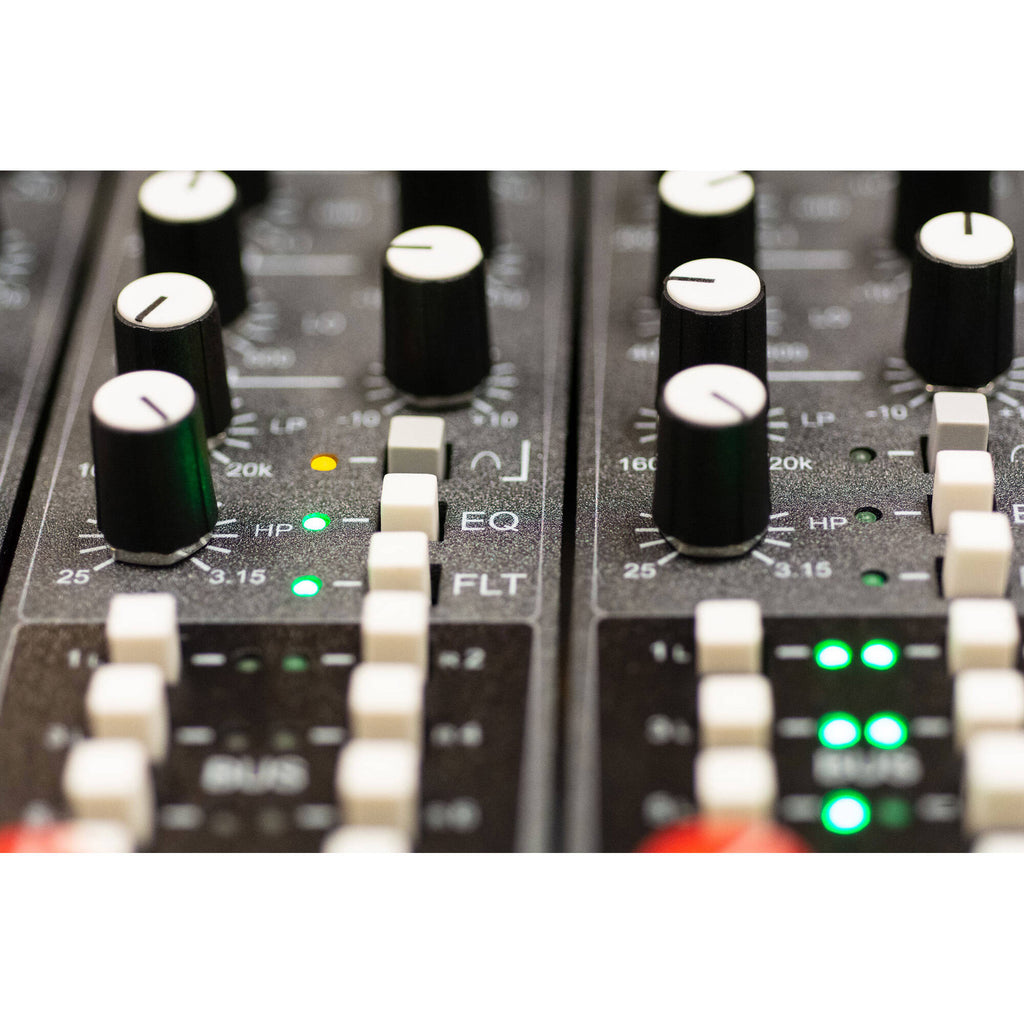

• Classic 32C 4-band EQ
• Legendary Harrison HP and LP filters
• Transformer-balanced mic preamplifier
• Transformer-balanced main mix output

• In-line or split recording/monitoring status

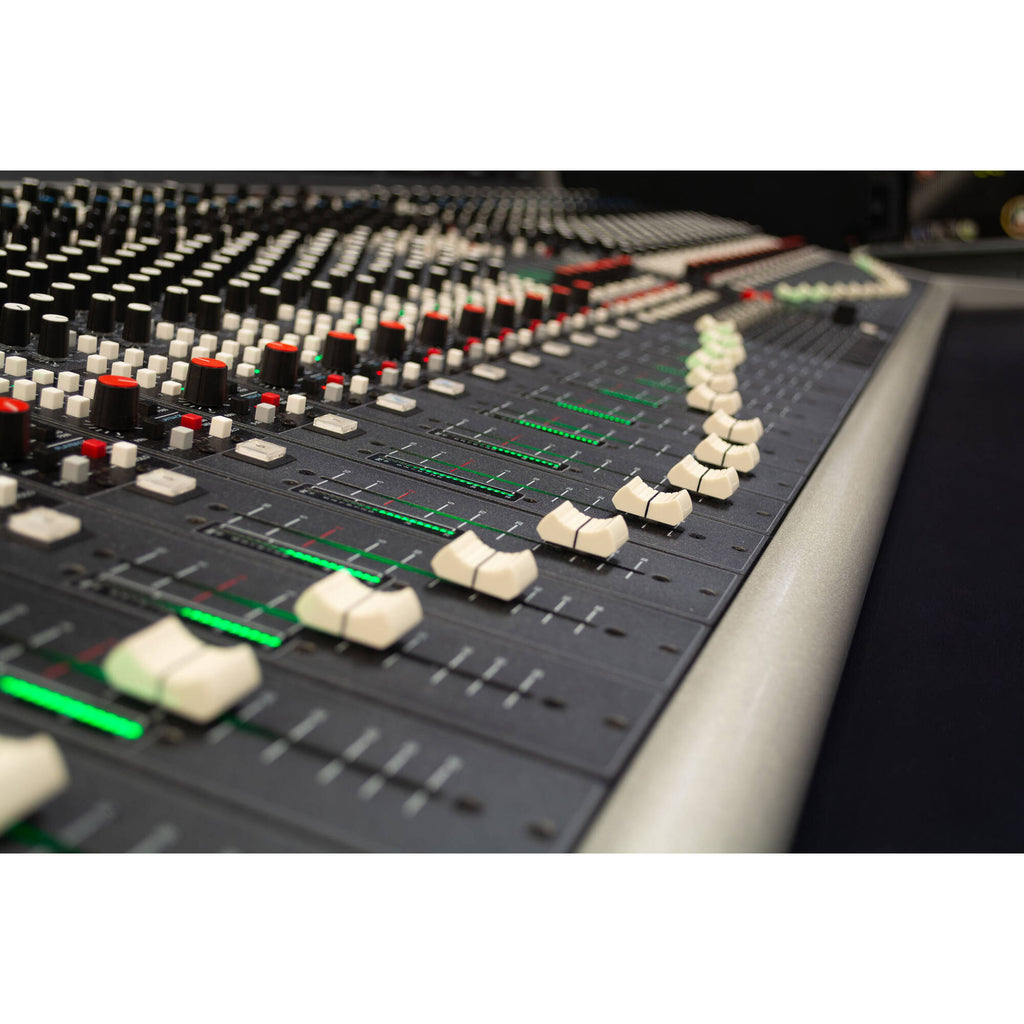

• 100mm premium faders, 0 dB fader lock
• Instrument input fed from center section
• 8 multitrack buses

• 4 aux sends
• Stereo cue send
• 3 foldback/cue master outputs
• 2 external monitor inputs
• Standard D-sub audio I/O connectors

• Balanced stereo return with meter

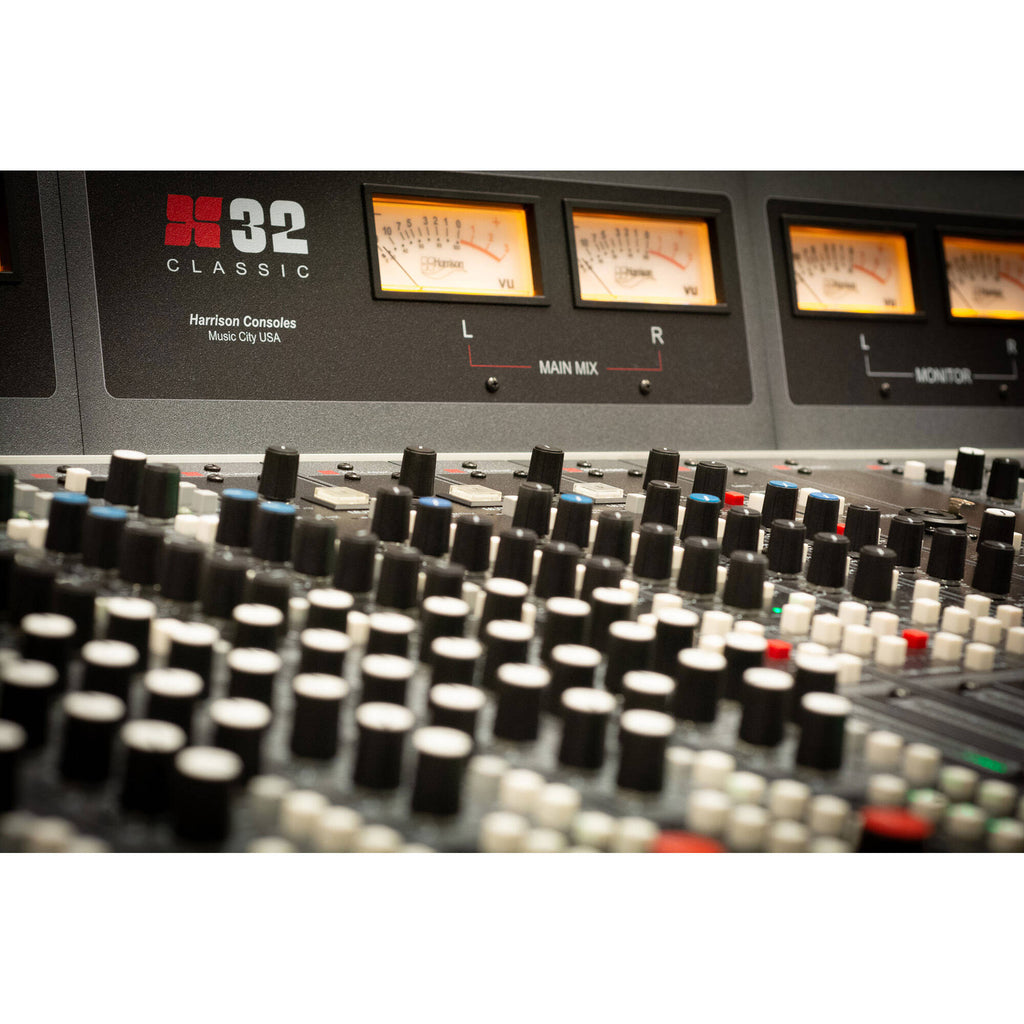

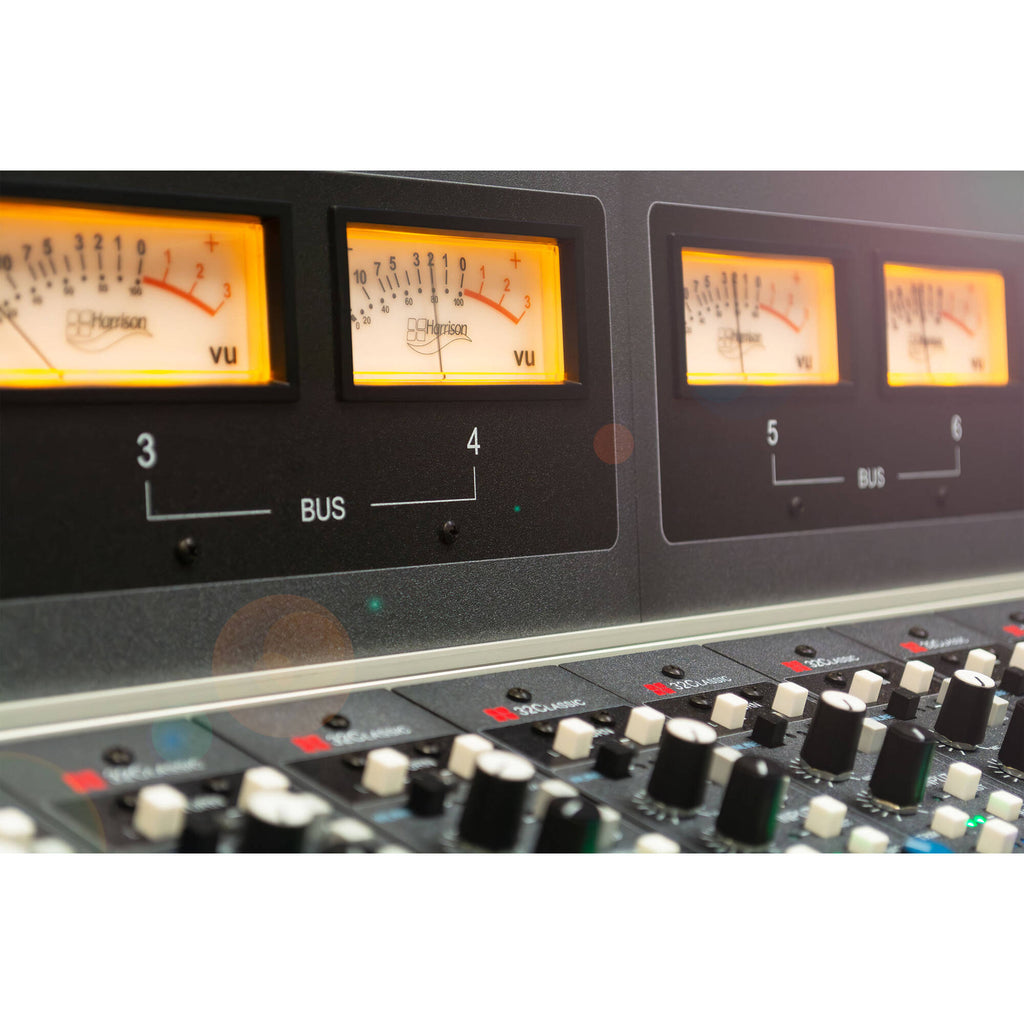

• Large analog VU output meters

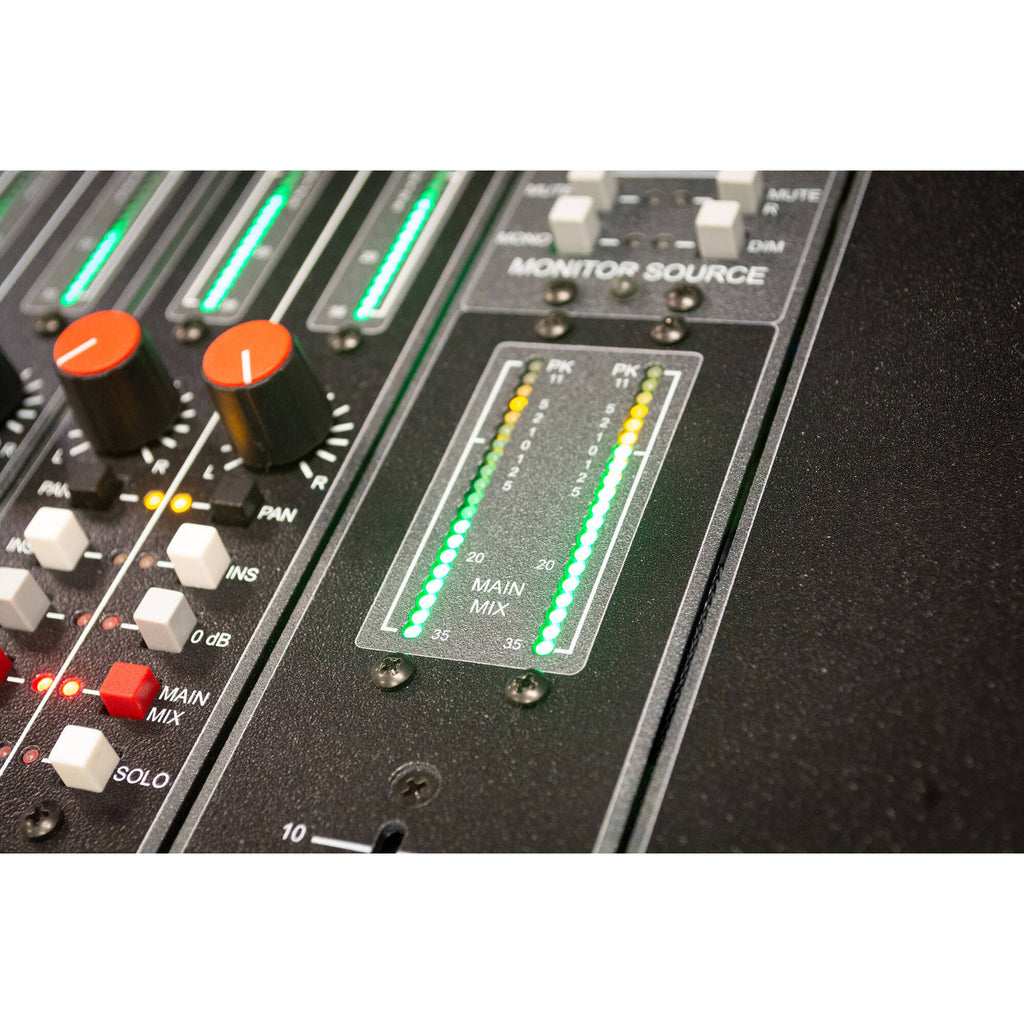

• 20-segment input meters, LEDs on every switch
• Main and alternate monitor output
• Headphone output

• Main mix bus insert point
• Balanced bus insert points
• Balanced line input
• Balanced insert points
• Balanced direct outputs

• Robust aluminum frame with large integrated cable raceways
• Clean profile with all audio, power, and network wiring, concealed in the legs if desired
• All analog audio inputs and outputs fully balanced on standard DB-25 connectors with Tascam/AES59 standard pinout, including inserts, line inputs, and channel direct outputs
• Jensen transformer balancing on microphone inputs and main stereo bus output
• Rugged construction utilizing surface-mount components on gold-plated glass-epoxy printed circuit boards
• Rigid bus/backplane on printed circuit boards?no ribbon cables
• Premium long-life conductive plastic potentiometers
• Top-quality faders with wide 15mm caps for precision feel and control
• All electronic wearproof audio switching and routing throughout
• Classic Harrison 32C 4-band EQ and filters on each channel strip
• Monitor inline channel strip architecture providing tracking/mixdown mode with capability of up to 96 inputs on mixdown
• Front-panel mic/instrument input assignable to any input channel
• LED indicator on every push-button switch
• 8 mono mix buses arranged in pairs with insert points on all 8 mix buses
• Stereo main mix bus with insert points
• 3 foldback/cue/matrix buses and outputs
• 4 mono aux buses
• 1 stereo aux bus
• Stereo solo bus
• 0 dB lock button on all faders
• Multiple external monitor inputs
• Main monitor outputs (11.1 or 7.1.4 surround capable)
• Separate nearfield monitor output
• Large meter bridge with LED illuminated analogue meters
• External high-performance ultraquiet PSU
