Hanwha Vision XNV-6012 Overview

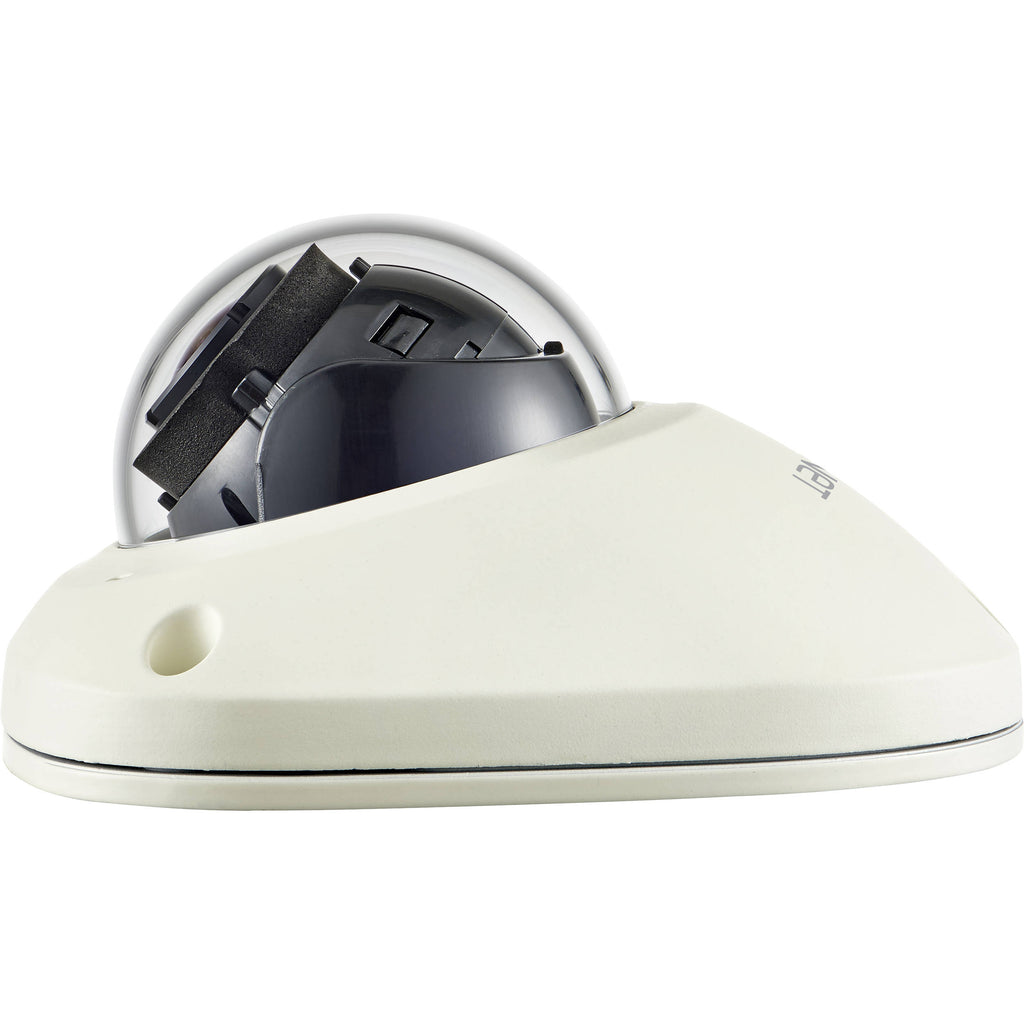

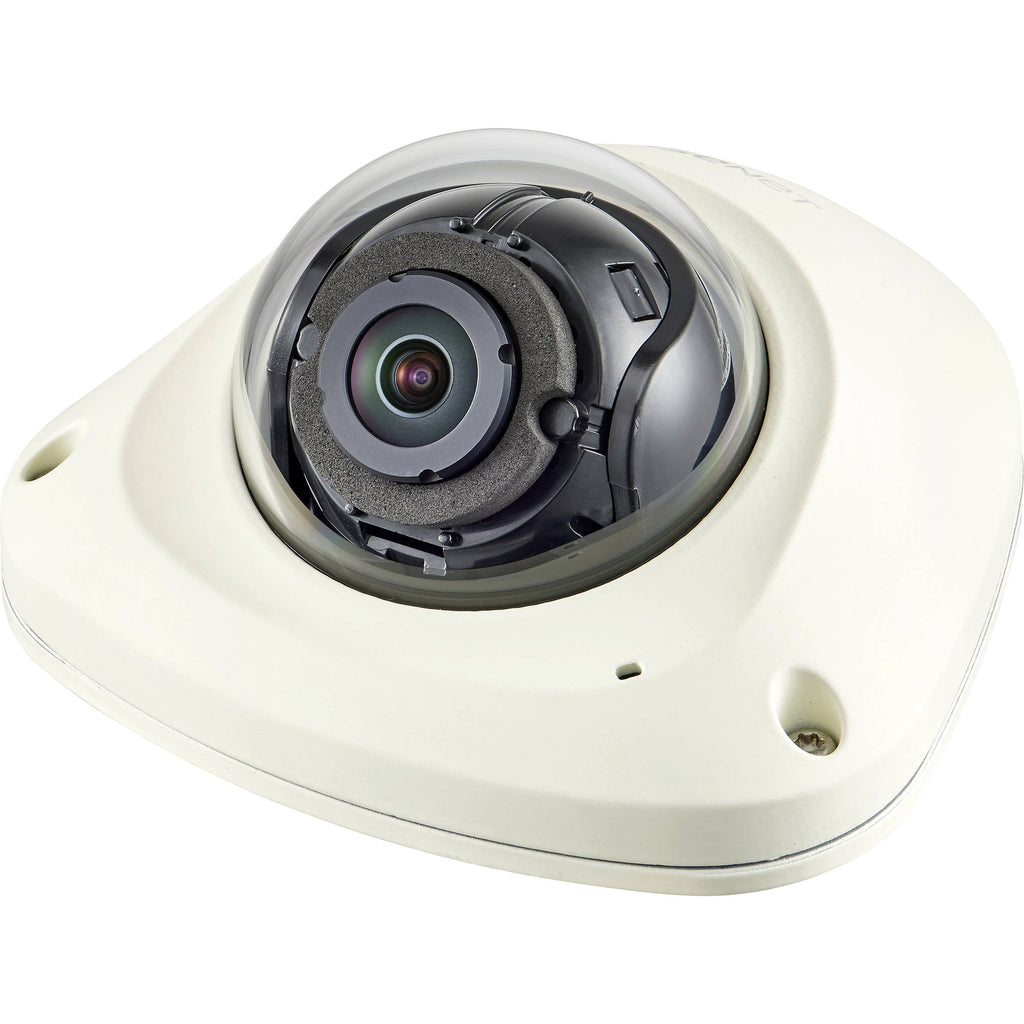

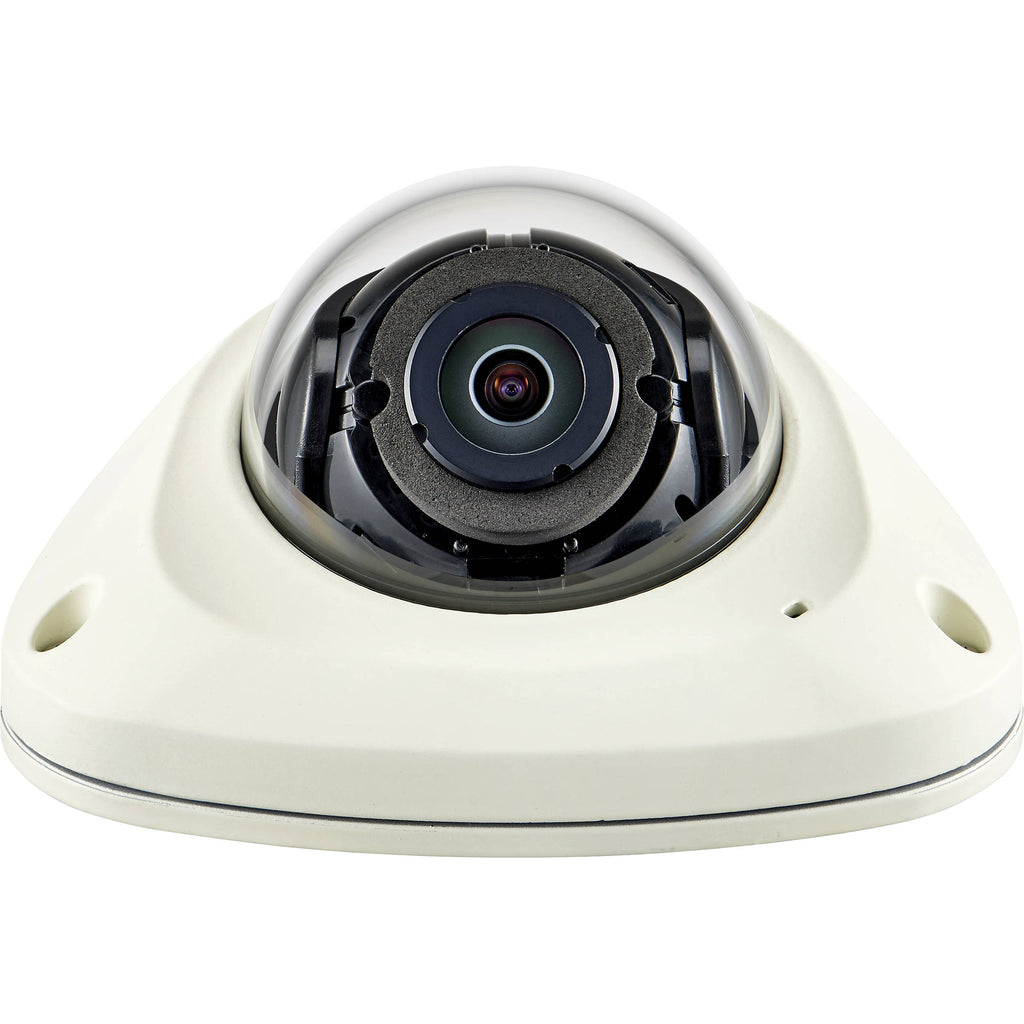

Capture 2MP video in moving vehicles without camera shake with the WiseNet X Series XNV-6012 2MP Outdoor Mobile Network Dome Camera with RJ45 connector from Hanwha Techwin. Equipped with a 1/2.8" 2MP CMOS sensor and a 2.4mm fixed lens, the XNV-6012 captures video at resolutions up to 1920 x 1080 at 60 fps in a 135.4 x 71.2? field of view. The camera has an IR cut filter and offers image enhancement features including a 150 dB wide dynamic range and automatic white balance for capturing images in varying lighting conditions.
The XNV-6012 has audio input and output connections and a built-in microphone for two-way audio communication. Moreover, it is IP66 and IK10 rated for weather and vandal resistance. Designed for easy setup, the XNV-6012 uses PoE technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
Up to 2MP (1920 x 1080) resolution
Up to 60 fps at all supported resolutions (H.265/H.264)
Color/B&W vision down to 0.04 lux at f/2.0
Built-in 2.4mm fixed lens
24x digital zoom
H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
Multiple streaming
IR cut filter for day and night vision
150 dB wide dynamic range
Defog functionality
Video and audio analytics including tamper detection, loitering detection, directional detection, defocus detection, fog detection, virtual line, enter, exit, appear, disappear, audio detection, face detection, digital auto tracking, sound classification, motion detection, and handover
Built-in microSD/SDHC/SDXC memory card slot for edge storage supports up to 256GB (microSD/SDHC/SDXC cards available separately)
Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
Integrated Lens Distortion Correction (LDC) technology
RJ45 Ethernet with PoE technology for easy, clutter-free installation
Input, output, and built-in microphone for two-way audio communication
IP66 and NEMA4X rated for outdoor use
IK10-rated vandal resistance
Items Included
- Hanwha Vision WiseNet X Series XNV-6012 2MP Outdoor Mobile Network Dome Camera (RJ45)
- Software CD
- Star-Shaped Wrench
- 2 x M4 Tapping Screws
- 2 x Plastic Anchors
- Template
- Installation Bracket
- 2 x M4 Screws for Installation Bracket
- RJ45 Waterproofing Accessory
Additional Resources
No additional resources available
Hanwha Vision XNV-6012 Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
2.4mm
|
| Field of View |
Horizontal: 135.4?
Vertical: 71.2? Diagonal: 161.6? |
| Pan/Tilt |
No
|
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45 Input/Output
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
Yes
|
Exposure Control
| Minimum Illumination |
0.04 Lux (Color)
0.04 Lux (Black and White) |
Lens
| Focal Length |
2.4mm
|
| Max Digital Zoom |
24x
|
| Field of View |
Horizontal: 135.4?
Vertical: 71.2? Diagonal: 161.6? |
| Maximum Aperture |
f/2
|
Video Capture
| Max IP Streaming |
via RJ45
1920 x 1080 up to 60.00 fps |
| Multi-View Streaming |
Yes: 10 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: -5 to 5?
Vertical: 0 to 67? |
| Pan/Tilt |
No
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
|
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, SUNAPI (HTTP API), TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC, ADPCM, G.711, G.726
|
| Built-In Microphone |
Yes
|
| External Storage Options |
Local PC, NAS
|
System Integration
| Analytics |
Abandoned Object, Audio Detection, Camera Sabotage/Tampering, Defocus Detection, Directional Detection, Entering/Exiting, Face Detection, Fog Detection, Loitering, Motion Detection, Object Removal, Sound Classification, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
Power
| Power I/O |
1x RJ45 Input/Output
|
| Power Consumption |
6.5
|
General
| Materials |
Metal
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Certifications |
UL
|
| Operating Conditions |
-22 to 131?F / -30 to 55?C up to89% Humidity
|
| Storage Conditions |
-58 to 140?F / -50 to 60?C
|
| Supported Languages |
Czech
Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Spanish Swedish Traditional Chinese Turkish |
| Mobile App Compatible |
No
|
| Dimensions (W x H x D) |
2 x 3.9 x 3.9" / 52 x 98.9 x 100 mm
|
| Weight |
0.65 lb / 295 g (Body Only)
|
