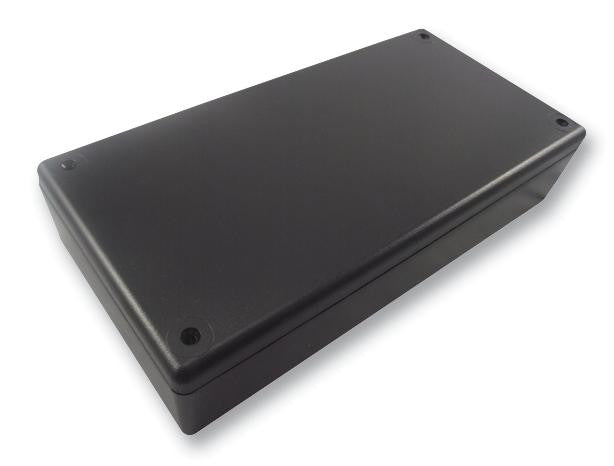

A handheld enclosure manufactured from black ABS designed to IP54. The inside of the enclosure has vertical guides and bosses for mounting PCBs. There is a 1mm deep recess on the top of the enclosure for a label or membrane keypad.
- Attractively styled and ergonomically designed for use as a "hand-held" instrument enclosure
- Molded from flame retardant ABS plastic
- Recessed top for membrane display or pad
- Lap joint construction provides protection against dust accumulation and splashing water
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure
- Designed to meet IP54
- Lid is secured with Philips machine screws, threaded into tapped integral brass bushings
- Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation
Product details
| External Depth - Imperial |
1.73" |
| Body Colour |
Black |
| External Width - Metric |
110mm |
| Enclosure Type |
Handheld |
| NEMA Rating |
- |
| External Height - Metric |
220mm |
| External Height - Imperial |
8.66" |
| External Width - Imperial |
4.33" |
| Product Range |
1599 Series |
| IP Rating |
IP54 |
| External Depth - Metric |
44mm |
| Enclosure Material |
ABS |
Other details
| Brand |
HAMMOND |
| Part Number |
1599HBK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
