Description

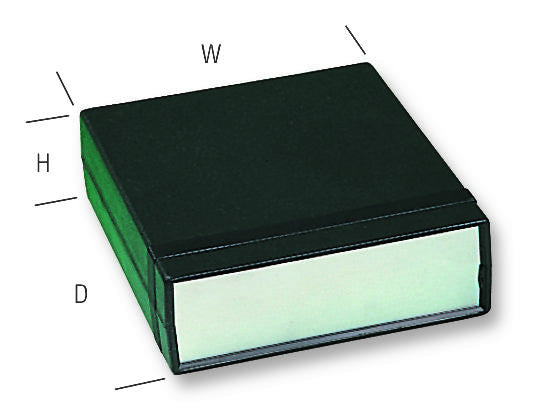

The 1598DBK is an Instrument Enclosure made of flame-retardant ABS (acrylonitrile butadiene styrene) with aluminium end panels. Front and rear panels are 1.6mm brushed aluminium with protective paper on one side. Cases halves are secured with M3 x 0.5-inch x 10mm Philips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required. It is used with desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards.
- Integral horizontal PC card mounts on Eurocard centres
- IP54 Protection rating
- Two sets of vertical 1.5mm PC board guides are moulded into case halves front and rear
Applications
Consumer Electronics, Industrial
Product details
| External Depth - Imperial | 7.09" |
| Body Colour | Black |
| External Width - Metric | 206mm |
| Enclosure Type | Instrument |
| NEMA Rating | - |
| External Height - Metric | 64mm |
| External Height - Imperial | 2.52" |
| External Width - Imperial | 8.11" |
| Product Range | - |
| IP Rating | IP54 |
| External Depth - Metric | 180mm |
| Enclosure Material | ABS |
Other details
| Brand | HAMMOND |
| Part Number | 1598DBK |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
