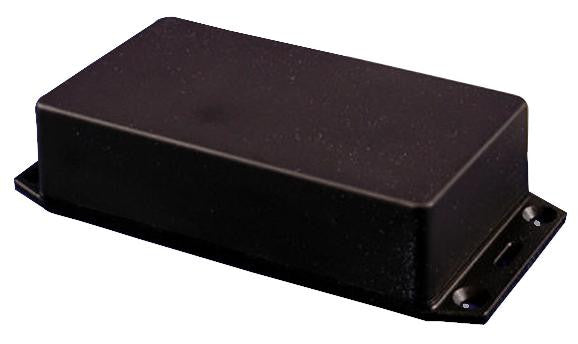

- Ideally suited for mounting printed circuit boards horizontally
- Internal sides of enclosure are smooth for easy connector installation
- Strong - tongue and groove lid to box construction provides protection against access of dust and splashing water
- Designed to meet IP54
- Liid and box both contain - molded in PC board standoffs
- Molded from easy to machine, flame retardant ABS plastic
- Stocked in satin texture black and grey
- Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings
Product details
| External Depth - Imperial |
2.32" |
| Body Colour |
Black |
| External Width - Metric |
83mm |
| Enclosure Type |
Multipurpose |
| NEMA Rating |
- |
| External Height - Metric |
123mm |
| External Height - Imperial |
4.8" |
| External Width - Imperial |
3.27" |
| Product Range |
- |
| IP Rating |
IP54 |
| External Depth - Metric |
59mm |
| Enclosure Material |
ABS |
Other details
| Brand |
HAMMOND |
| Part Number |
1591XXTFLBK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
