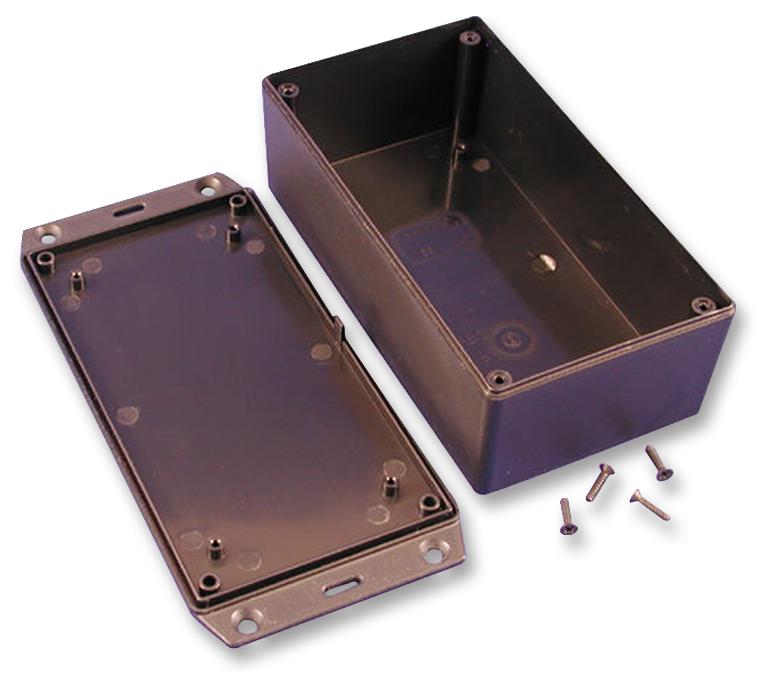

The 1591XXLSFLBK is a Multipurpose Enclosure with flanged lid, made of plastic. Ideally suited for mounting printed circuit boards horizontally, flanged lid is perfect for wall or shelf mounting and enclosure security. Internal sides of enclosure are smooth for easy connector installation, moulded from easy to machine, economical black plastic with a satin texture.
- Strong tongue and groove lid to box construction
- Provides protection against access of dust and splashing water
- Lid and box both having moulded in PC board standoffs
Applications
Industrial
Product details
| Enclosure Type |
Multipurpose |
| Enclosure Material |
Plastic |
| External Height - Metric |
87mm |
| External Width - Metric |
57mm |
| External Depth - Metric |
39mm |
| IP Rating |
IP54 |
| Body Colour |
Black |
| NEMA Rating |
- |
| External Height - Imperial |
3.43" |
| External Width - Imperial |
2.24" |
| External Depth - Imperial |
1.54" |
| Product Range |
- |
Other details
| Brand |
HAMMOND |
| Part Number |
1591XXLSFLBK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
