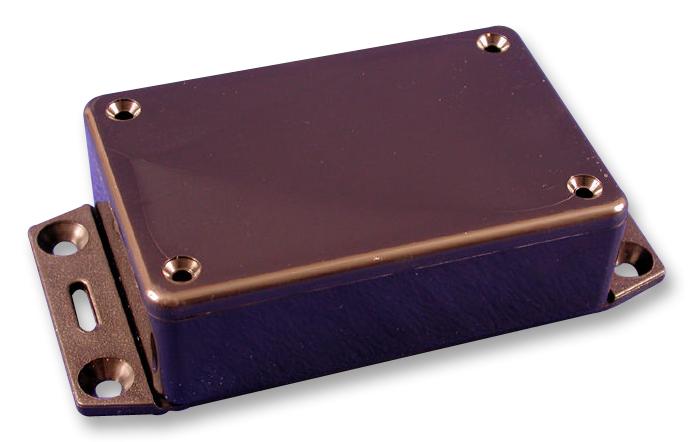

The 1591MF2BK is a multi-purpose Enclosure made of plastic fire retardant ABS with bottom flange. It is ideally suited for mounting printed circuit boards. The lap joint construction provides protection against access of dust and splashing water. The flanged feet are perfect for wall or shelf mounting where ability to easily access enclosure is required for access to lid screws.
- Integral card guides accept 1.5mm PC cards
- Lid is secured with M3 x 10mm Philips machine screws, threaded into integral brass bushings
Applications
Industrial
Product details
| Enclosure Type |
Multipurpose |
| Enclosure Material |
ABS |
| External Height - Metric |
26mm |
| External Width - Metric |
56mm |
| External Depth - Metric |
85mm |
| IP Rating |
IP54 |
| Body Colour |
Black |
| NEMA Rating |
- |
| External Height - Imperial |
1.02" |
| External Width - Imperial |
2.2" |
| External Depth - Imperial |
3.35" |
| Product Range |
- |
Other details
| Brand |
HAMMOND |
| Part Number |
1591MF2BK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
