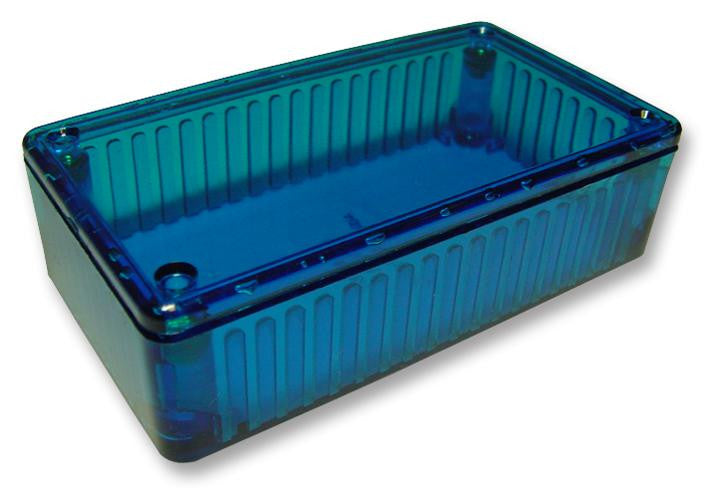

- Ice blue translucent polycarbonate enclosure
- Totally transparent to blue, white and near white LEDs, readouts and displays
- Integral card guide accepts 1.5mm (0.062") PC cards
- Designed to meet IP54
- Flammability rating of UL 94V-0
- Lid secured with M3 x 10mm Philips screws
Product details
| External Depth - Imperial |
1.22" |
| Body Colour |
Blue |
| External Width - Metric |
62mm |
| Enclosure Type |
Multipurpose |
| NEMA Rating |
- |
| External Height - Metric |
112mm |
| External Height - Imperial |
4.4" |
| External Width - Imperial |
2.4" |
| Product Range |
T Series |
| IP Rating |
IP54 |
| External Depth - Metric |
31mm |
| Enclosure Material |
Polycarbonate |
Other details
| Brand |
HAMMOND |
| Part Number |
1591BTBU |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
