| ₹ 2613.6 includes GST and import duties. | |
| B2B customers can avail ₹ 398.57 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |

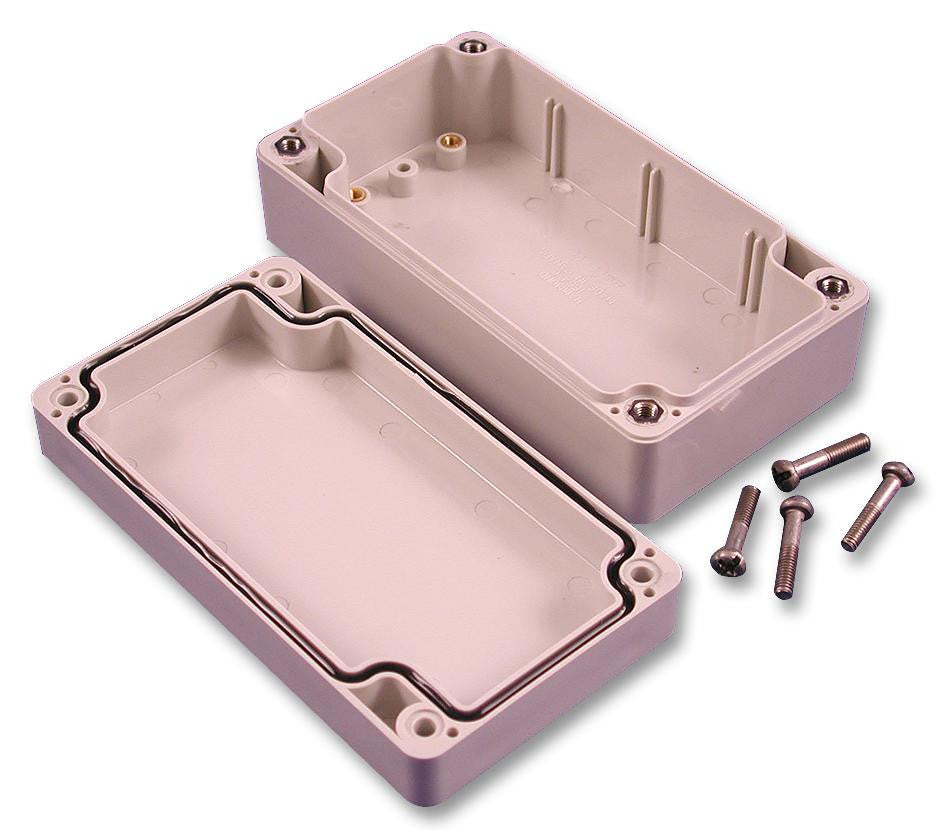

Description
- Ideally suited for mounting printed circuit boards or DIN rail mounted components
- Manufactured from general purpose ABS plastic which carries a flammability rating of UL94 HB
- Light grey in colour (RAL7035)
- Gasketed lid with "tongue and groove" construction, protecting against access of oil, dust and water
- Gasket is factory poured using high temperature UL listed silcon gasket material
- Designed to meet IP66 and NEMA 4, 4X, 12 and 13 ratings
- Lid secured with self captivating M4 stainless steel machine screws (included)
- Lid screws threaded into integral stainless steel bushings
- Threaded M3 internal brass inserts and/or standoffs designed for M3.5 or #6 self tapping screws
- Vertical P.C. card guides are moulded
- Internal DIN rail mounting tabs
Product details
| External Depth - Imperial | 3.5" |
| Body Colour | Grey |
| External Width - Metric | 90mm |
| Enclosure Type | Multipurpose |
| NEMA Rating | NEMA 4, 4X, 12, 13 |
| External Height - Metric | 160mm |
| External Height - Imperial | 6.3" |
| External Width - Imperial | 3.5" |
| Product Range | - |
| IP Rating | IP66 |
| External Depth - Metric | 90mm |
| Enclosure Material | ABS |
Other details
| Brand | HAMMOND |
| Part Number | 1554KGY |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2561.33 |
| 3-5 | ₹ 2535.19 |
| 5-10 | ₹ 2482.92 |
| 10+ | ₹ 2430.65 |
Bulk discount will be automatically applied during checkout based on quantity.
