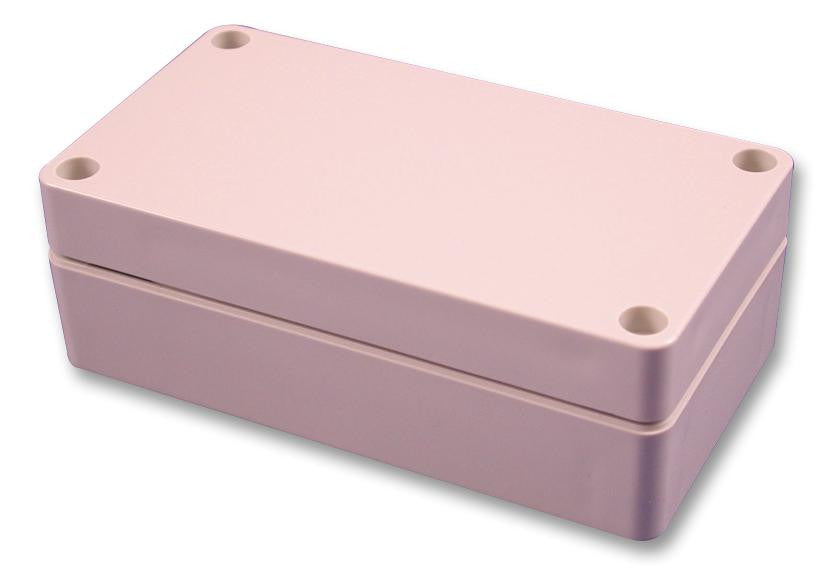

- Ideally suited for mounting printed circuit boards or DIN rail mounted components
- Material - Polycarbonate
- Color is a light gray
- Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil
- Gasket is factory poured using high temperature U.L. listed - silicone rubber gasket material
- Designed to meet NEMA 4, 4X, 12 & 13 ratings
- Lid is secured with self captivating - M4 stainless steel machine screws
Product details
| External Depth - Imperial |
2.4" |
| Body Colour |
Grey |
| External Width - Metric |
90mm |
| Enclosure Type |
Multipurpose |
| NEMA Rating |
NEMA 4, 4X |
| External Height - Metric |
160mm |
| External Height - Imperial |
6.3" |
| External Width - Imperial |
3.55" |
| Product Range |
- |
| IP Rating |
IP67 |
| External Depth - Metric |
60mm |
| Enclosure Material |
Polycarbonate |
Other details
| Brand |
HAMMOND |
| Part Number |
1554J2GY |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| 3D Product Image EN |
|
